Multi-function Display (MFD) System: Wiring Diagram

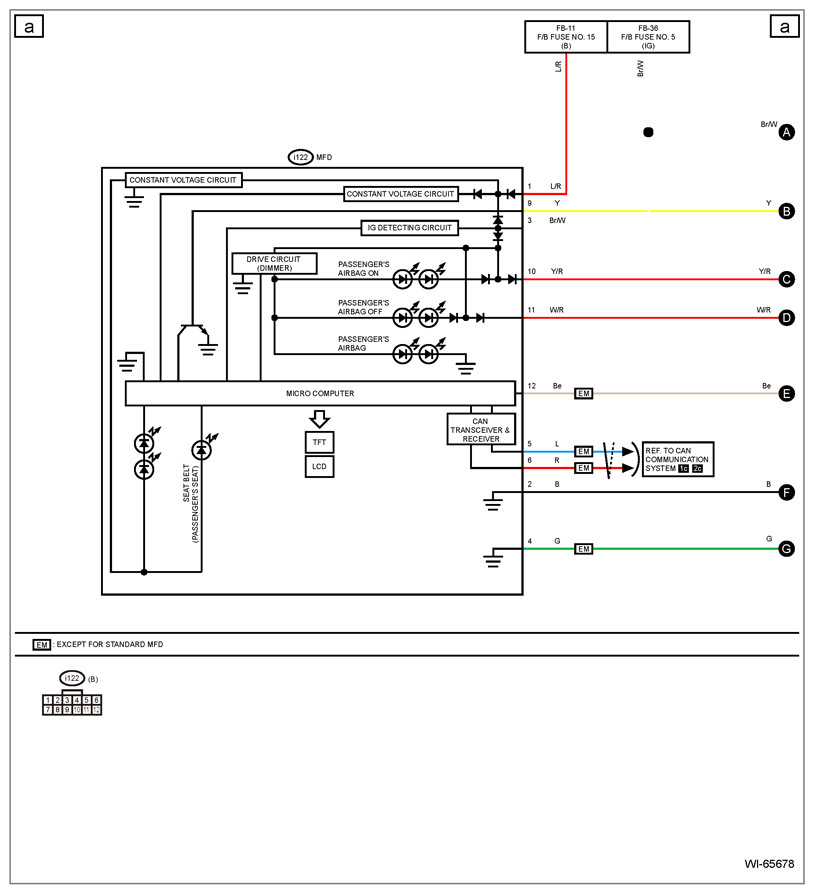

Fig 1: Multi-Function Display System Wiring Diagram (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

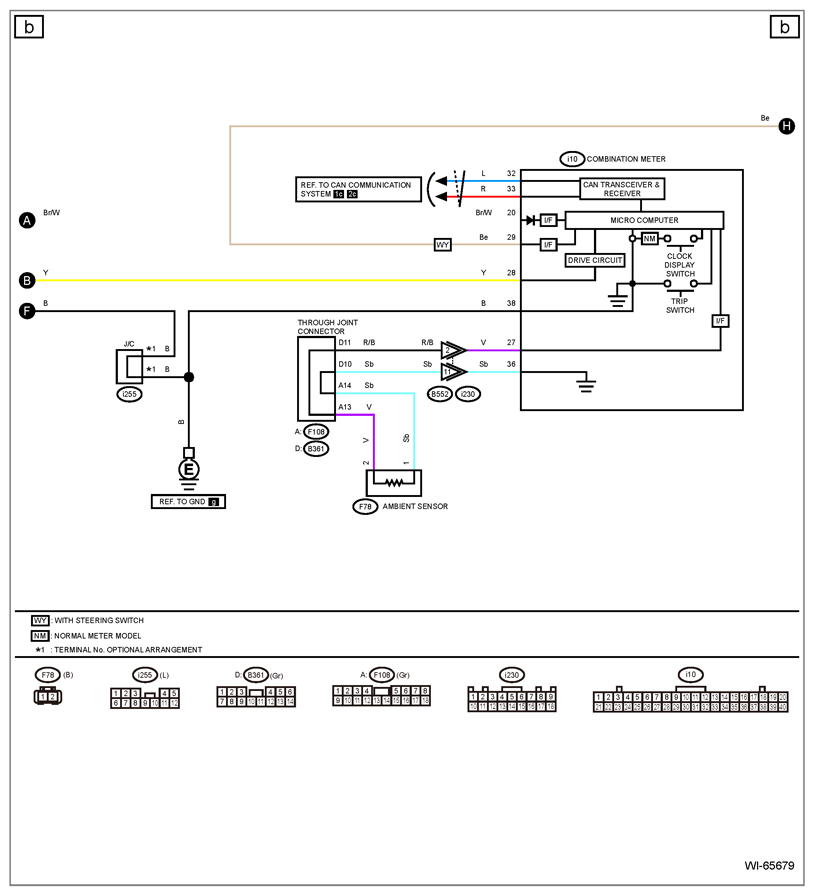

Fig 2: Multi-Function Display System Wiring Diagram (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

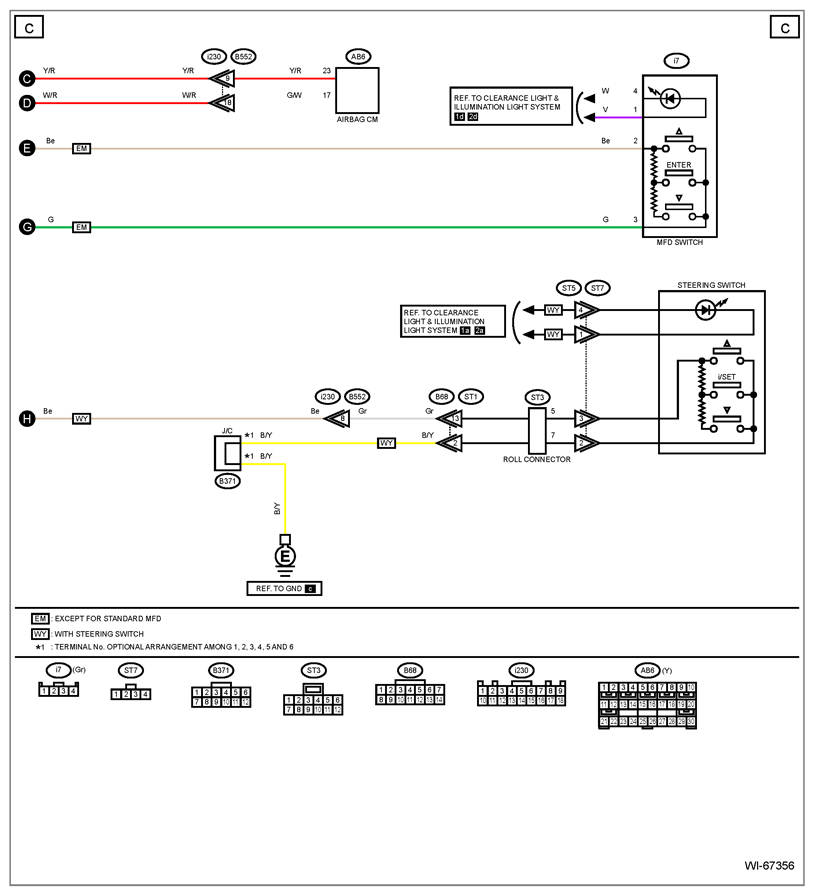

Fig 3: Multi-Function Display System Wiring Diagram (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
