Keyless Entry System: Wiring Diagram

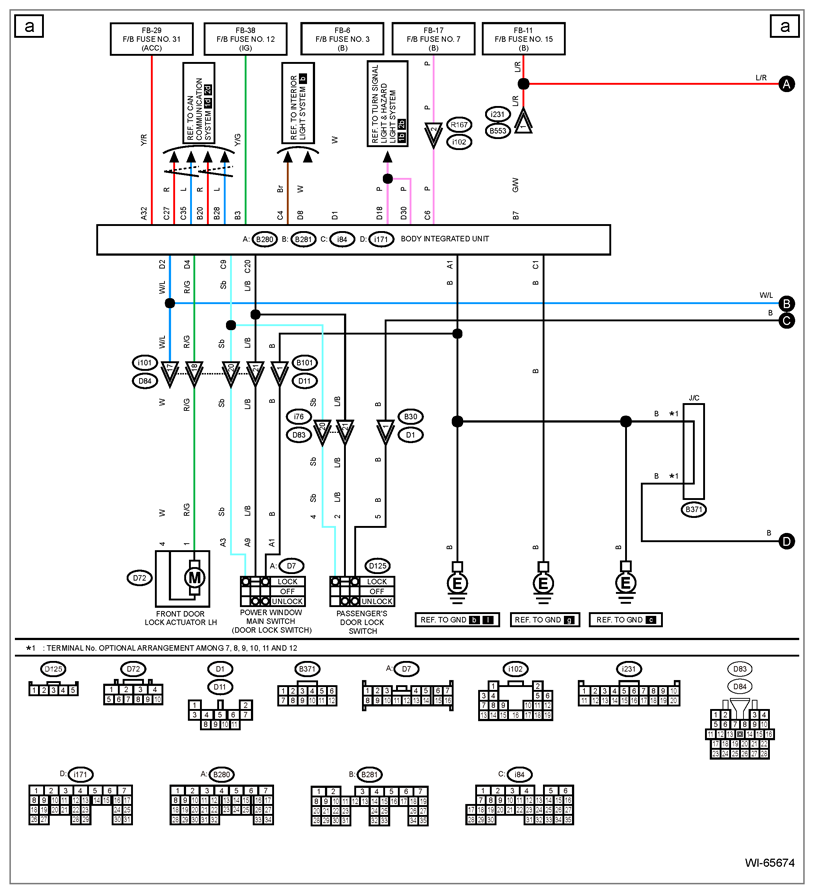

Fig 1: Keyless Entry System Wiring Diagram (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

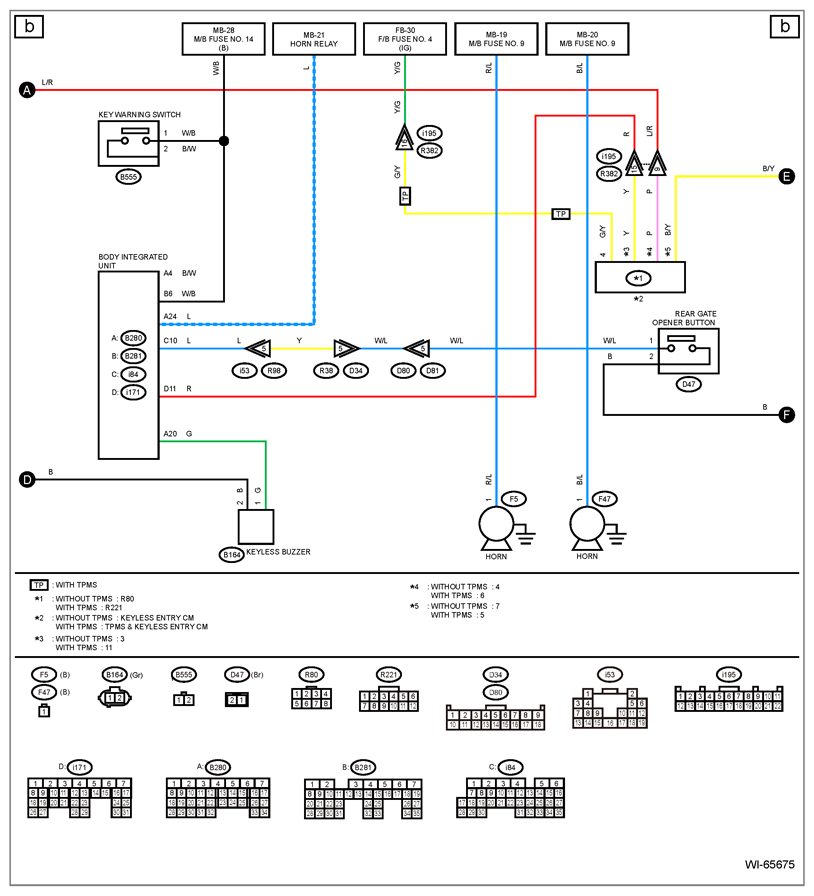

Fig 2: Keyless Entry System Wiring Diagram (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

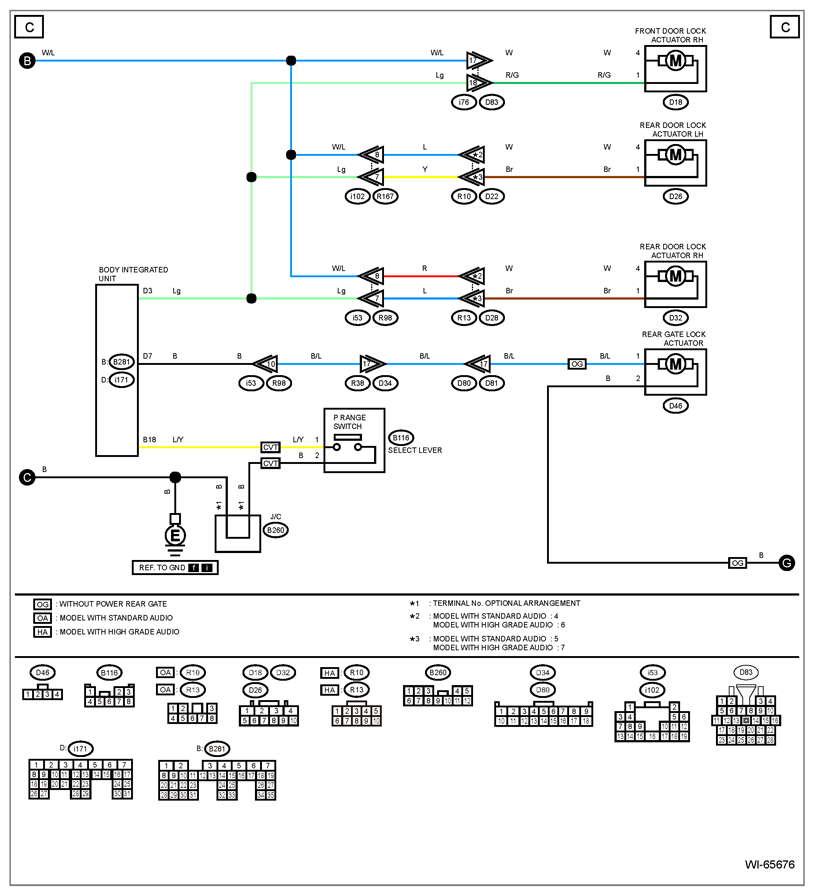

Fig 3: Keyless Entry System Wiring Diagram (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

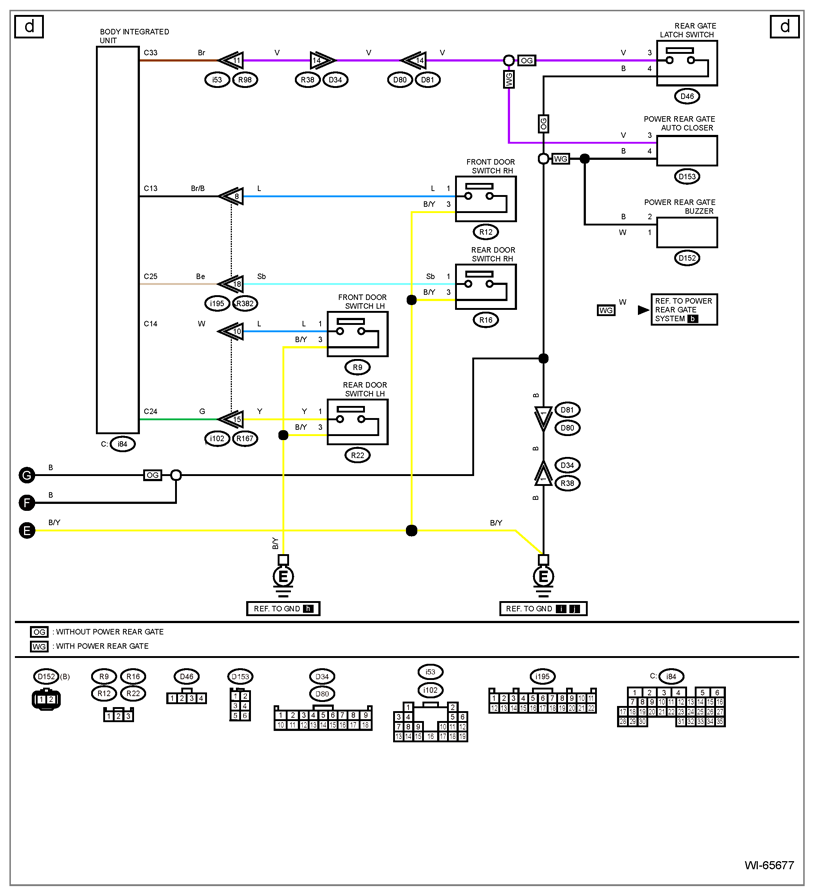

Fig 4: Keyless Entry System Wiring Diagram (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
