Home >> Subaru >> 2017 >> Forester 2.0XT Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations >> Immobilizer System >> Wiring Diagram >> Without Push Button Start

Without Push Button Start

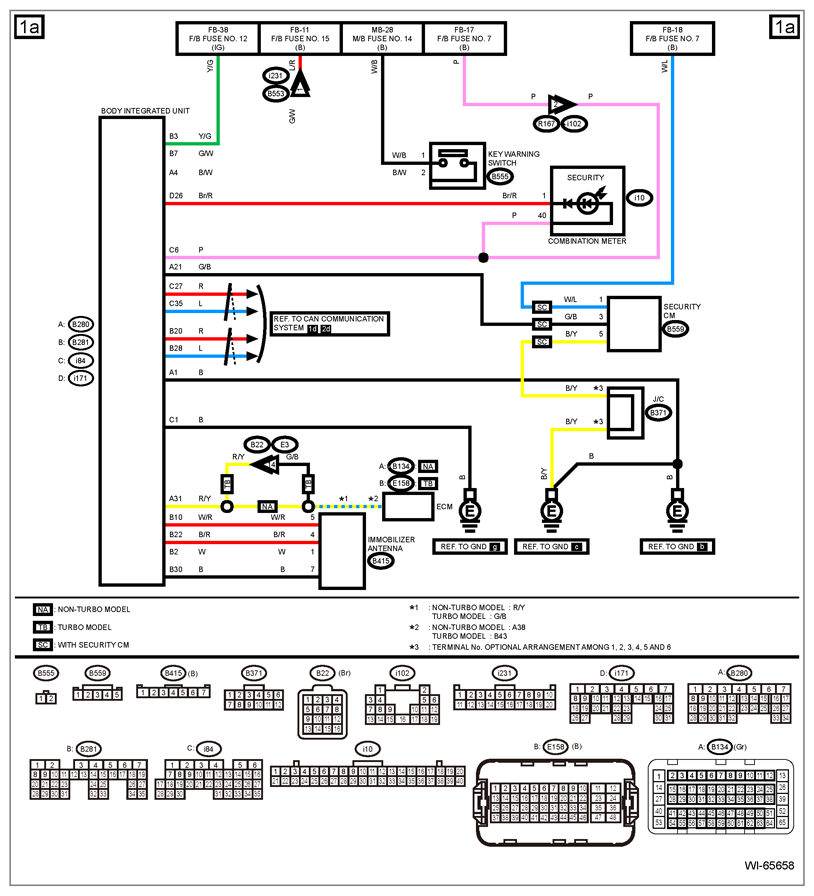

Fig 1: Immobilizer System Without Push Button Start Wiring Diagram

G11272430

Courtesy of SUBARU OF AMERICA, INC.
