With Push Button Start

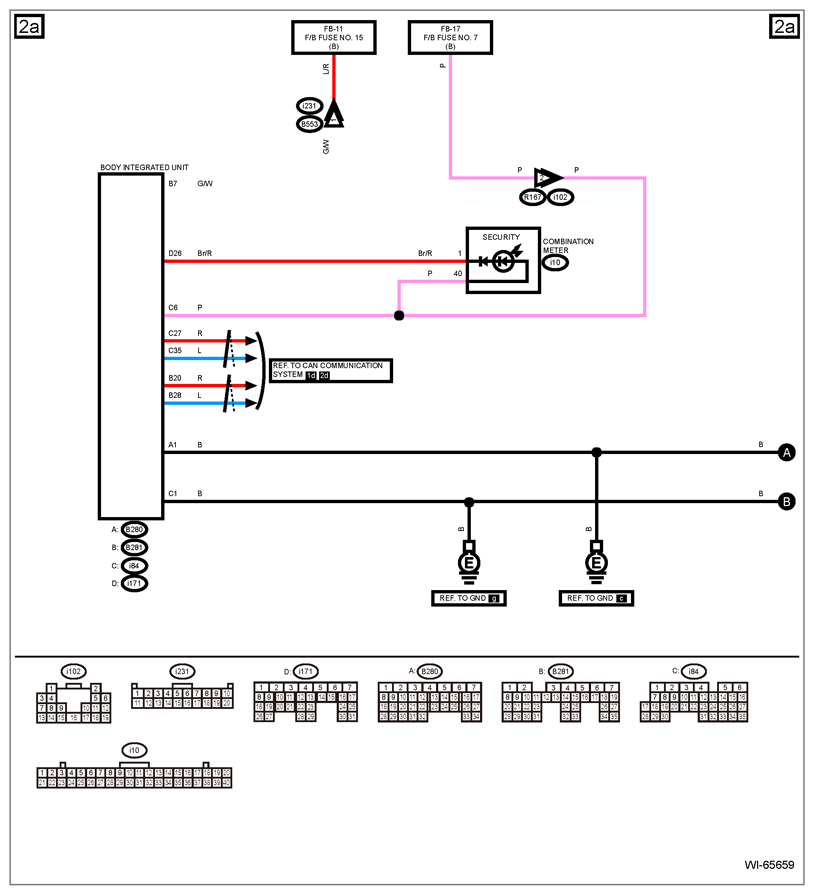

Fig 1: Immobilizer System With Push Button Start Wiring Diagram (1 Of 3)
G11272431Courtesy of SUBARU OF AMERICA, INC.

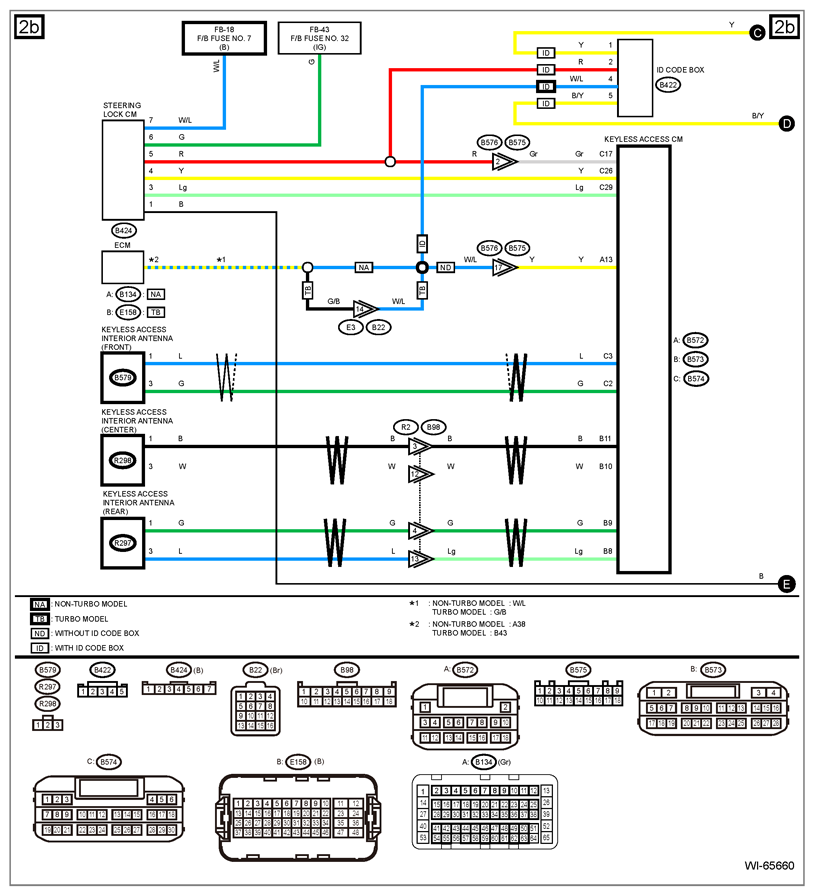

Fig 2: Immobilizer System With Push Button Start Wiring Diagram (2 Of 3)
G11272432Courtesy of SUBARU OF AMERICA, INC.

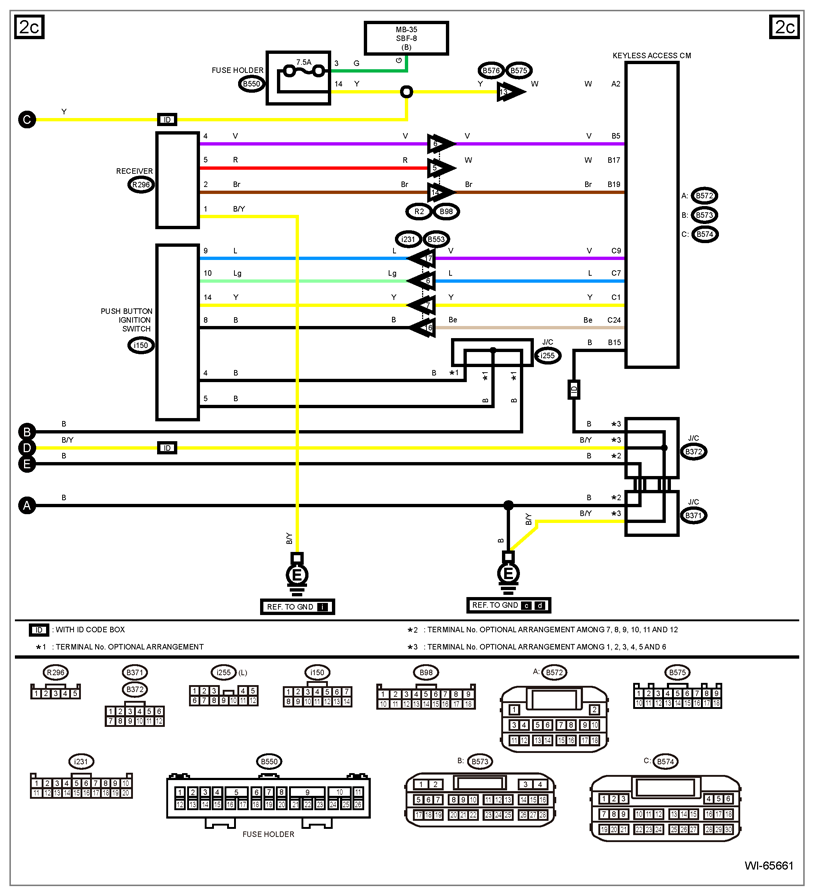

Fig 3: Immobilizer System With Push Button Start Wiring Diagram (3 Of 3)
G11272433Courtesy of SUBARU OF AMERICA, INC.
