OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Headlight System
>>
Wiring Diagram
>>
Led Model
Led Model

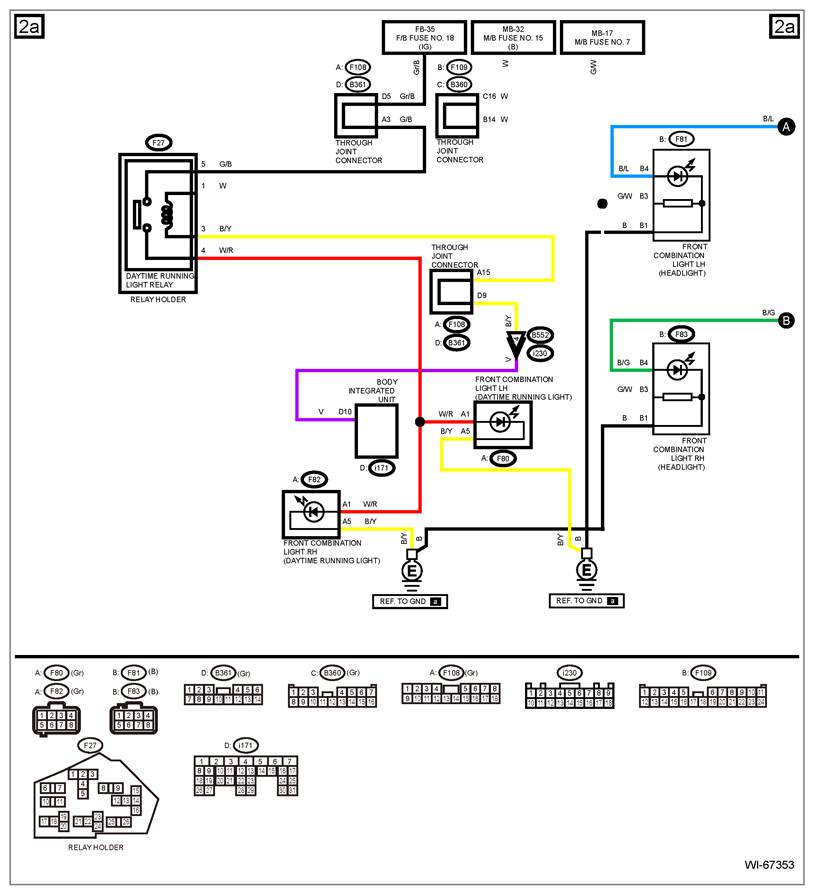

Fig 1: LED Model Headlight System Wiring Diagram (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

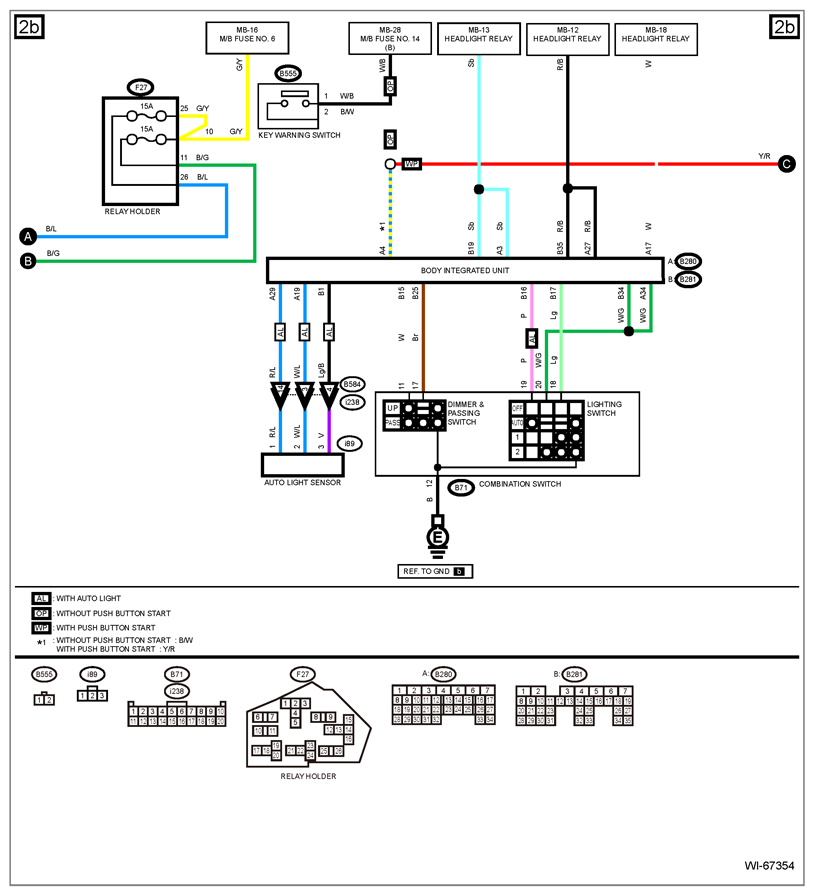

Fig 2: LED Model Headlight System Wiring Diagram (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

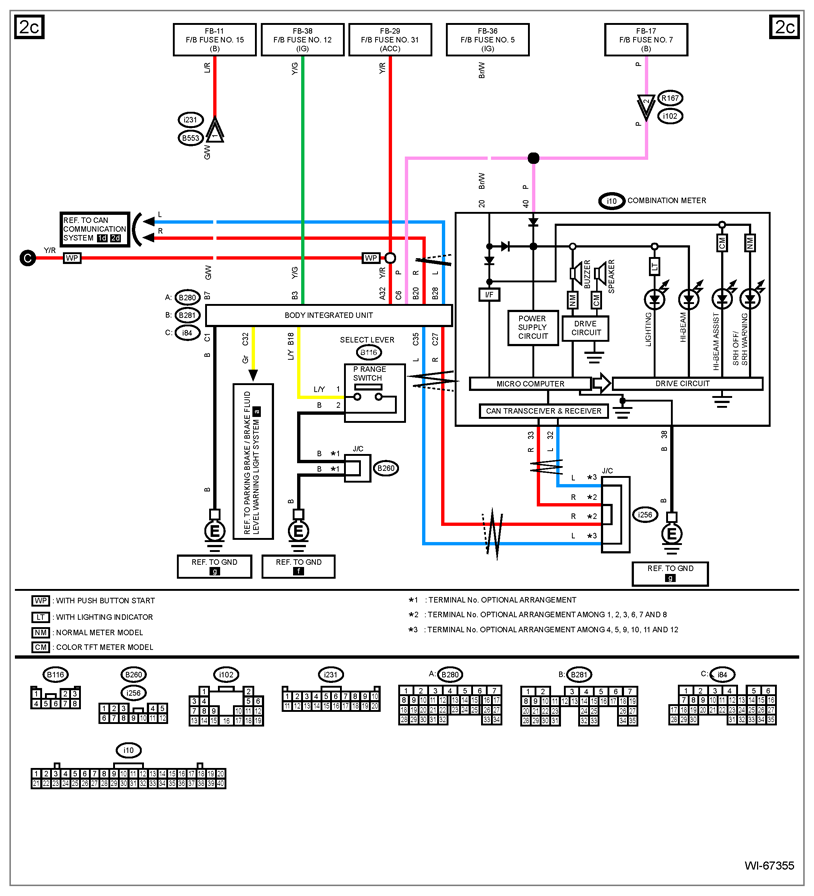

Fig 3: LED Model Headlight System Wiring Diagram (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
