Halogen Model

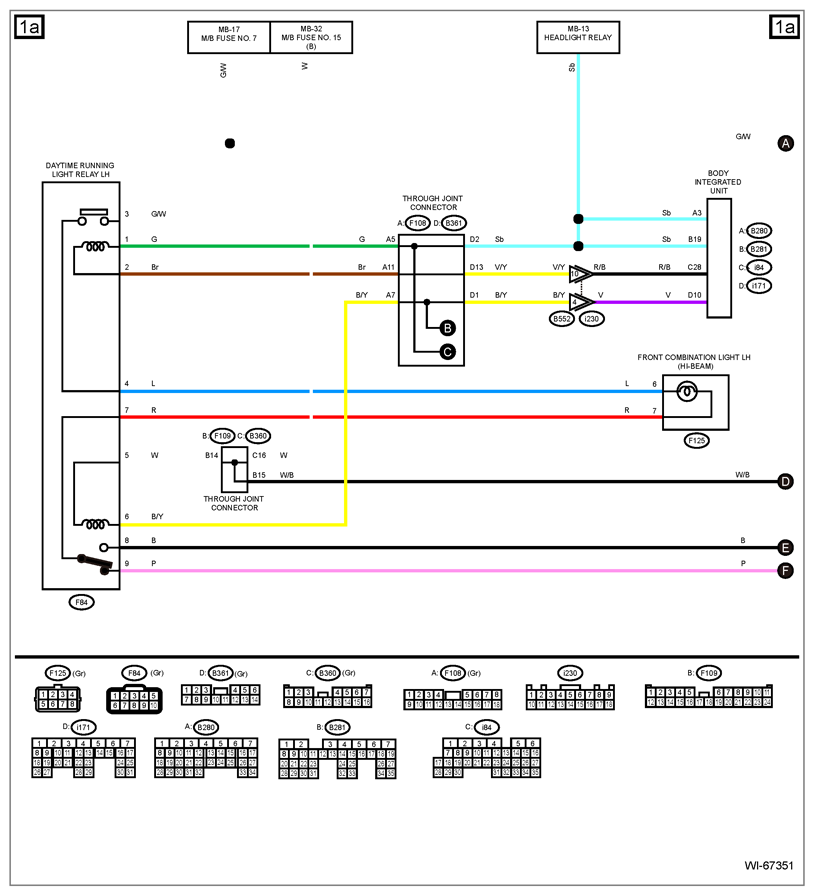

Fig 1: Halogen Model Headlight System Wiring Diagram (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

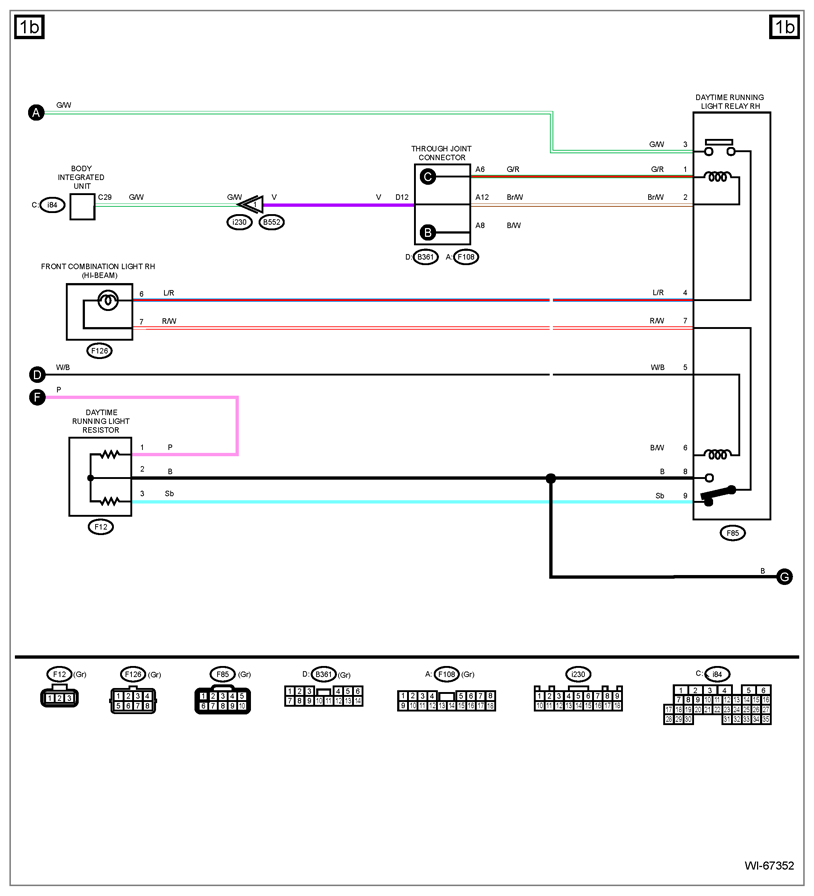

Fig 2: Halogen Model Headlight System Wiring Diagram (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

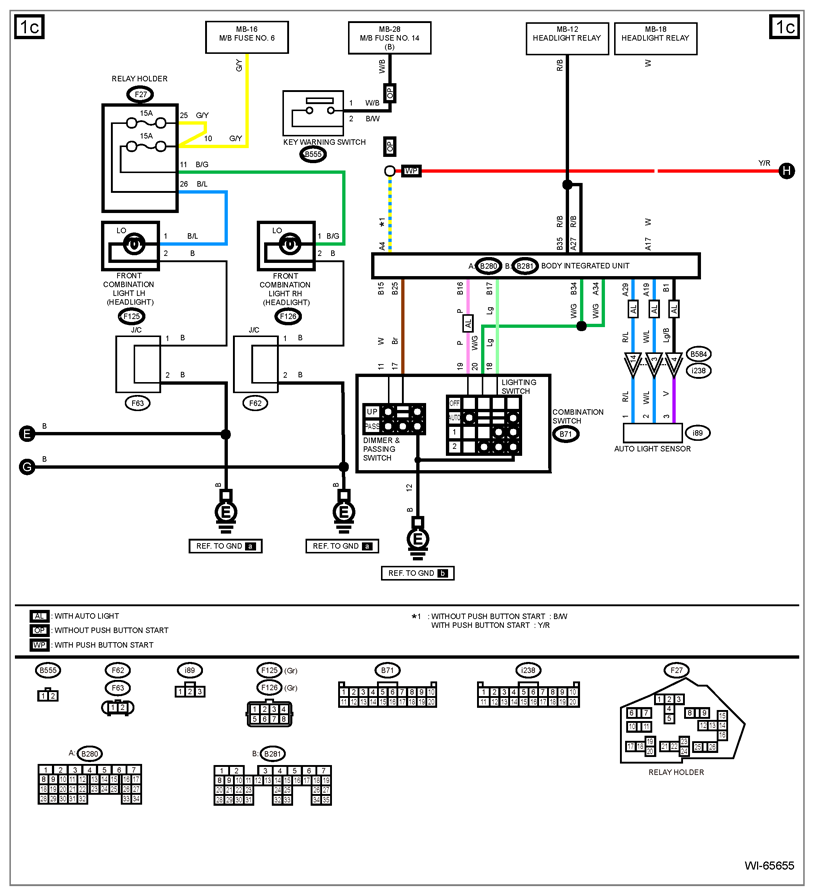

Fig 3: Halogen Model Headlight System Wiring Diagram (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

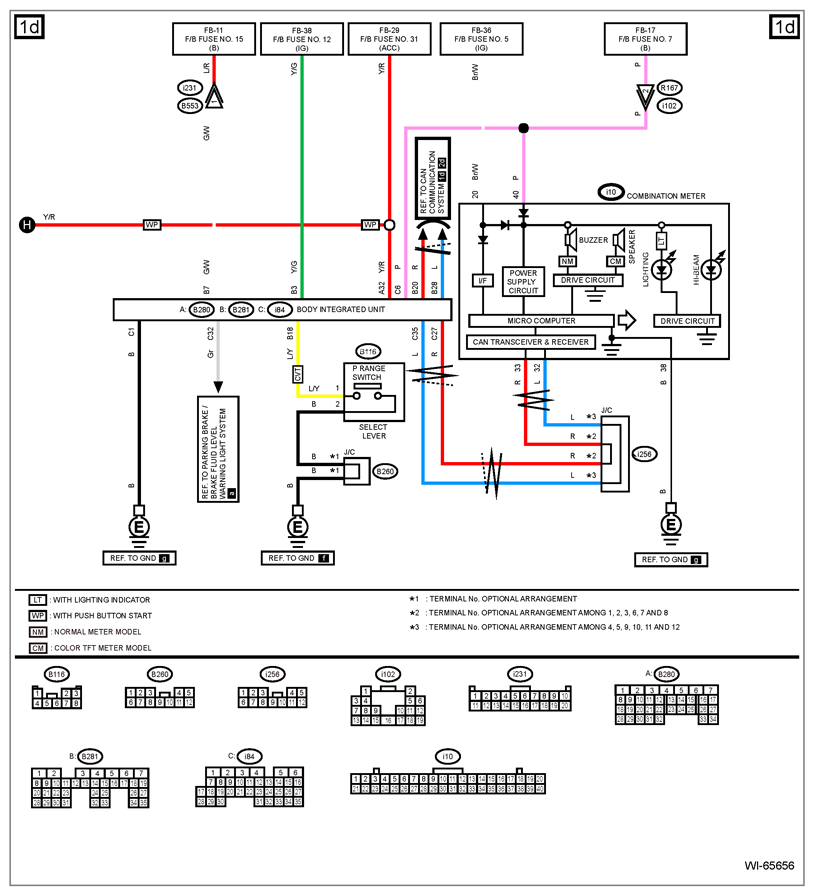

Fig 4: Halogen Model Headlight System Wiring Diagram (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
