Harness Components Location: Location

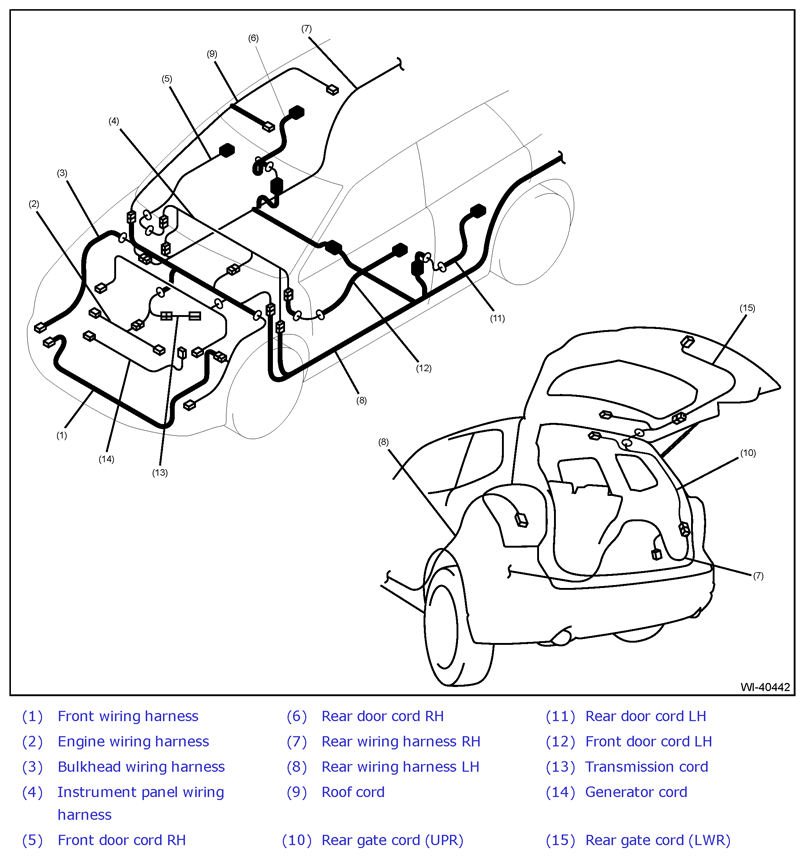

Fig 1: Identifying Wiring Harness Components

G11272577

Courtesy of SUBARU OF AMERICA, INC.
