Ground Circuit: Wiring Diagram

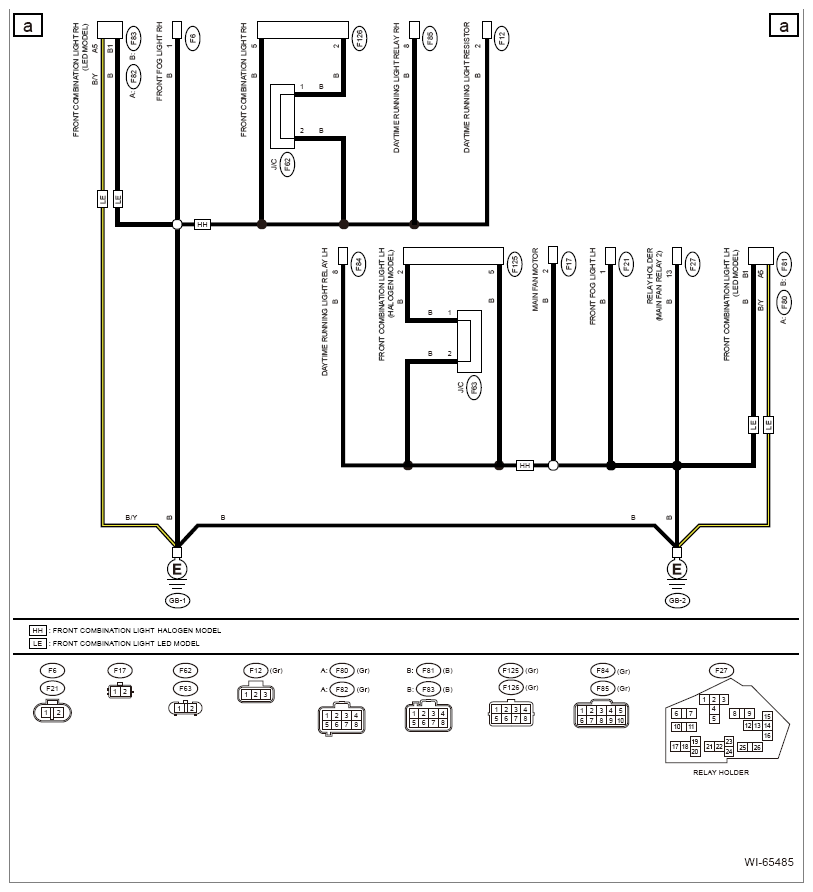

Fig 1: Ground Circuit Wiring Diagram (1 Of 12)

G11272218

Courtesy of SUBARU OF AMERICA, INC.

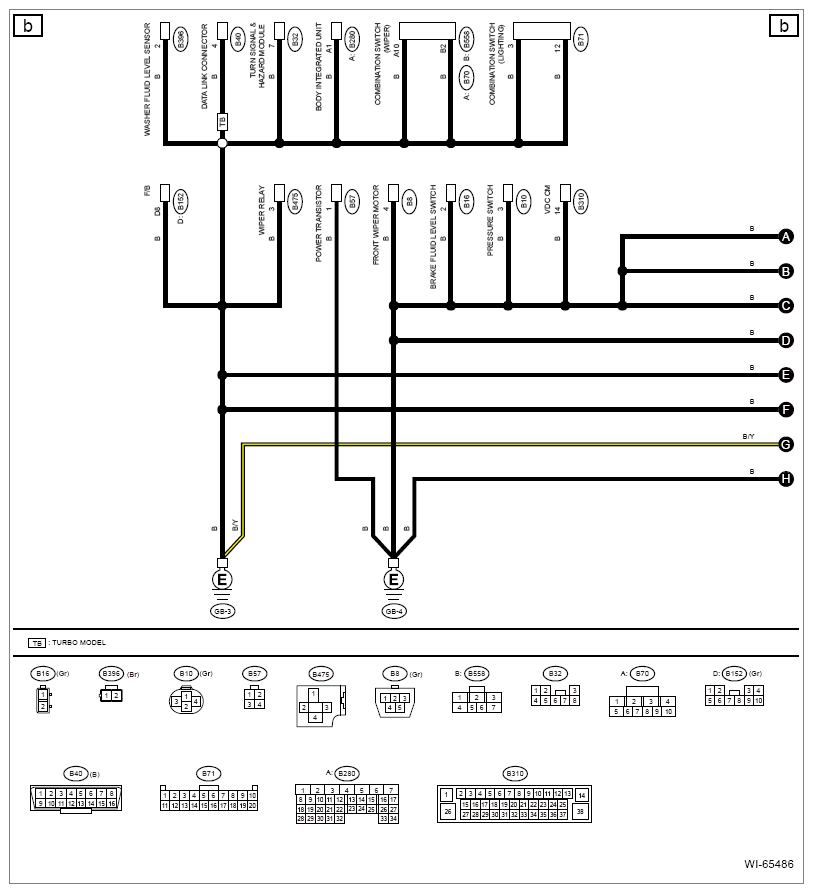

Fig 2: Ground Circuit Wiring Diagram (2 Of 12)

G11272219

Courtesy of SUBARU OF AMERICA, INC.

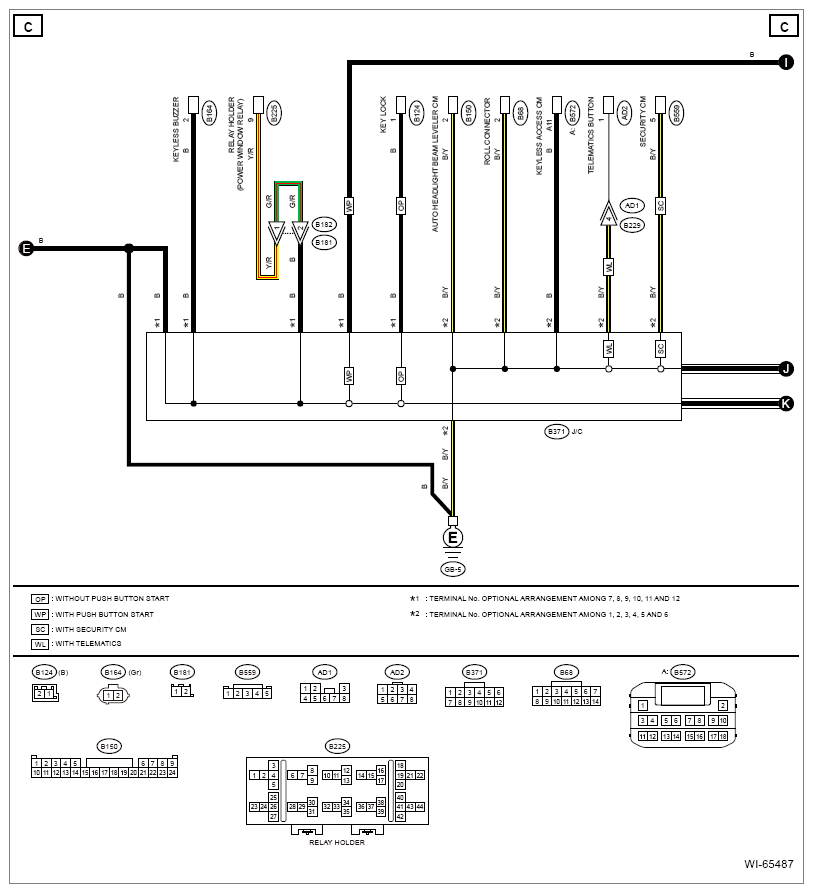

Fig 3: Ground Circuit Wiring Diagram (3 Of 12)

G11272220

Courtesy of SUBARU OF AMERICA, INC.

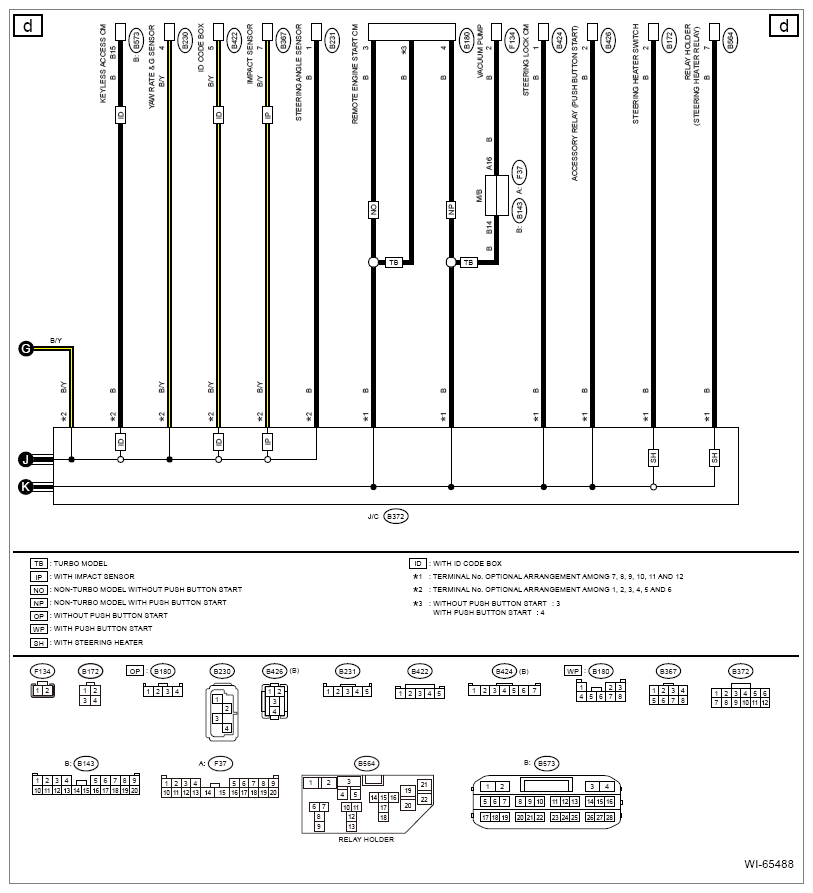

Fig 4: Ground Circuit Wiring Diagram (4 Of 12)

G11272221

Courtesy of SUBARU OF AMERICA, INC.

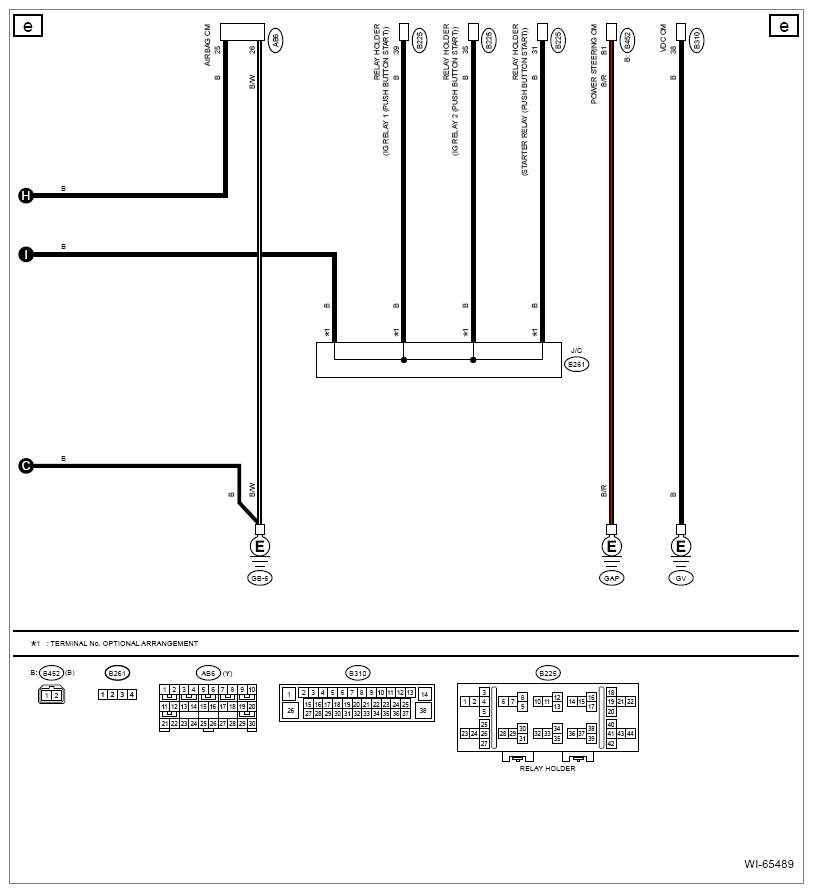

Fig 5: Ground Circuit Wiring Diagram (5 Of 12)

G11272222

Courtesy of SUBARU OF AMERICA, INC.

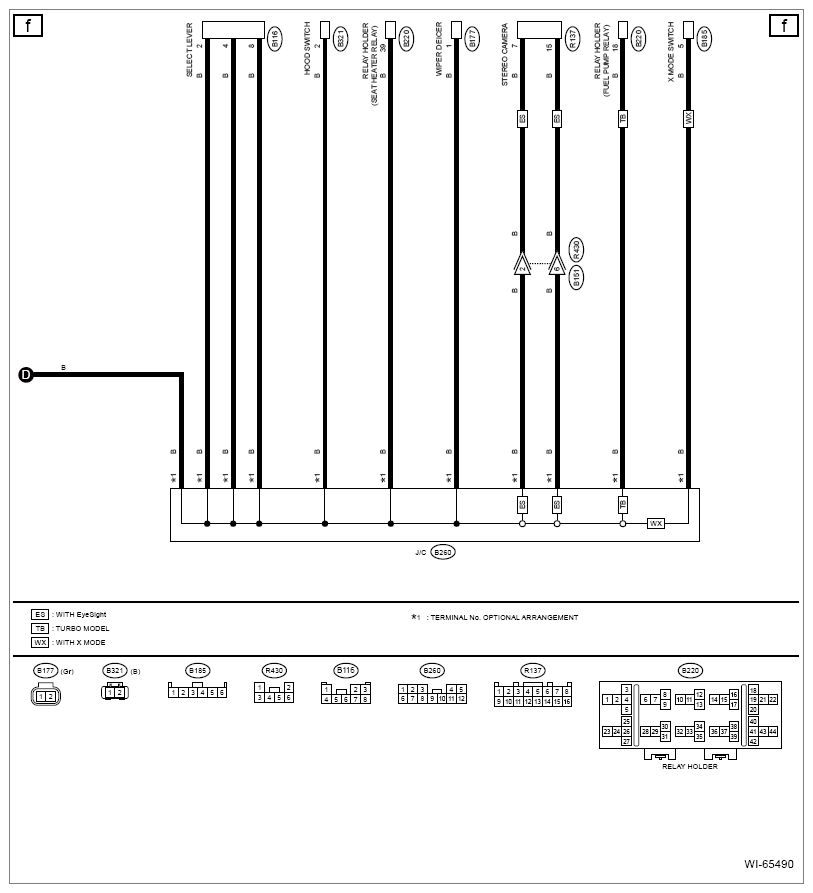

Fig 6: Ground Circuit Wiring Diagram (6 Of 12)

G11272223

Courtesy of SUBARU OF AMERICA, INC.

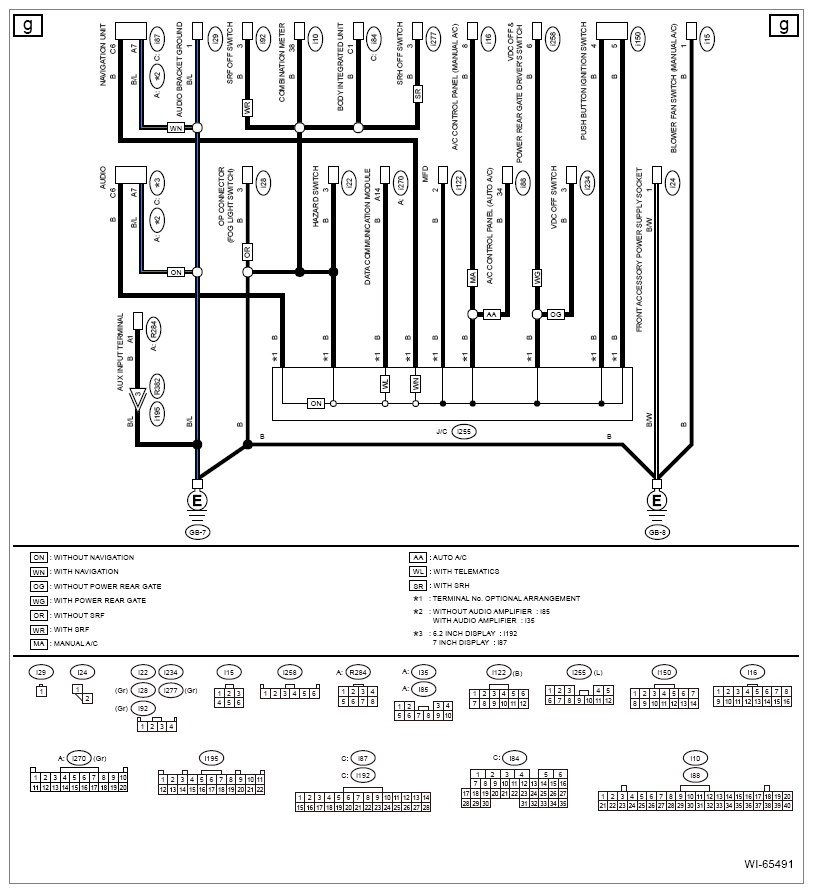

Fig 7: Ground Circuit Wiring Diagram (7 Of 12)

G11272224

Courtesy of SUBARU OF AMERICA, INC.

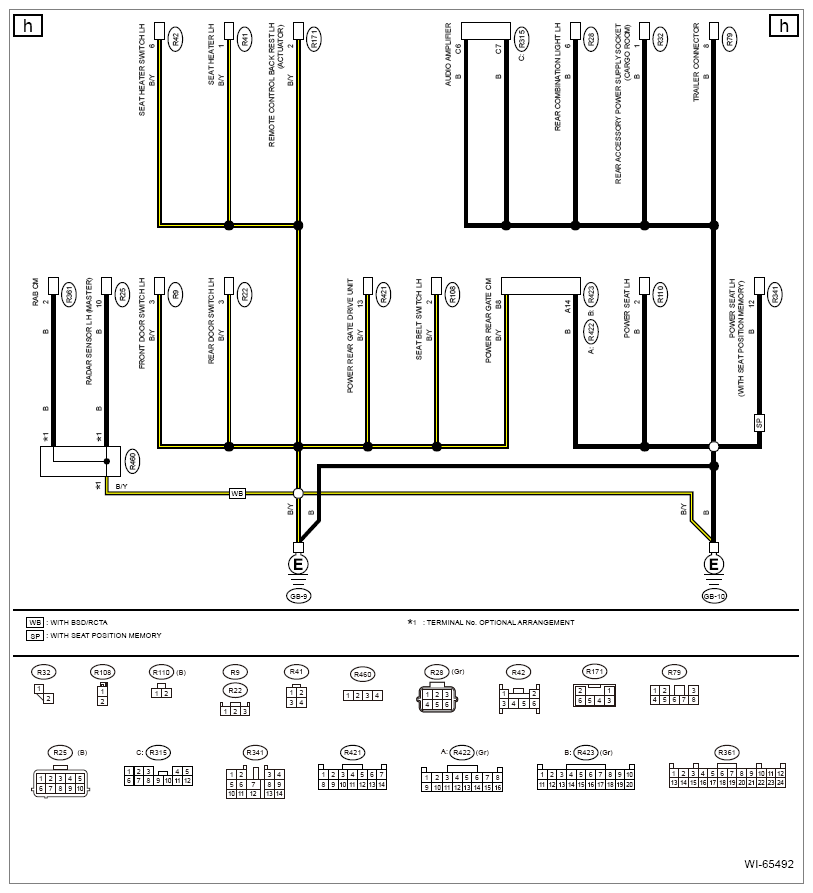

Fig 8: Ground Circuit Wiring Diagram (8 Of 12)

G11272225

Courtesy of SUBARU OF AMERICA, INC.

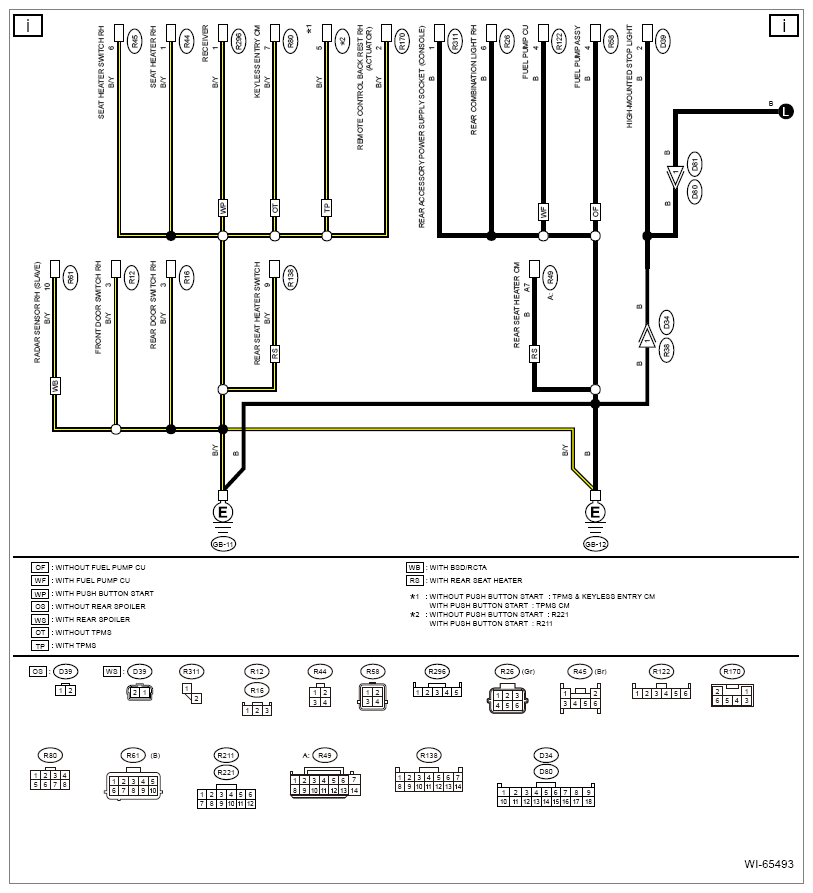

Fig 9: Ground Circuit Wiring Diagram(9 Of 12)

G11272226

Courtesy of SUBARU OF AMERICA, INC.

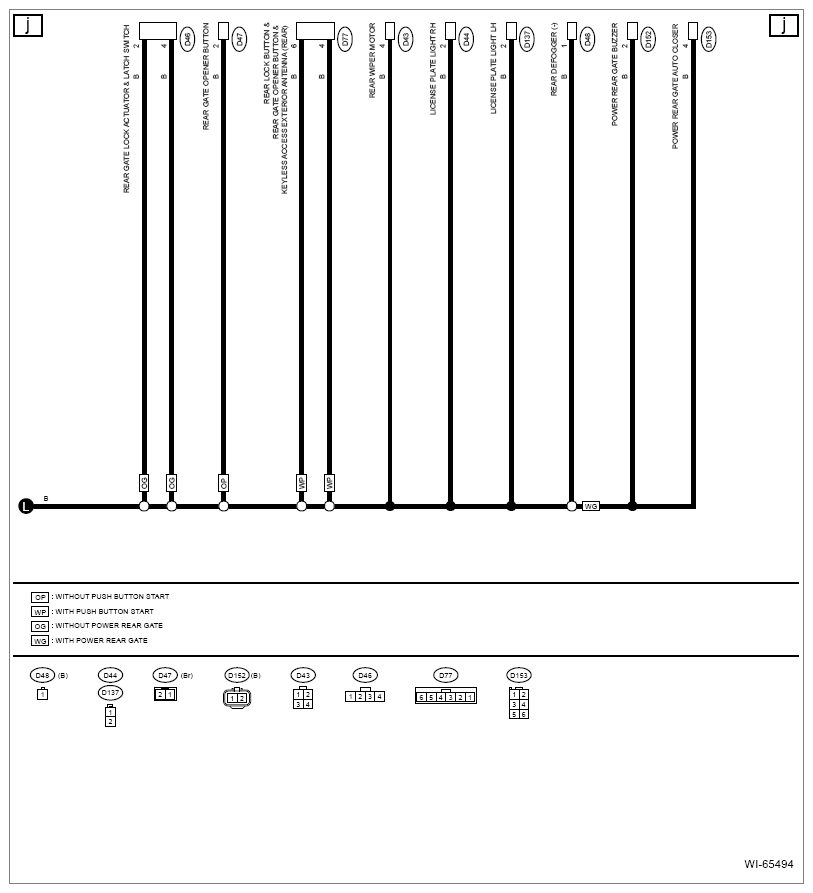

Fig 10: Ground Circuit Wiring Diagram(10 Of 12)

G11272227

Courtesy of SUBARU OF AMERICA, INC.

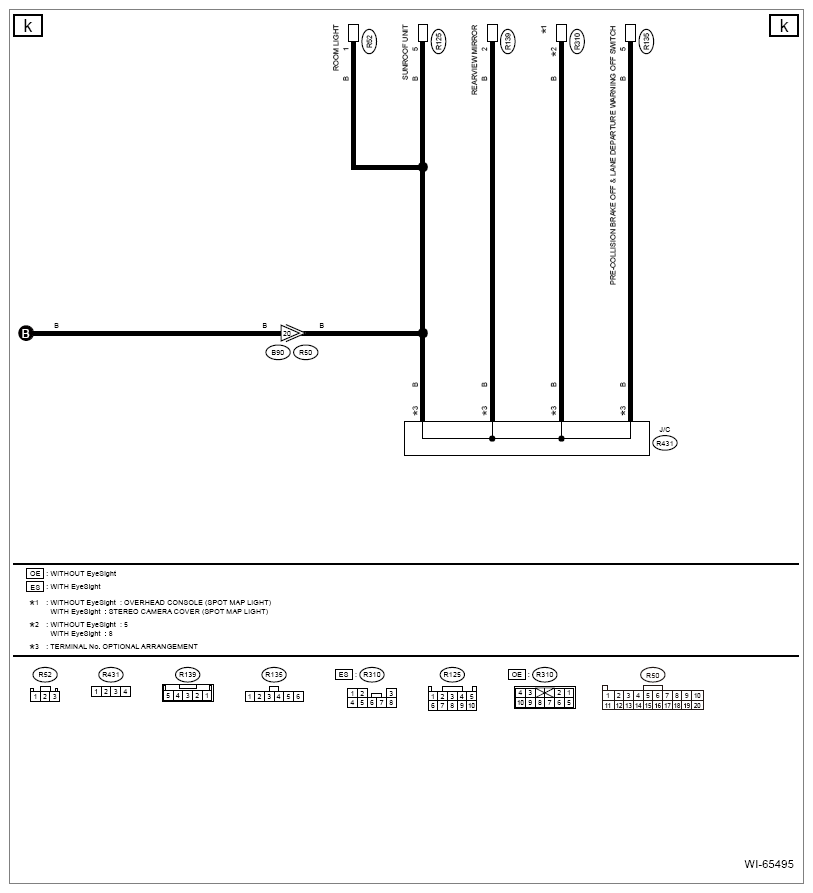

Fig 11: Ground Circuit Wiring Diagram(11 Of 12)

G11272228

Courtesy of SUBARU OF AMERICA, INC.

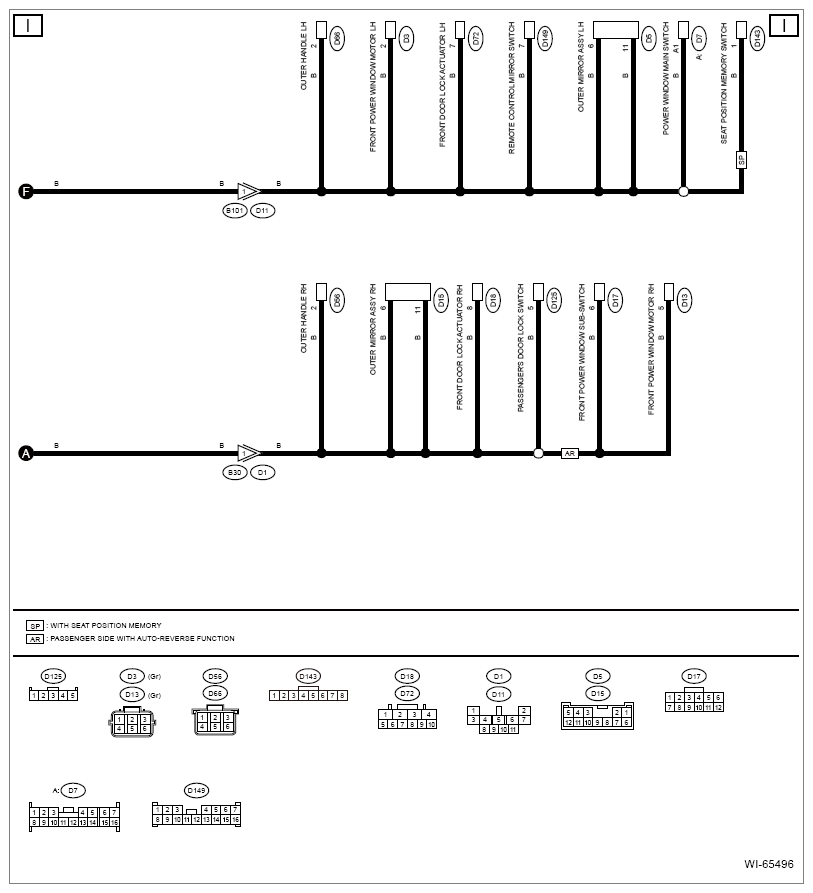

Fig 12: Ground Circuit Wiring Diagram(12 Of 12)

G11272229

Courtesy of SUBARU OF AMERICA, INC.
