Without Push Button Start (Engine Compartment Side)

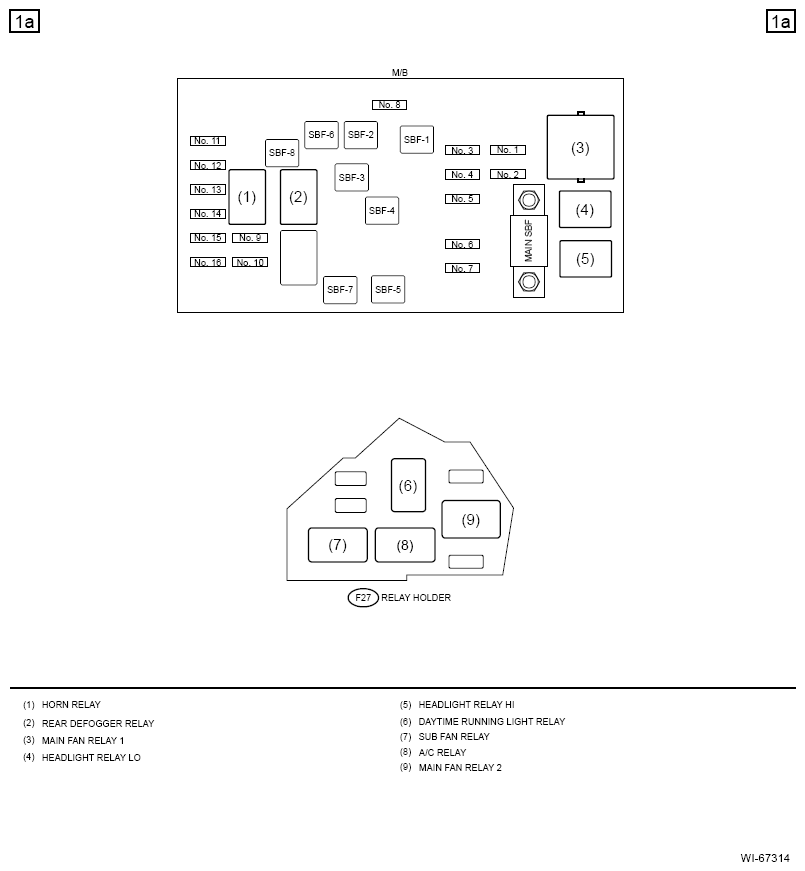

Fig 1: Fuse And Relay Wiring Diagram - Without Push Button Start (Engine Compartment Side)
G11272204Courtesy of SUBARU OF AMERICA, INC.
RELAY IDENTIFICATION - WITHOUT PUSH BUTTON START (ENGINE COMPARTMENT SIDE)

Relay Description
Horn Relay
Rear Defogger Relay
Main Fan Relay 1
Headlight Relay LO
Headlight Relay HI
Daytime Running Light Relay
Sub Fan Relay
A/C Relay
Main Fan Relay 2
