Front Wiper and Washer System: Wiring Diagram

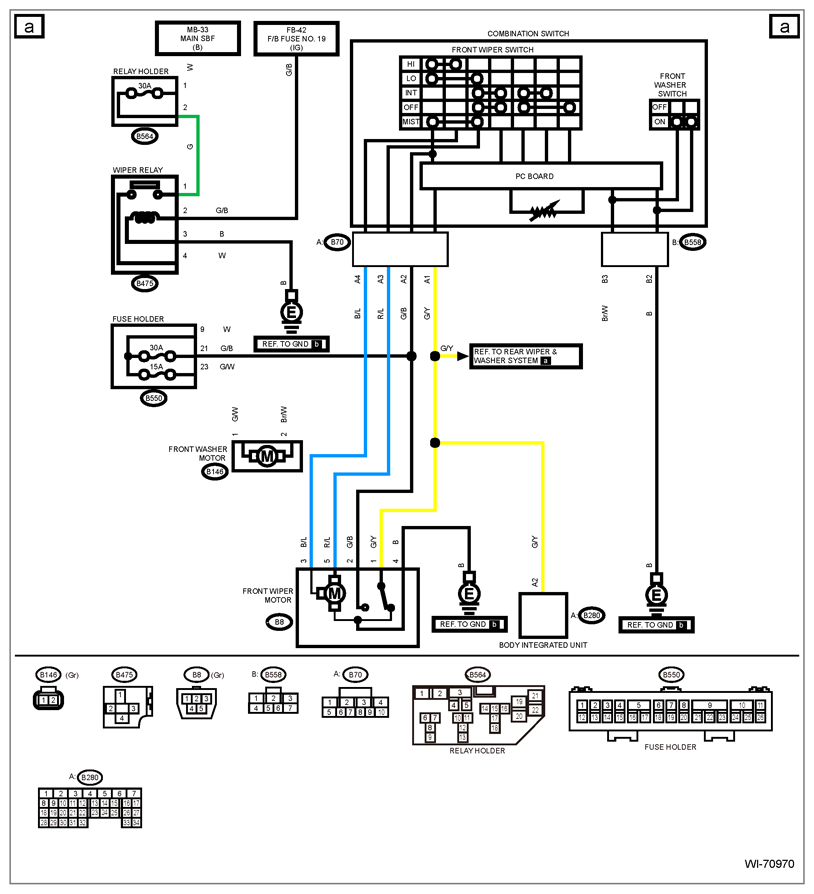

Fig 1: Front Wiper And Washer System Wiring Diagram (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

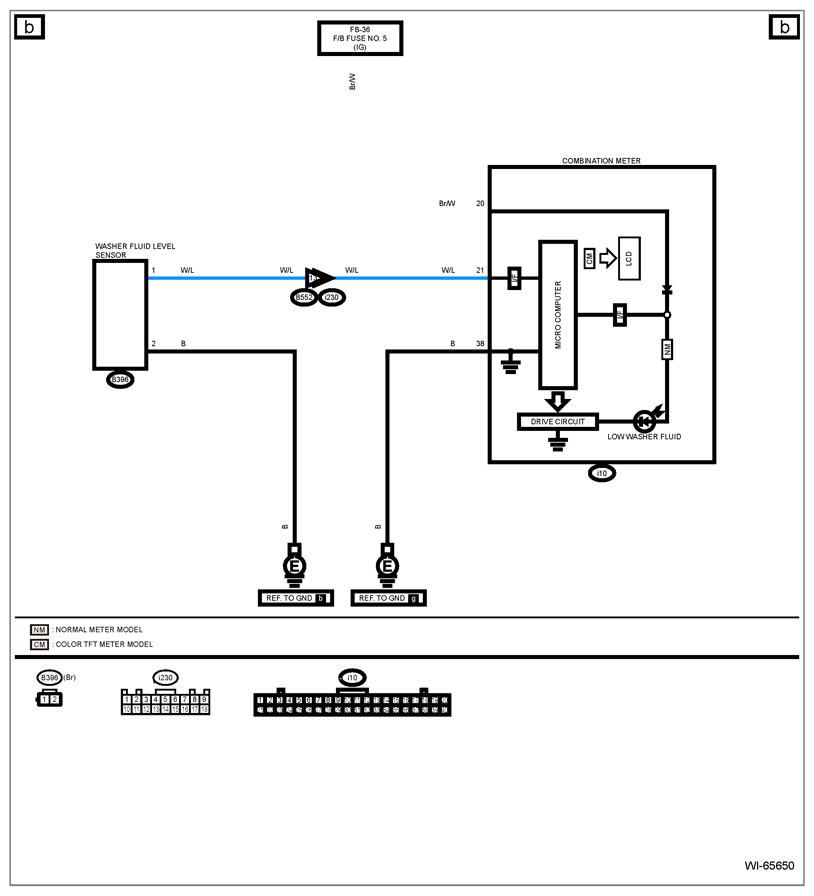

Fig 2: Front Wiper And Washer System Wiring Diagram (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
