Forester 2.0XT Touring
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Front Fog Light System
>>
Wiring Diagram
>>
With SRF
With SRF

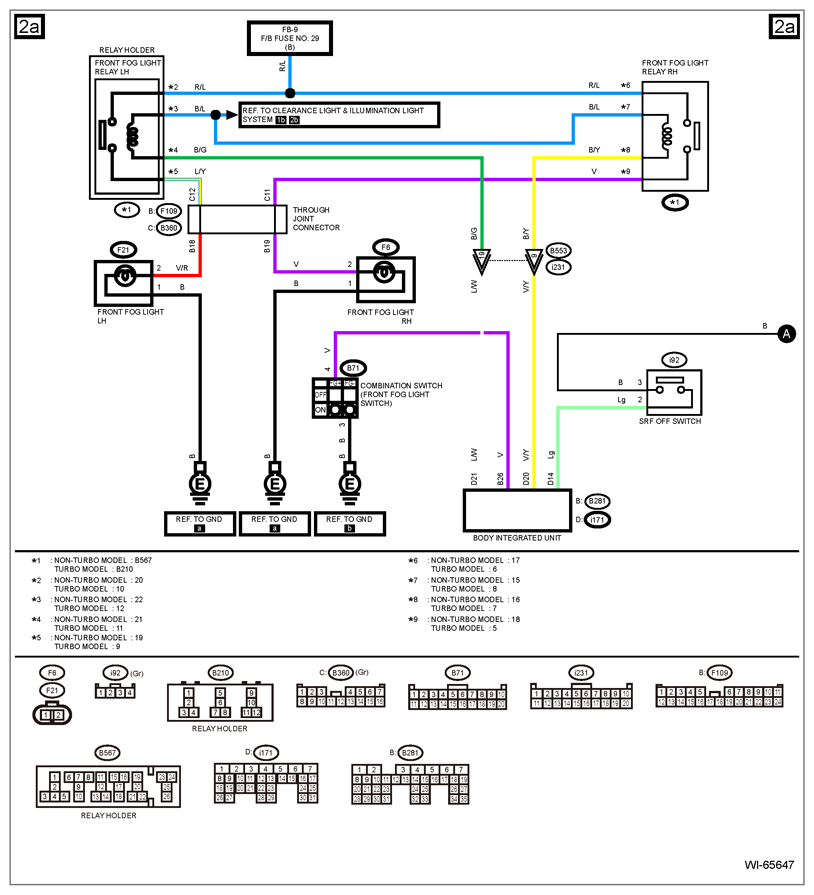

Fig 1: Front Fog Light System Wiring Diagram (With SRF) - 1 Of 2
Courtesy of SUBARU OF AMERICA, INC.

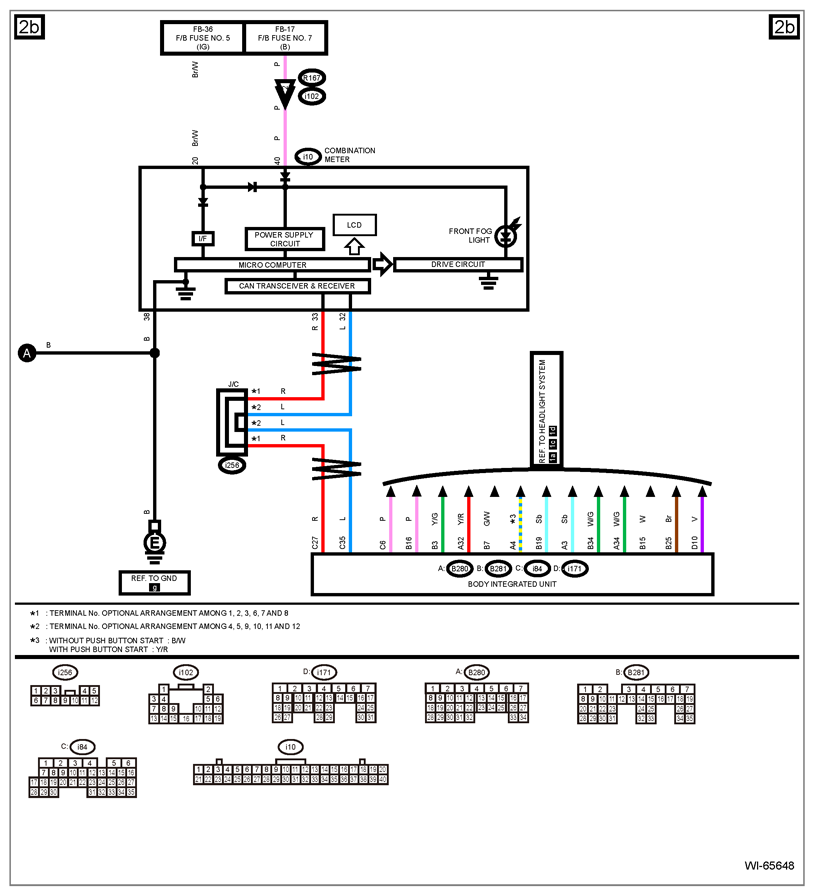

Fig 2: Front Fog Light System Wiring Diagram (With SRF) - 2 Of 2
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
