Turbo Model (Without Push Button Start)

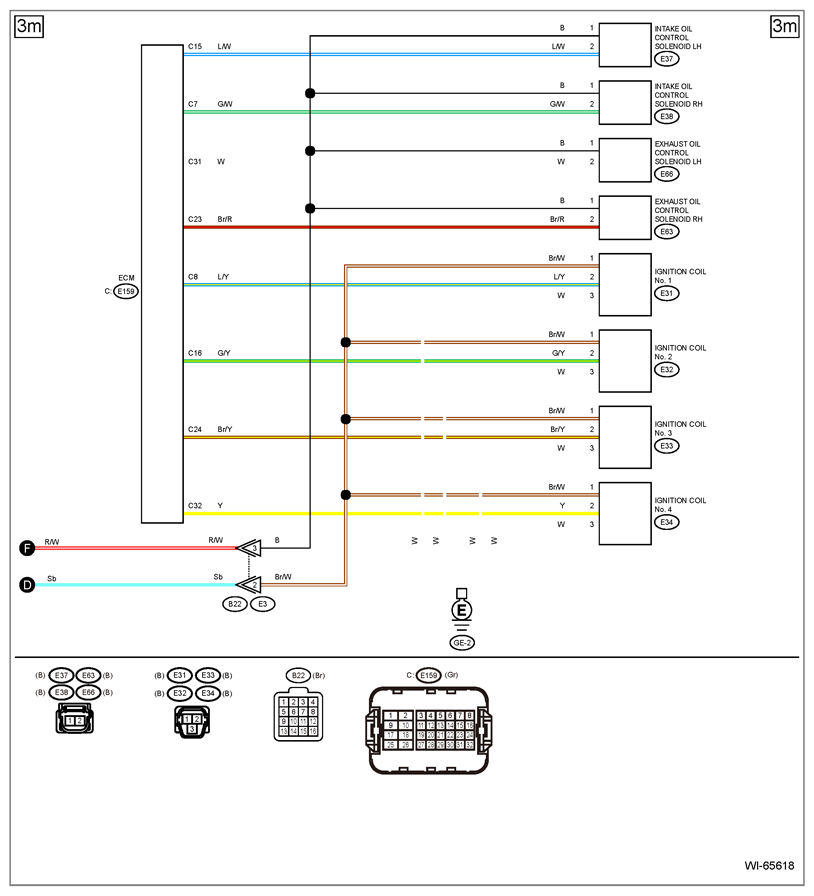

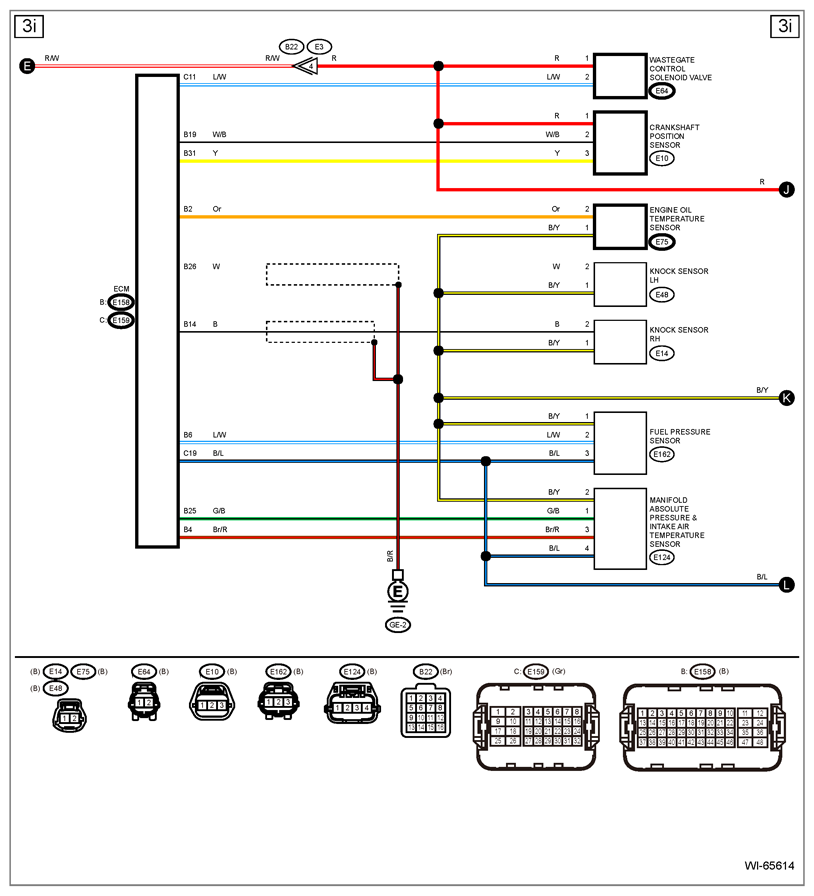

Fig 1: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (1 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

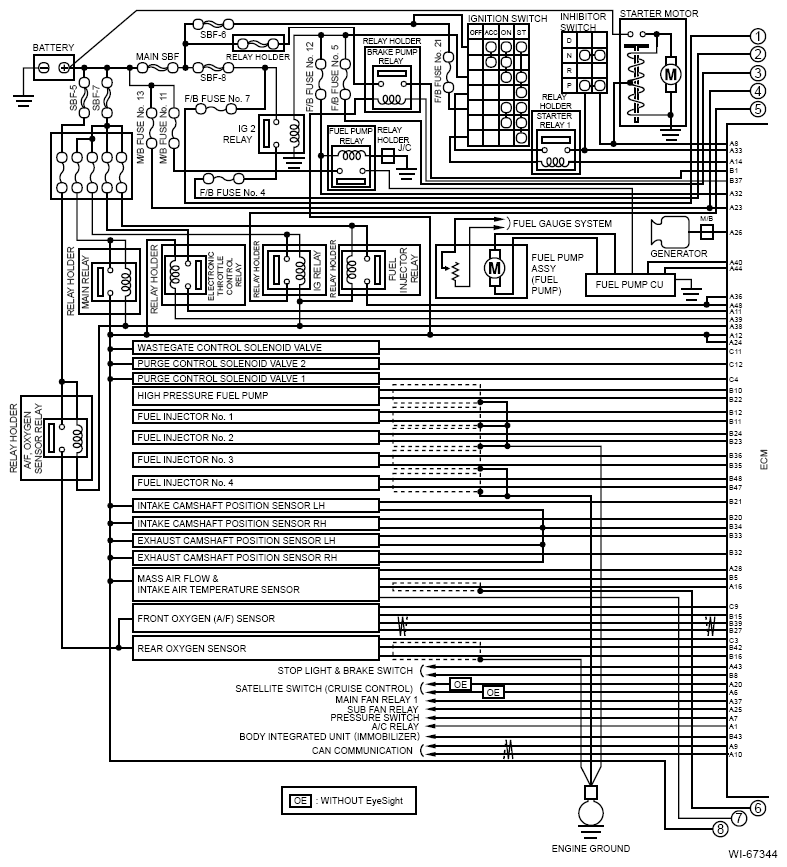

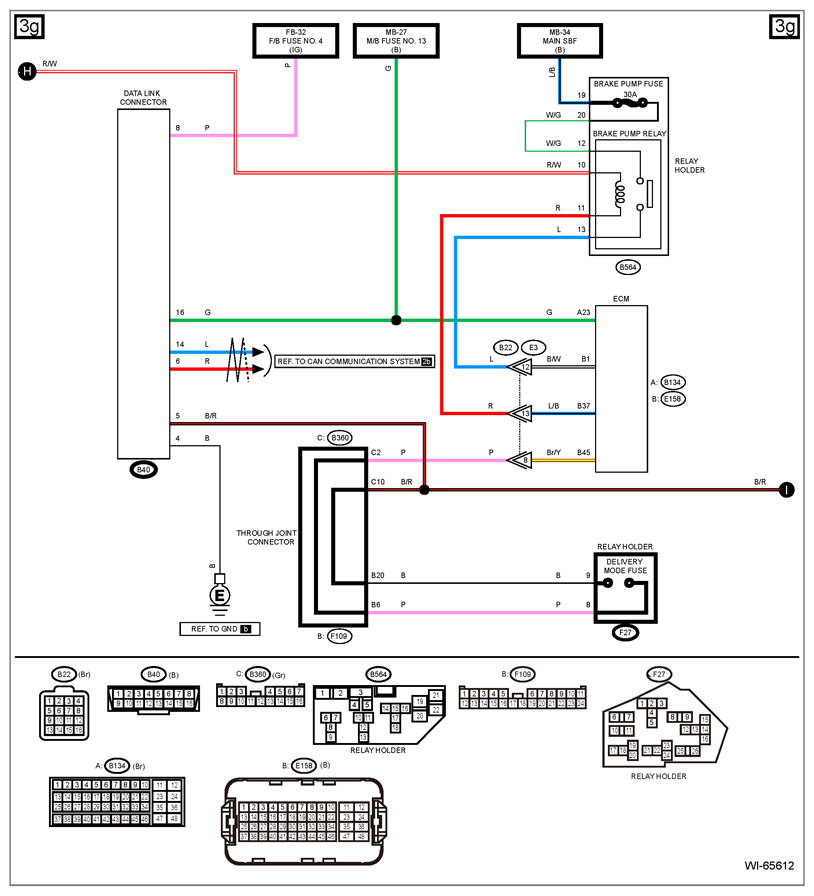

Fig 2: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (2 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

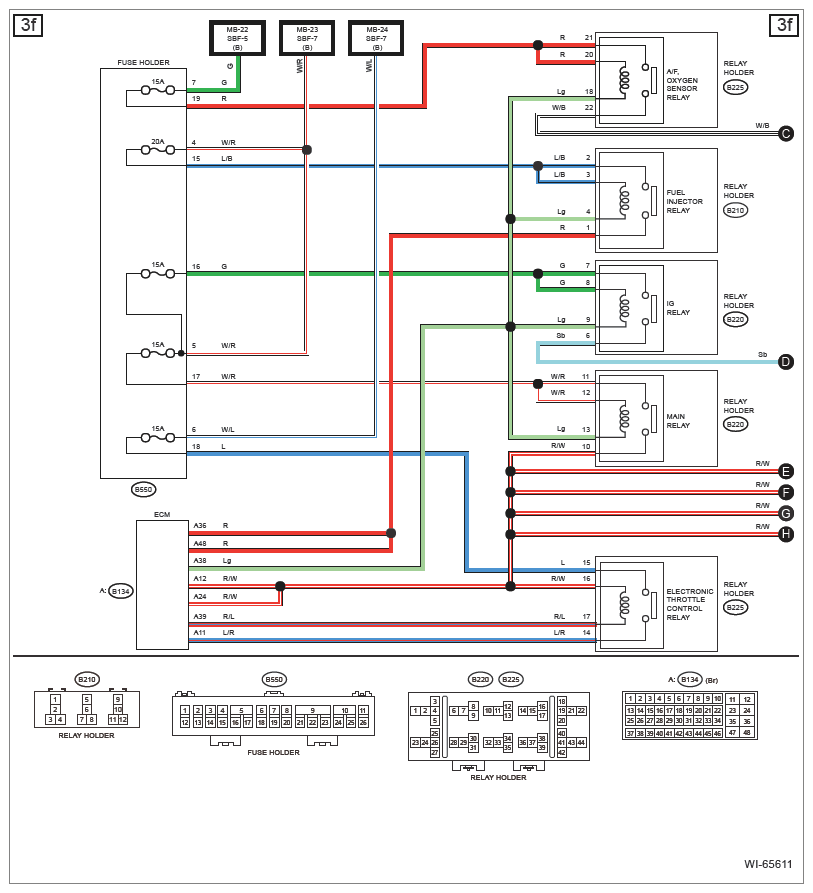

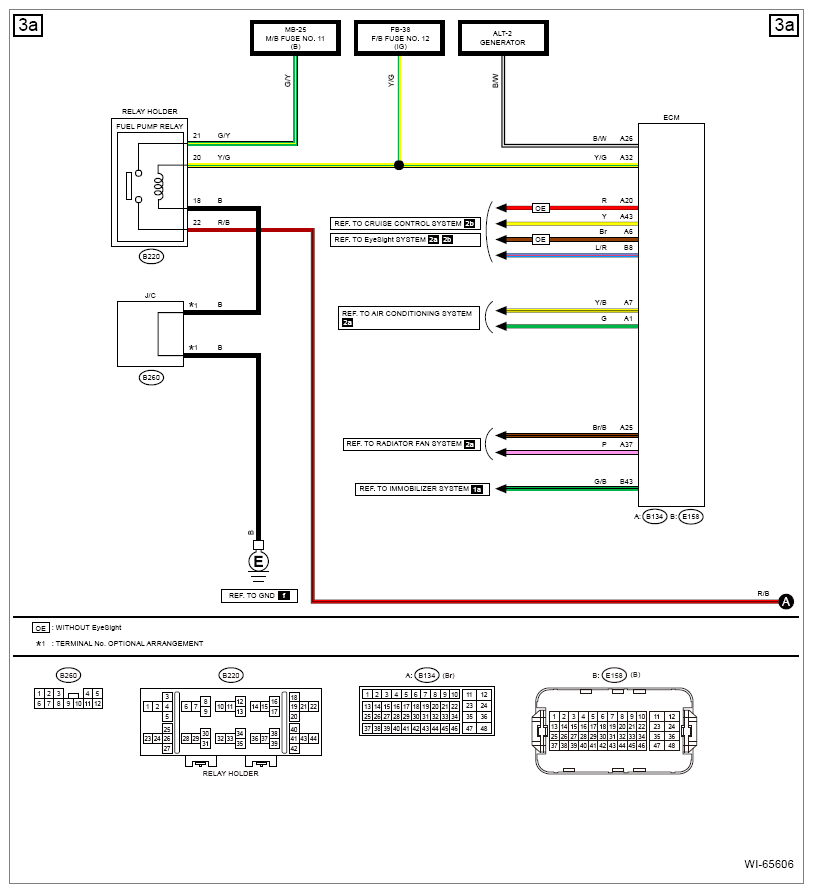

Fig 3: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (3 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

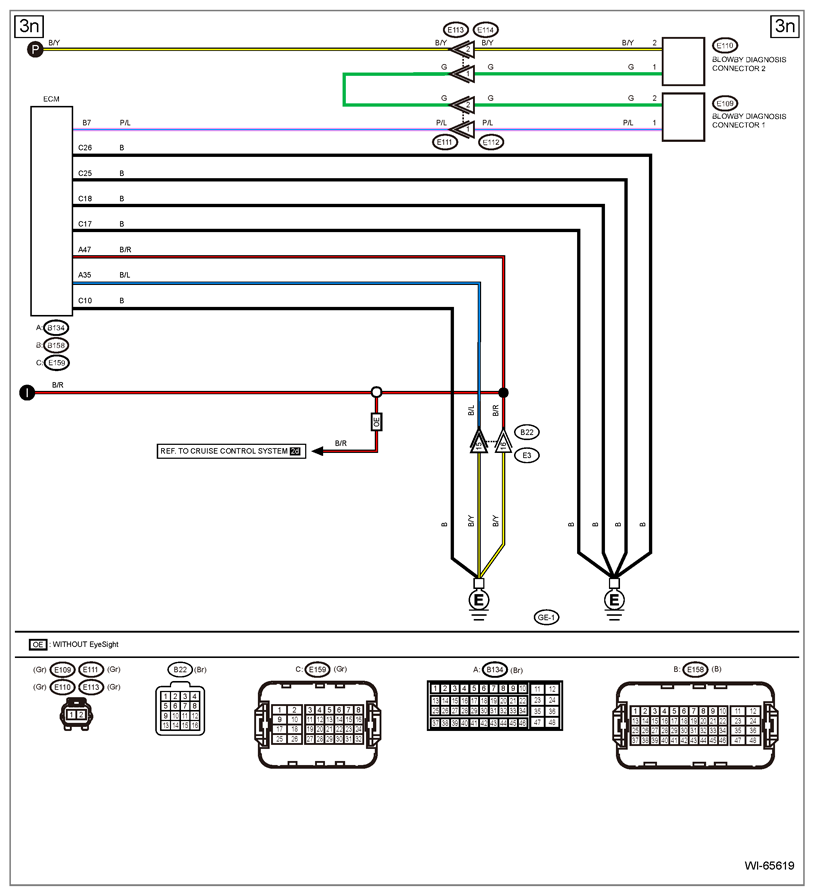

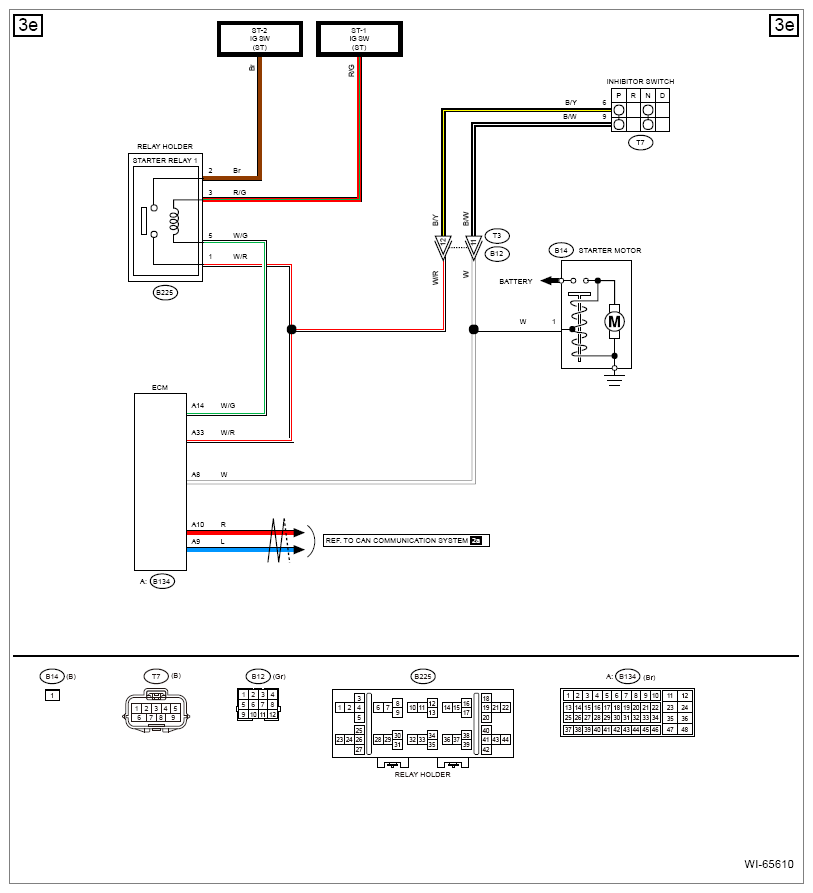

Fig 4: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (4 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

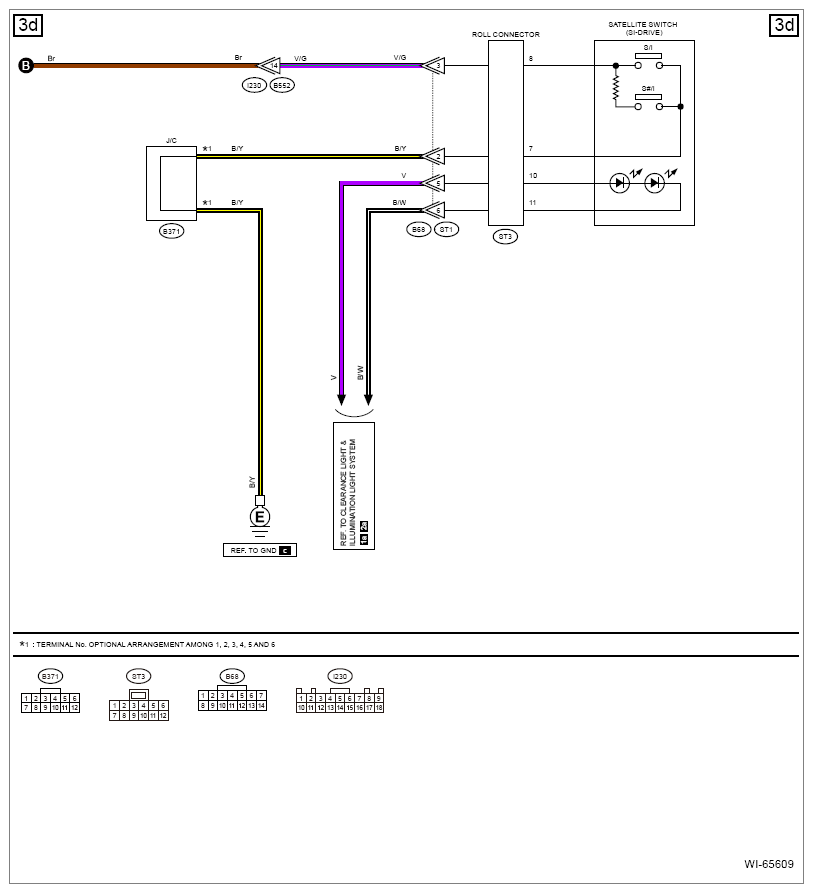

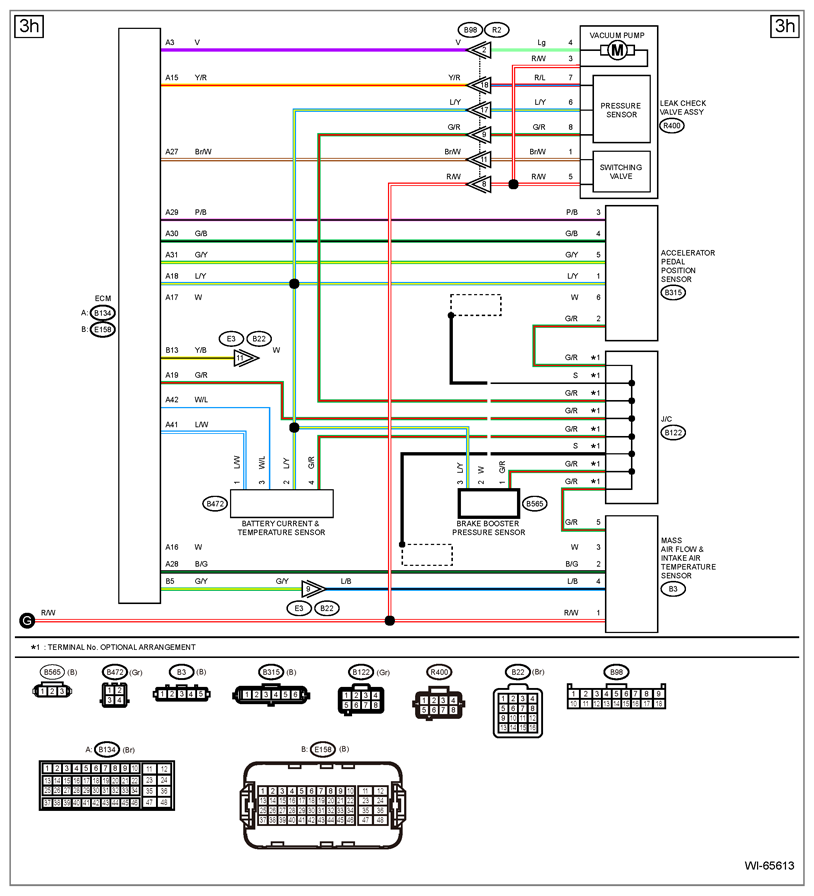

Fig 5: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (5 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

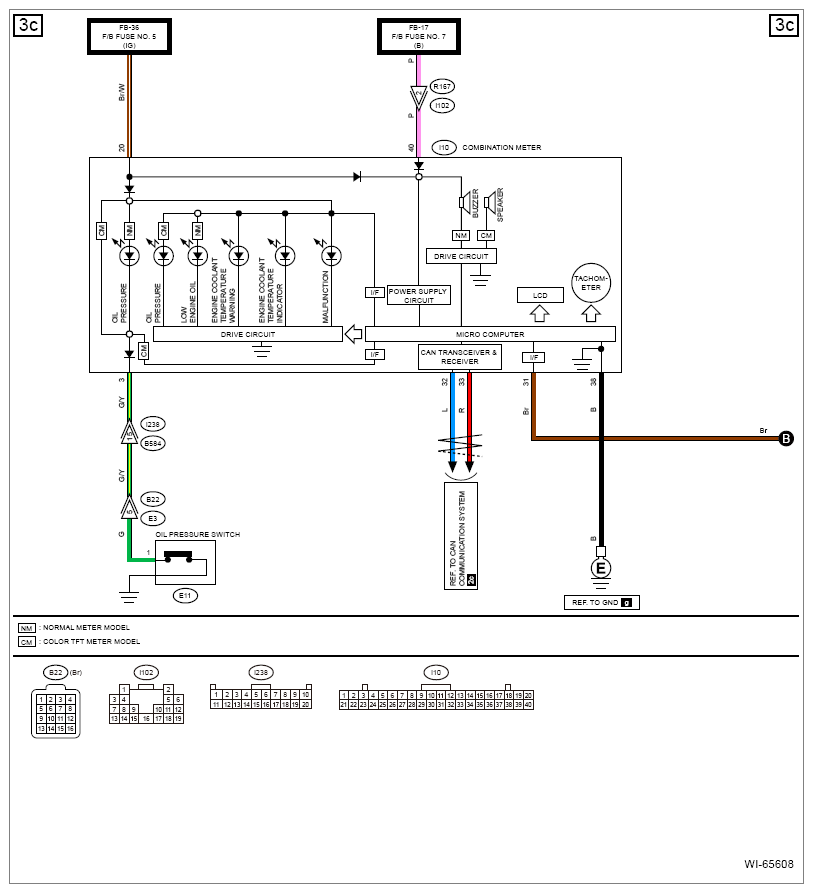

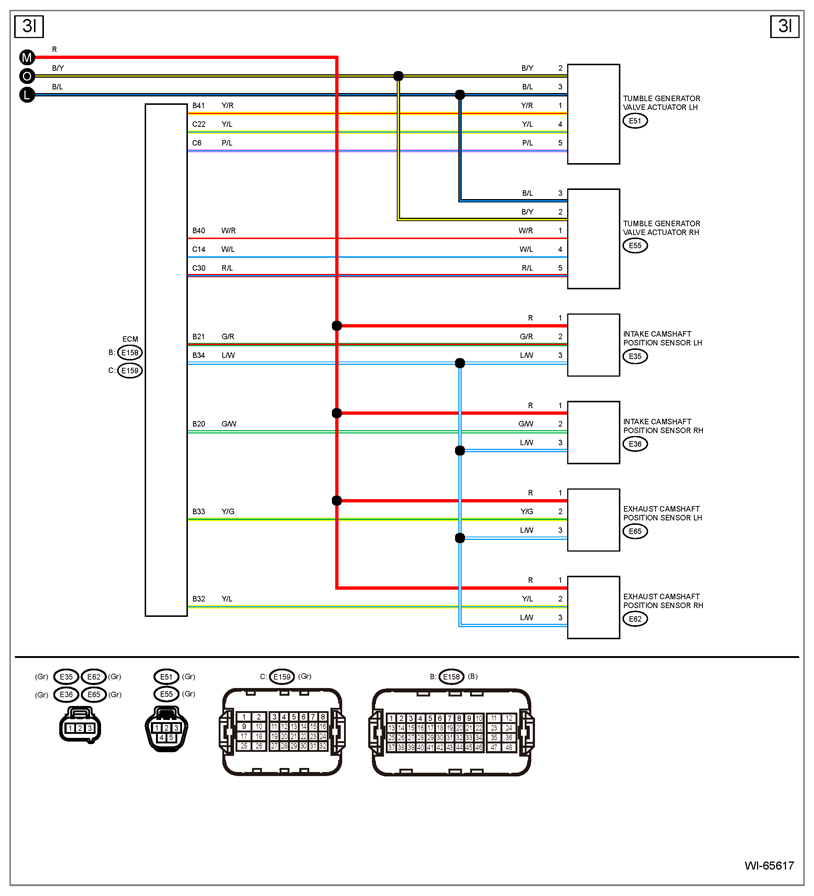

Fig 6: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (6 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

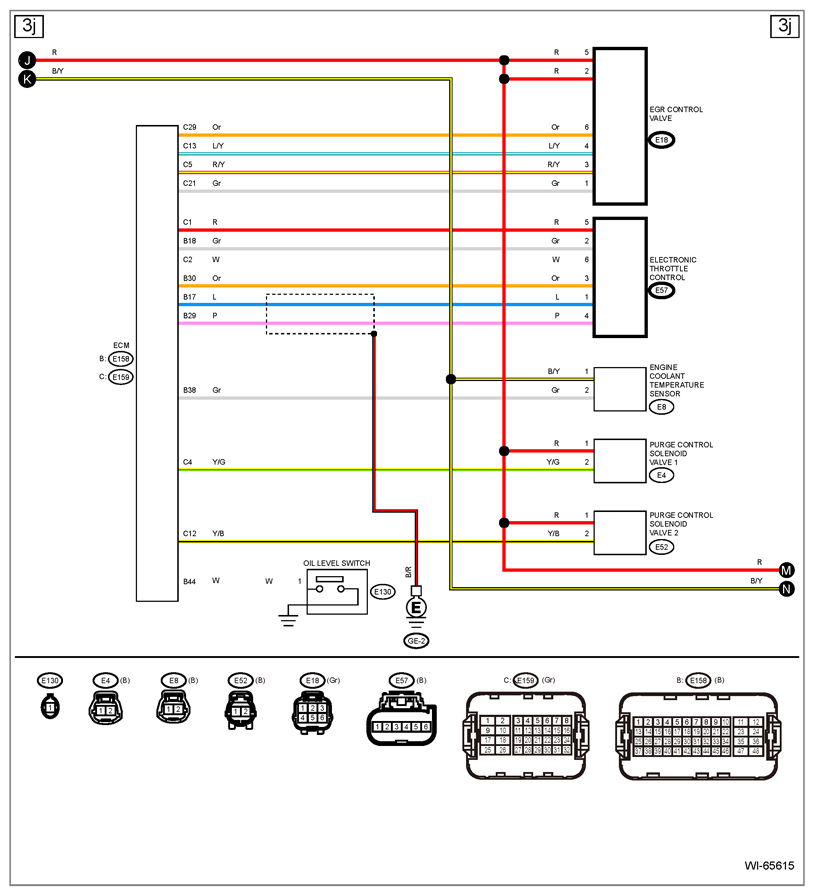

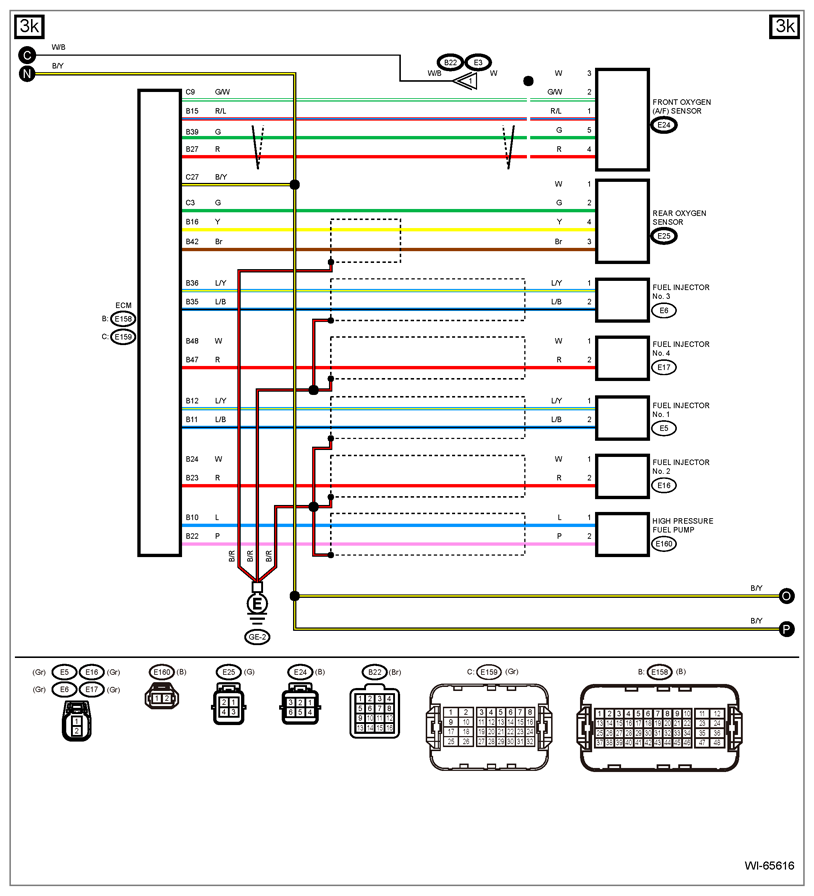

Fig 7: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (7 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

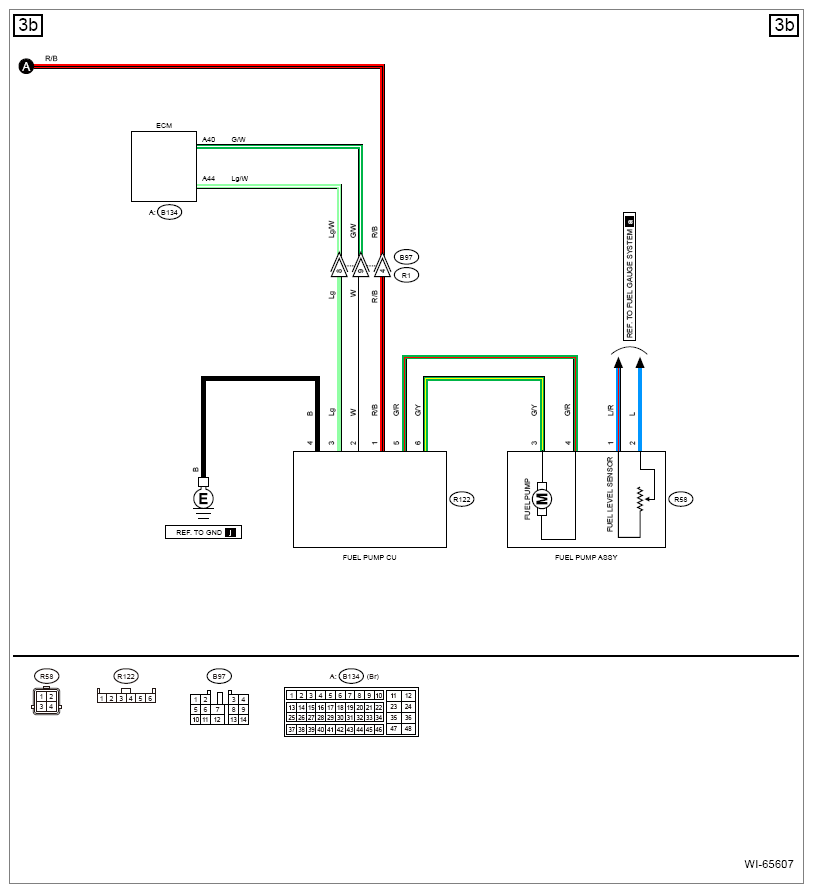

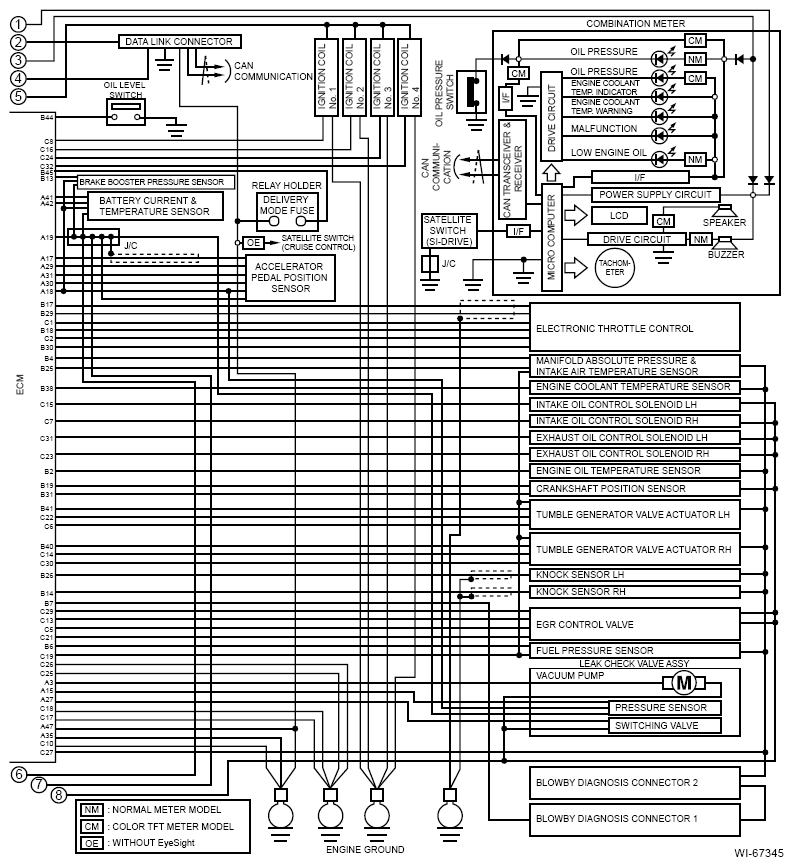

Fig 8: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (8 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (9 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (10 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (11 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (12 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (13 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (14 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

Fig 15: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (15 Of 16)

Courtesy of SUBARU OF AMERICA, INC.

Fig 16: Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (16 Of 16)

Courtesy of SUBARU OF AMERICA, INC.
