Non-Turbo Model (Without Push Button Start)

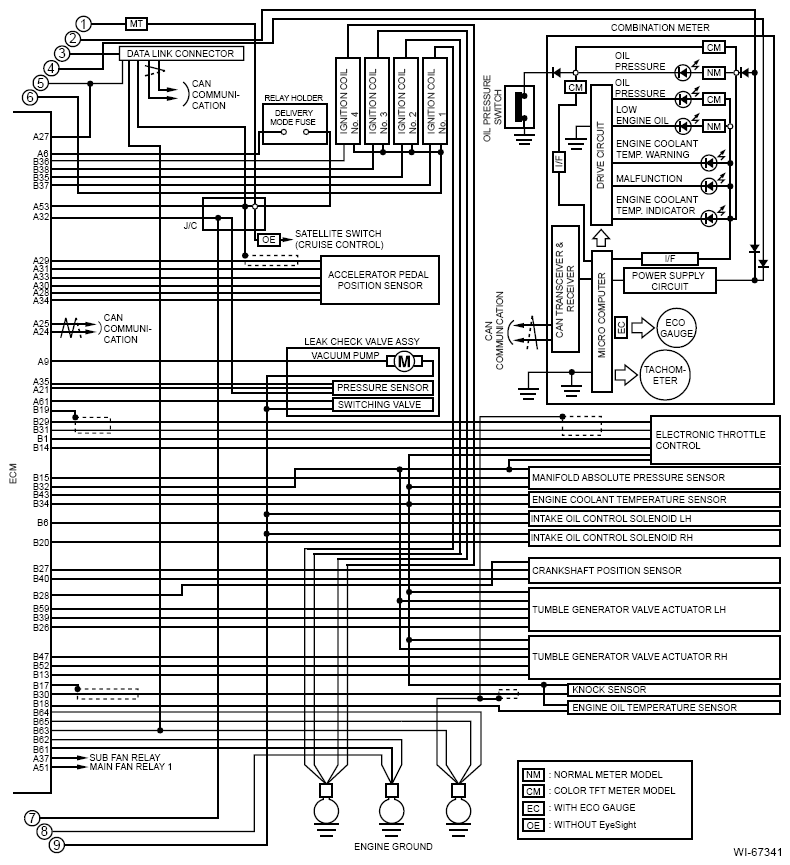

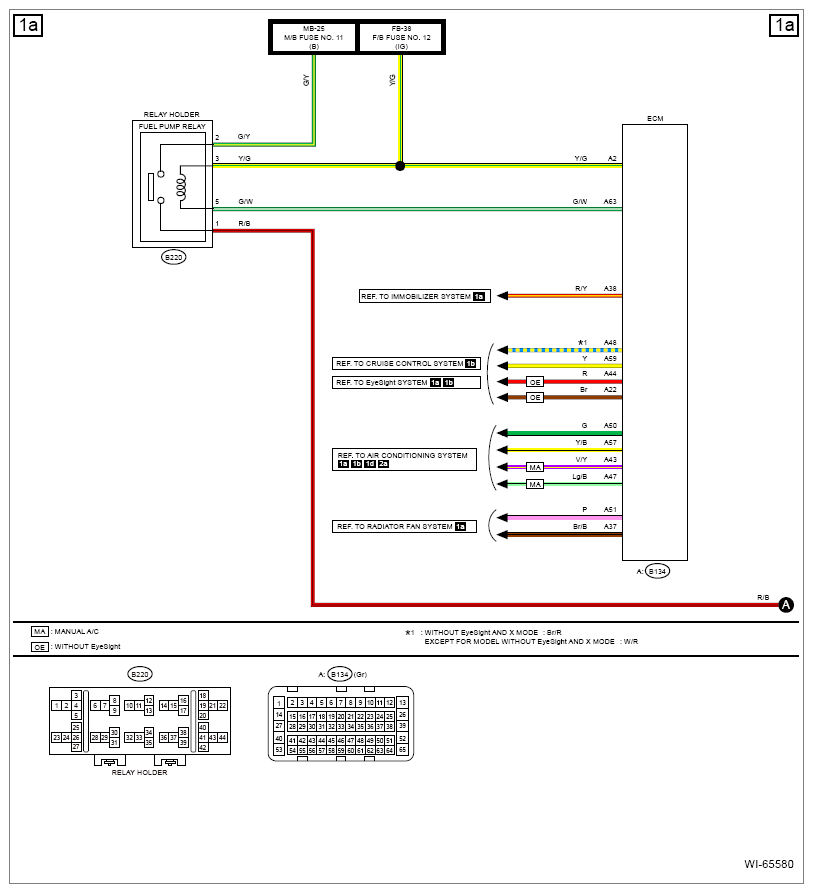

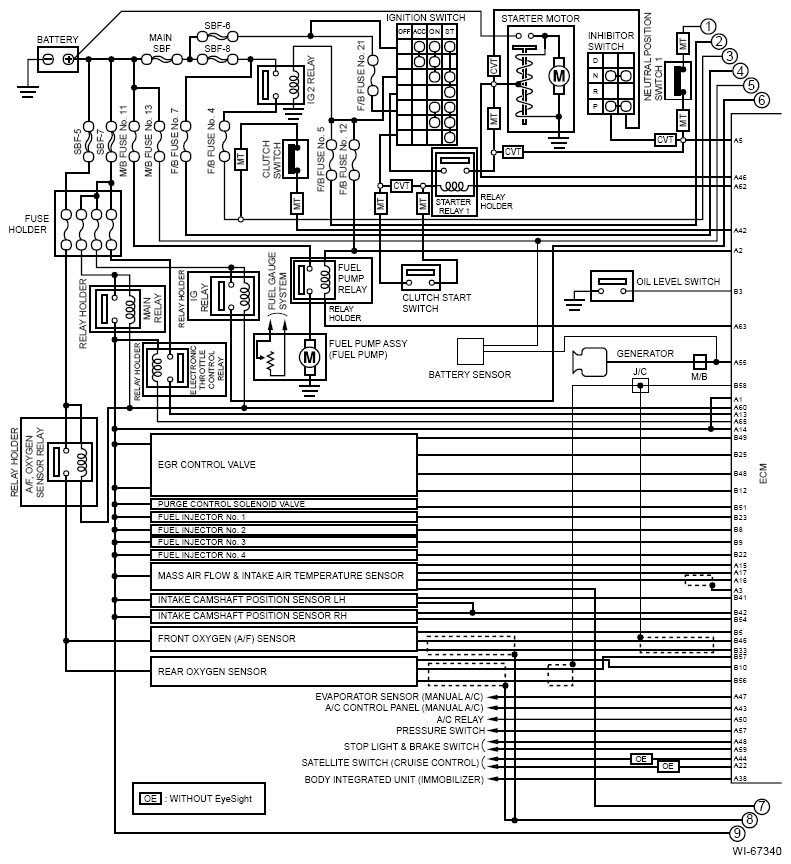

Fig 1: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (1 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

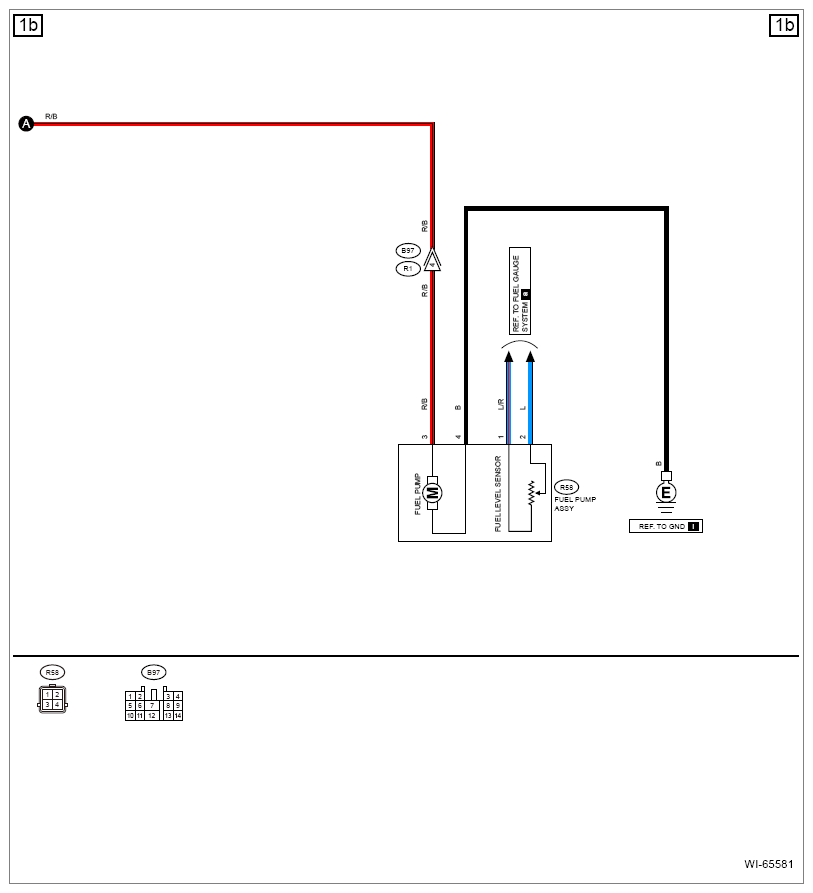

Fig 2: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (2 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

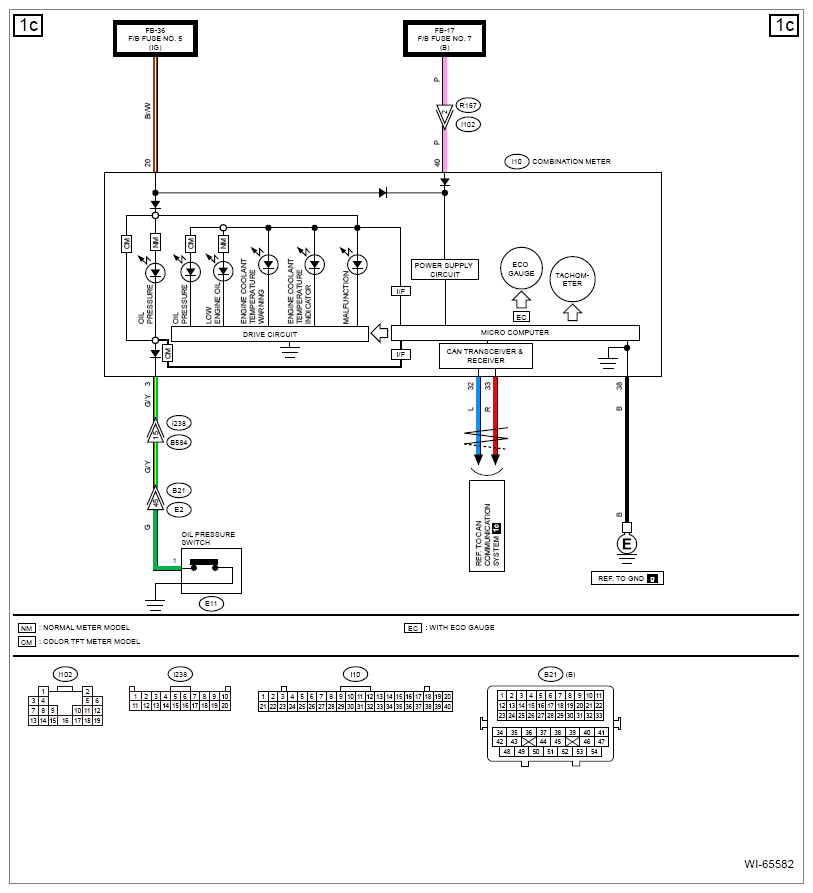

Fig 3: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (3 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

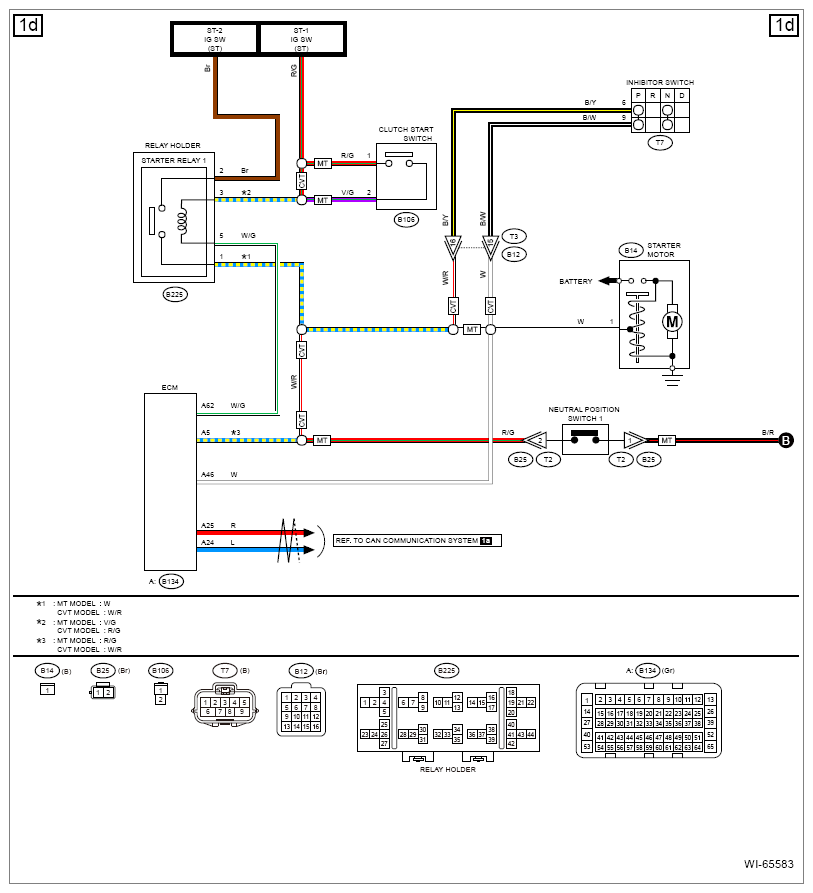

Fig 4: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (4 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

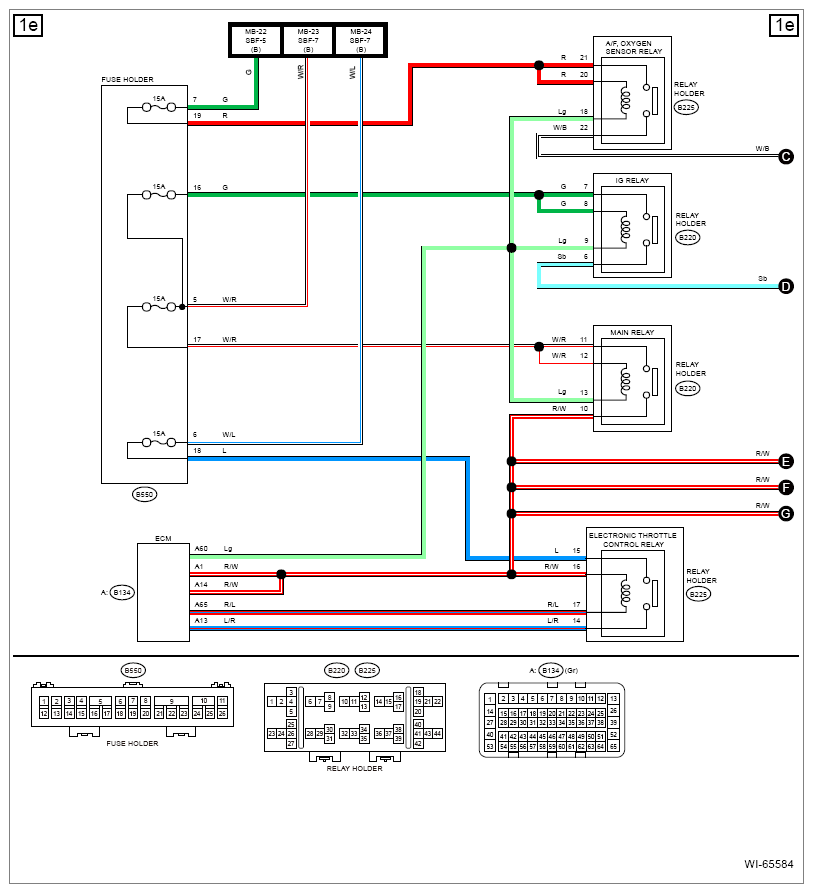

Fig 5: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (5 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

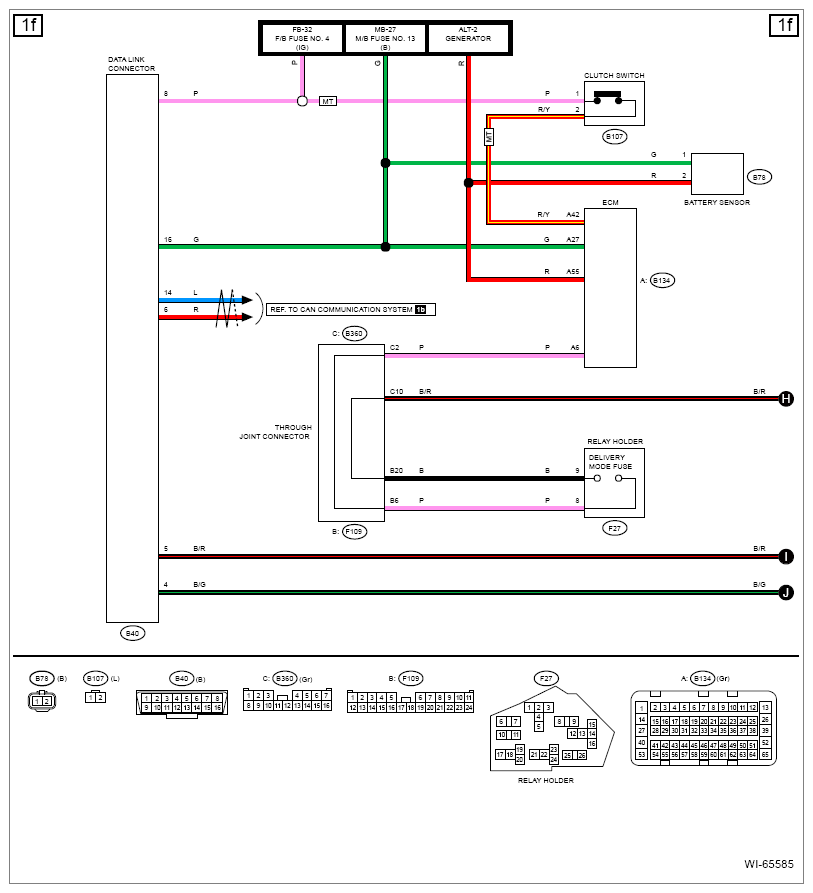

Fig 6: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (6 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

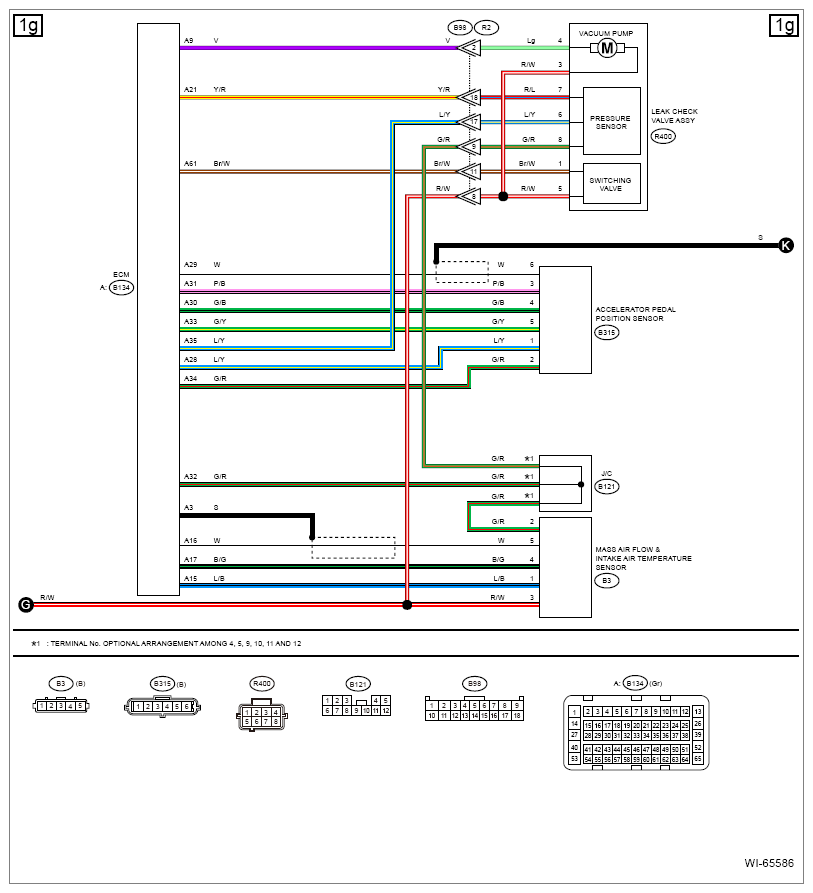

Fig 7: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (7 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

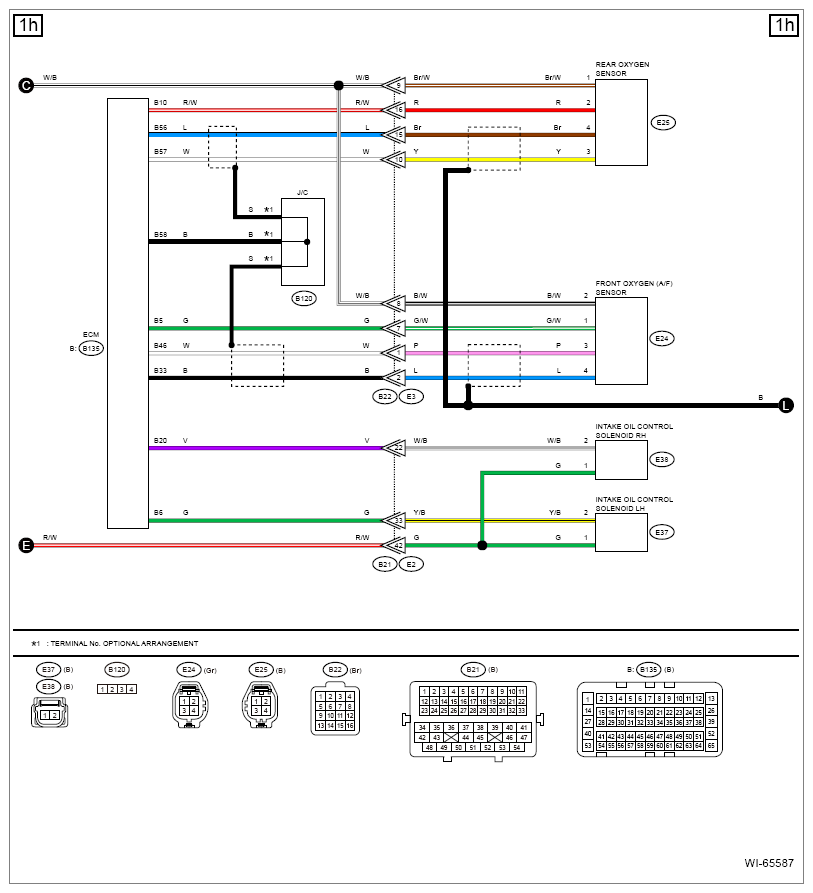

Fig 8: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (8 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

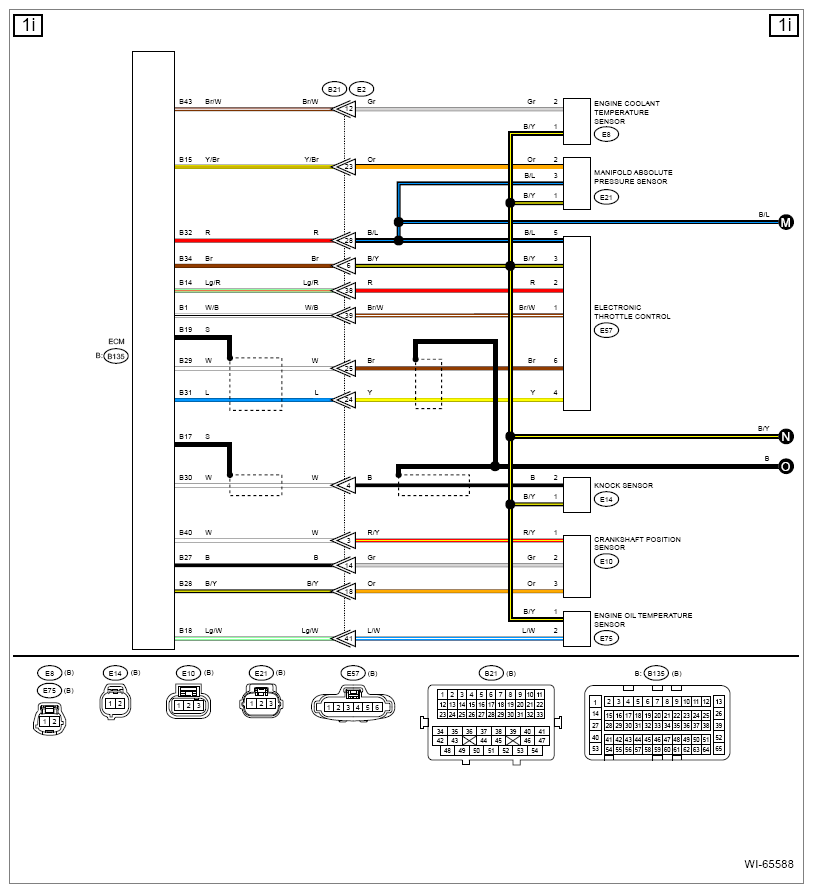

Fig 9: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (9 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

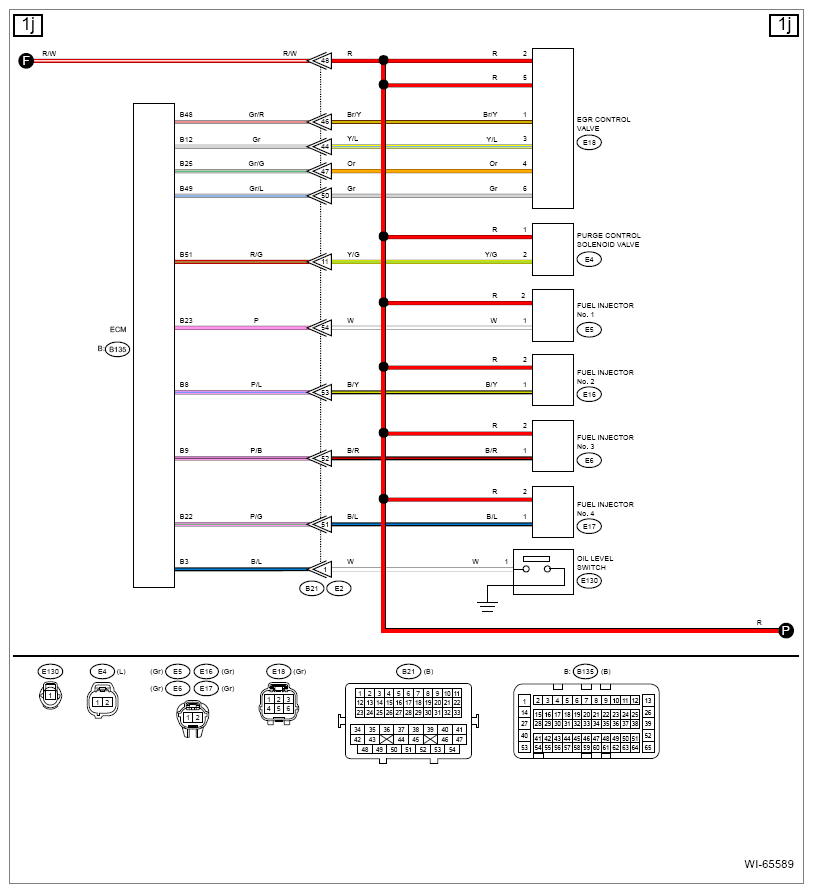

Fig 10: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (10 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

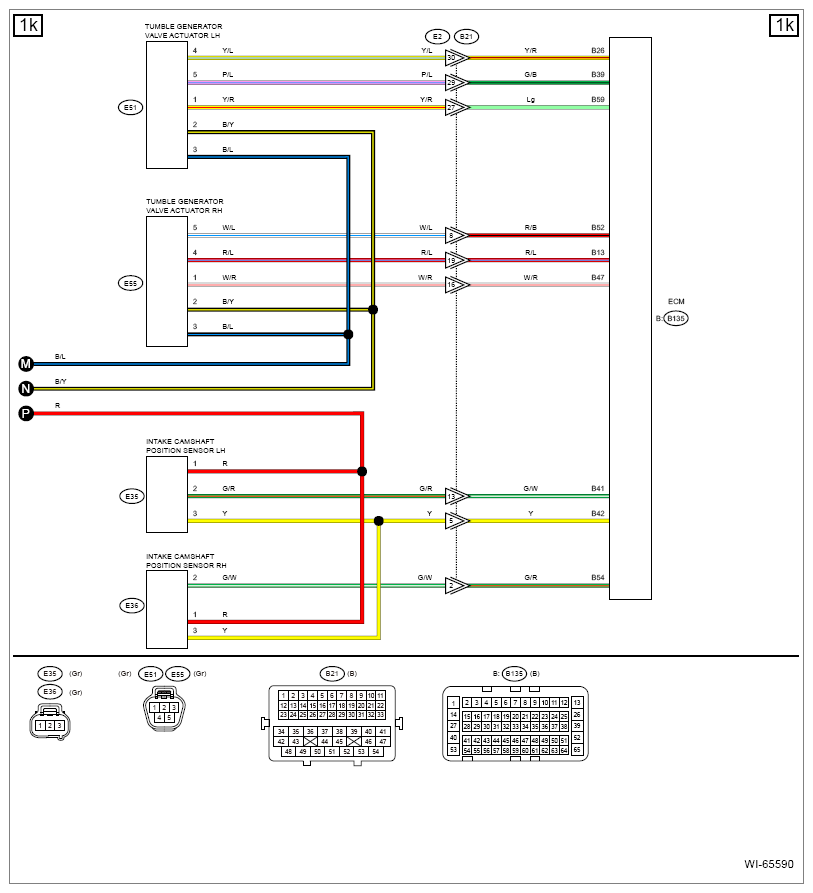

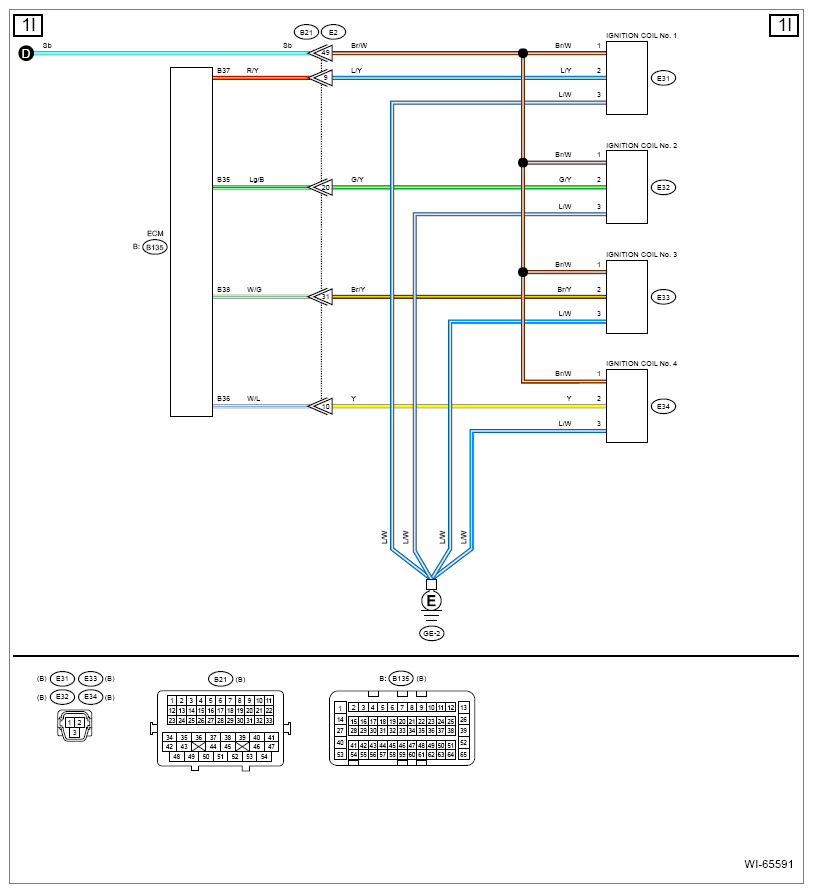

Fig 11: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (11 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

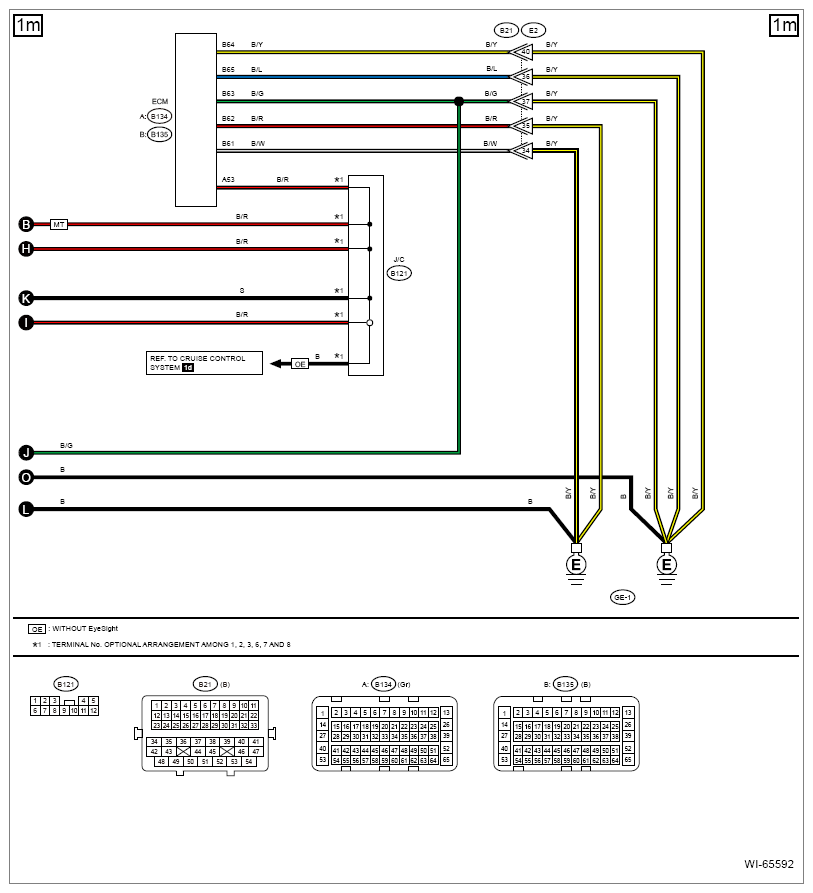

Fig 12: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (12 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (13 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (14 Of 15)

Courtesy of SUBARU OF AMERICA, INC.

Fig 15: Non-Turbo Model Without Push Button Start Engine Electrical System Wiring Diagram (15 Of 15)

Courtesy of SUBARU OF AMERICA, INC.
