Forester 2.0XT Touring
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Cruise Control System
>>
Wiring Diagram
>>
Turbo Model
Turbo Model

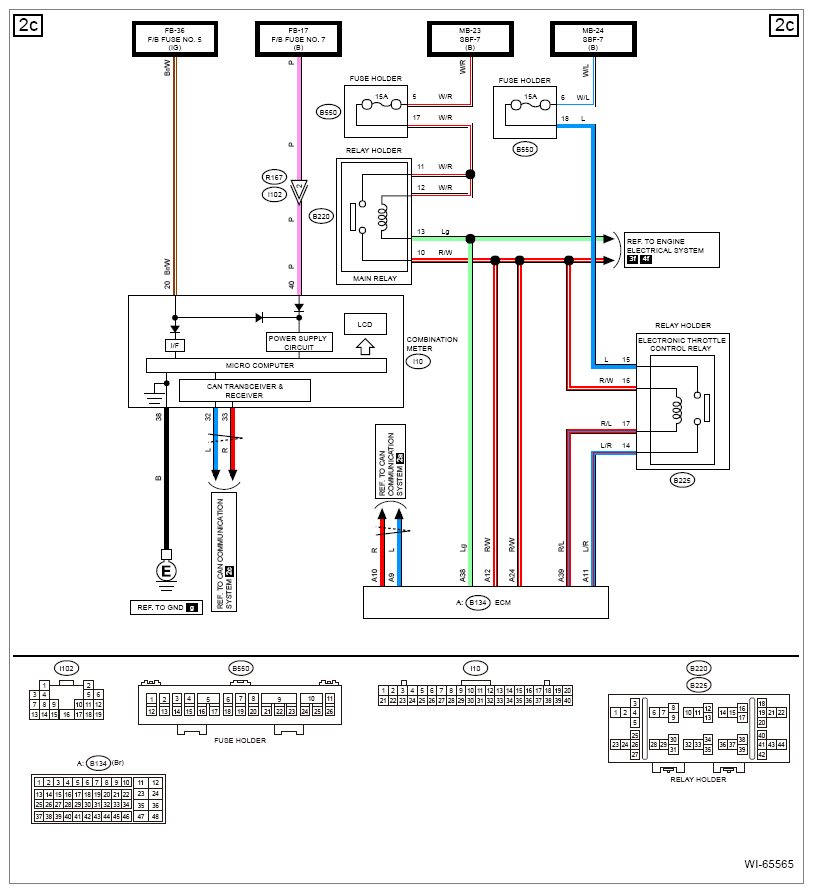

Fig 1: Turbo Model Cruise Control System Wiring Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

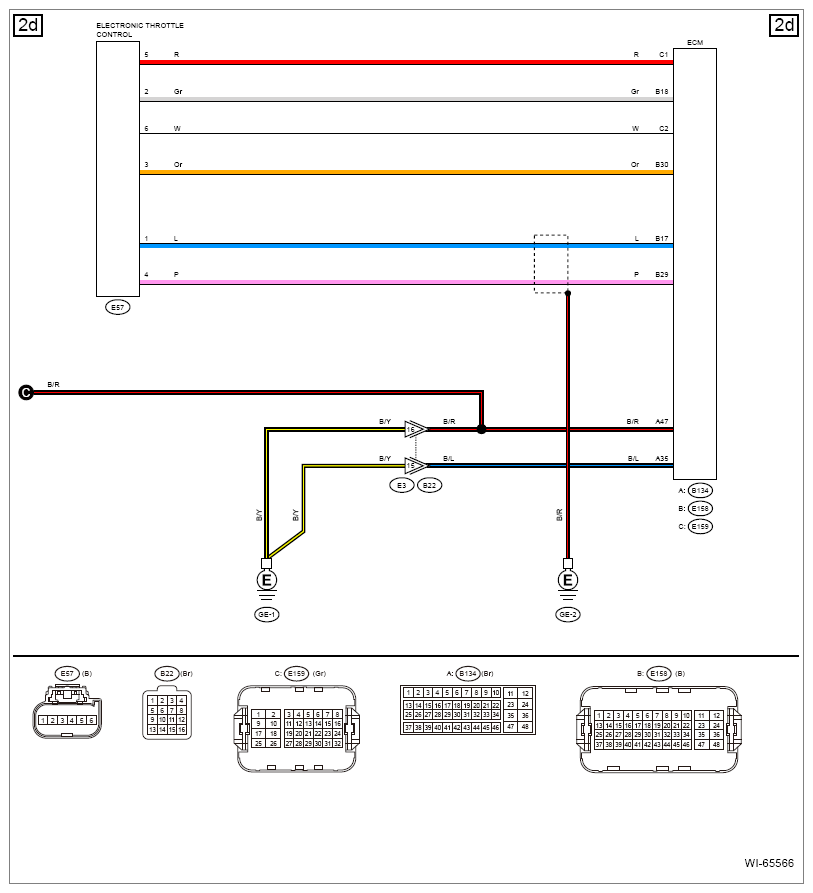

Fig 2: Turbo Model Cruise Control System Wiring Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

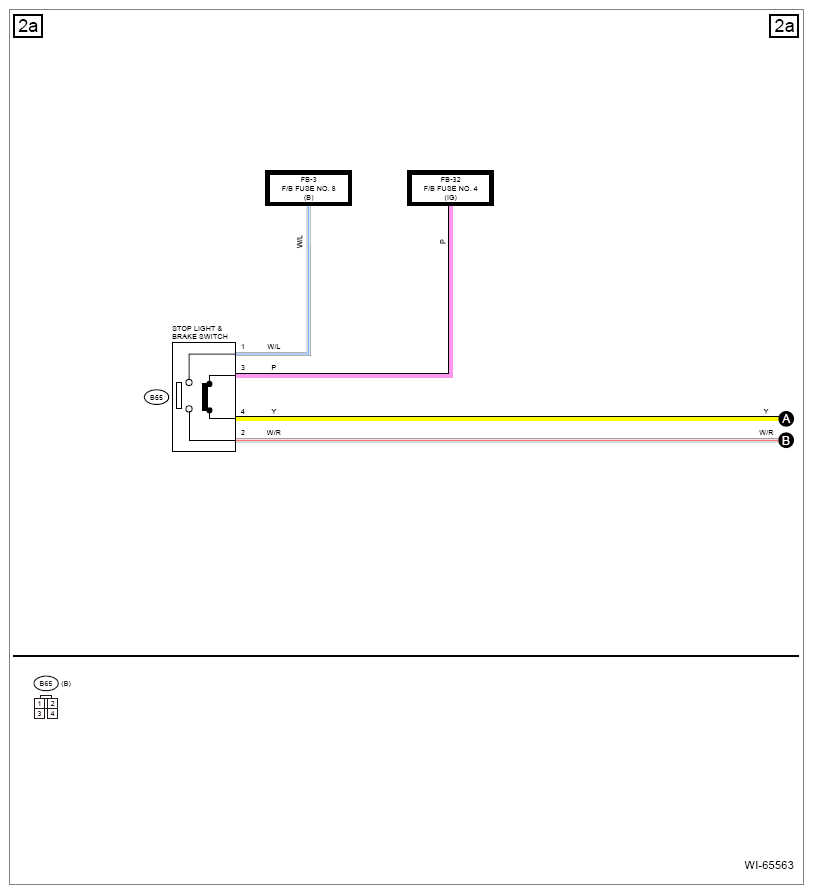

Fig 3: Turbo Model Cruise Control System Wiring Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

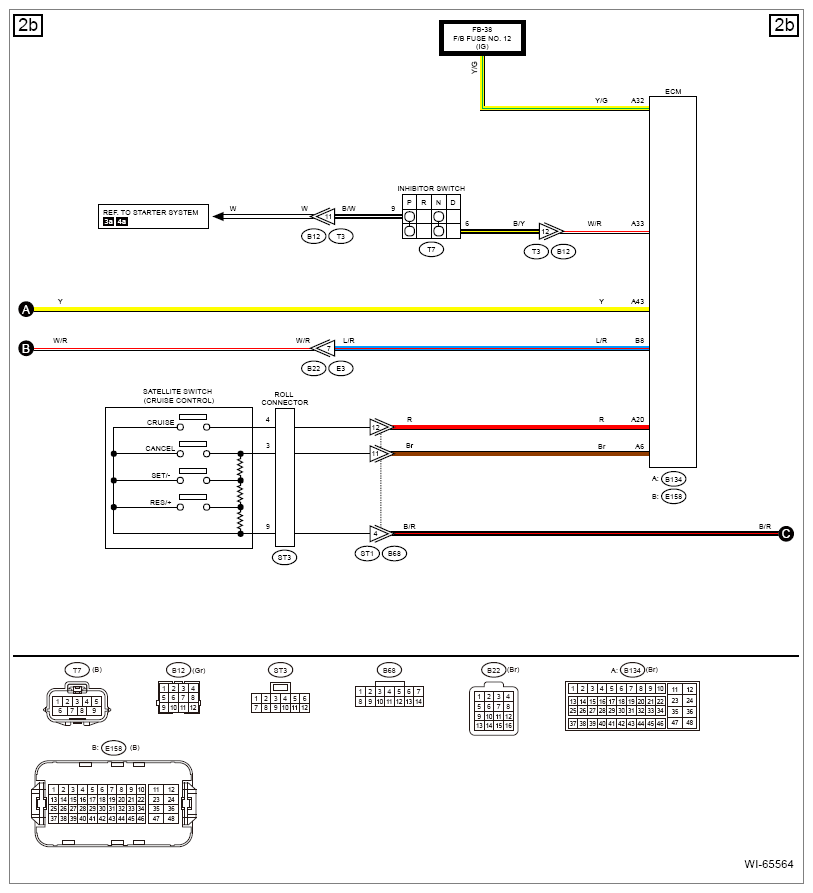

Fig 4: Turbo Model Cruise Control System Wiring Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
