Coolant Temperature System
>>
Wiring Diagram
>>
Turbo Model
Turbo Model

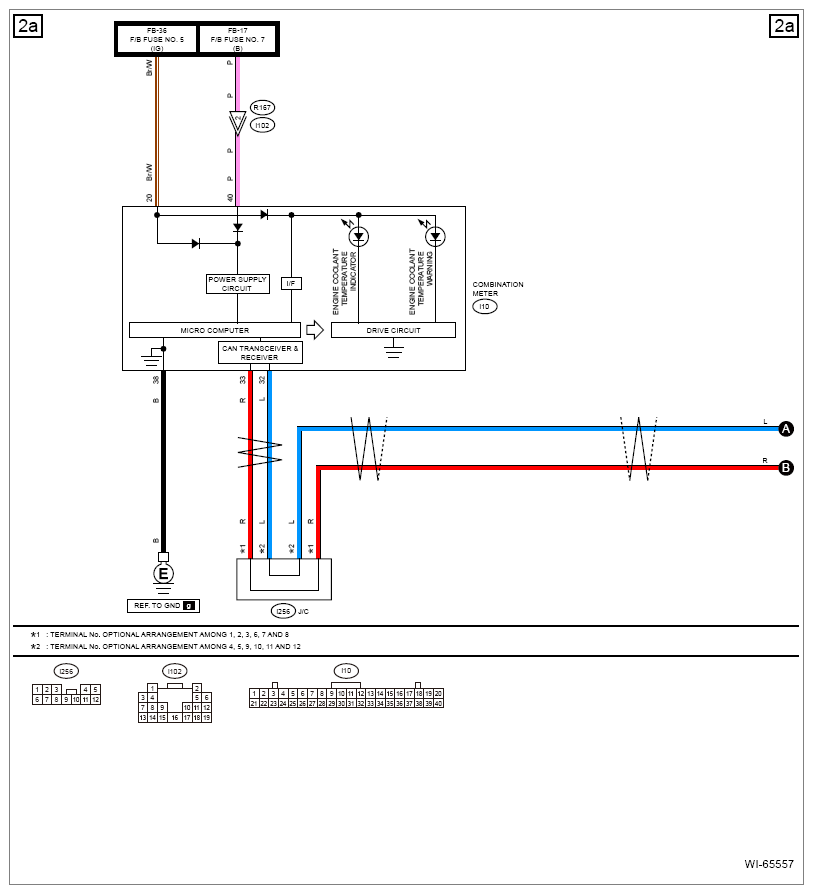

Fig 1: Turbo Model Coolant Temperature System Wiring Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

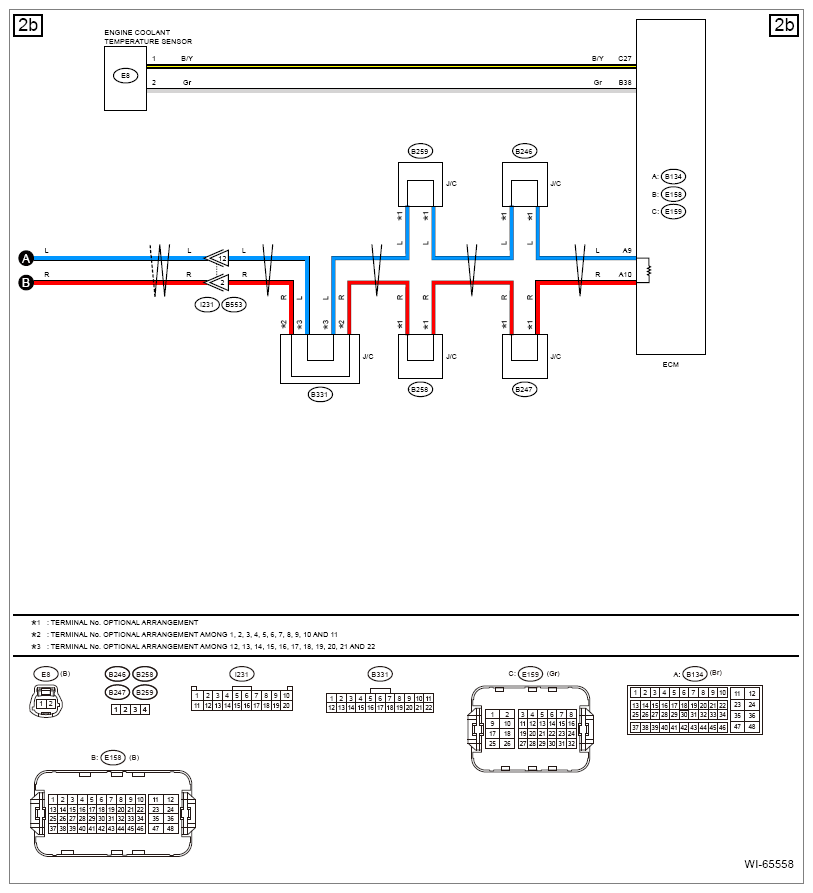

Fig 2: Turbo Model Coolant Temperature System Wiring Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
