Coolant Temperature System
>>
Wiring Diagram
>>
Non-Turbo Model
Non-Turbo Model

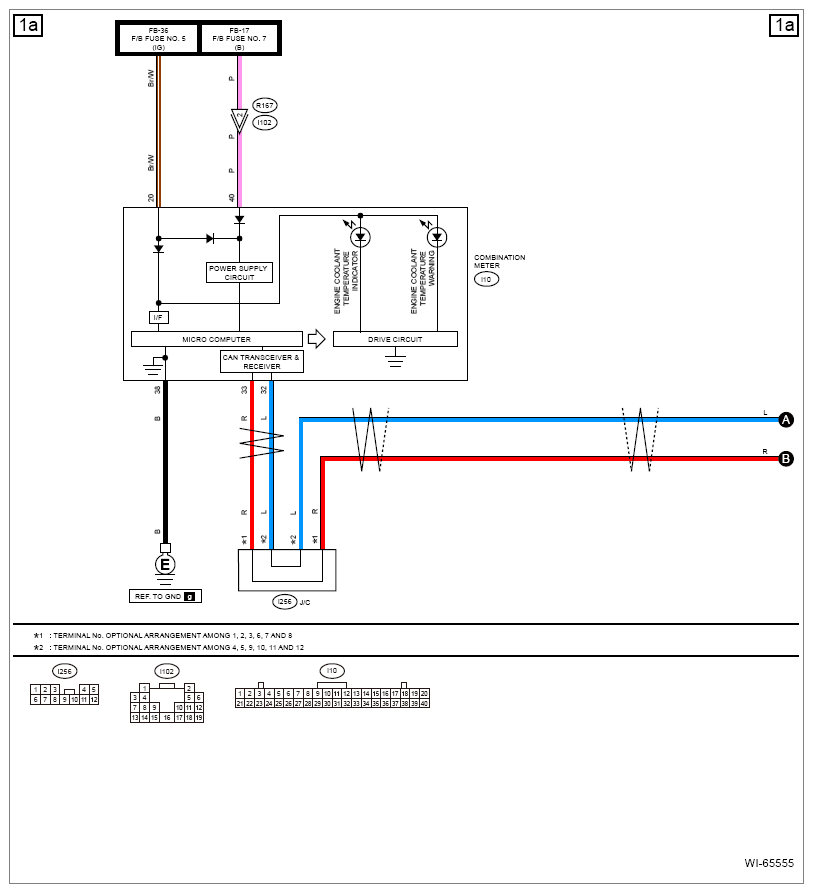

Fig 1: Non-Turbo Model Coolant Temperature System Wiring Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

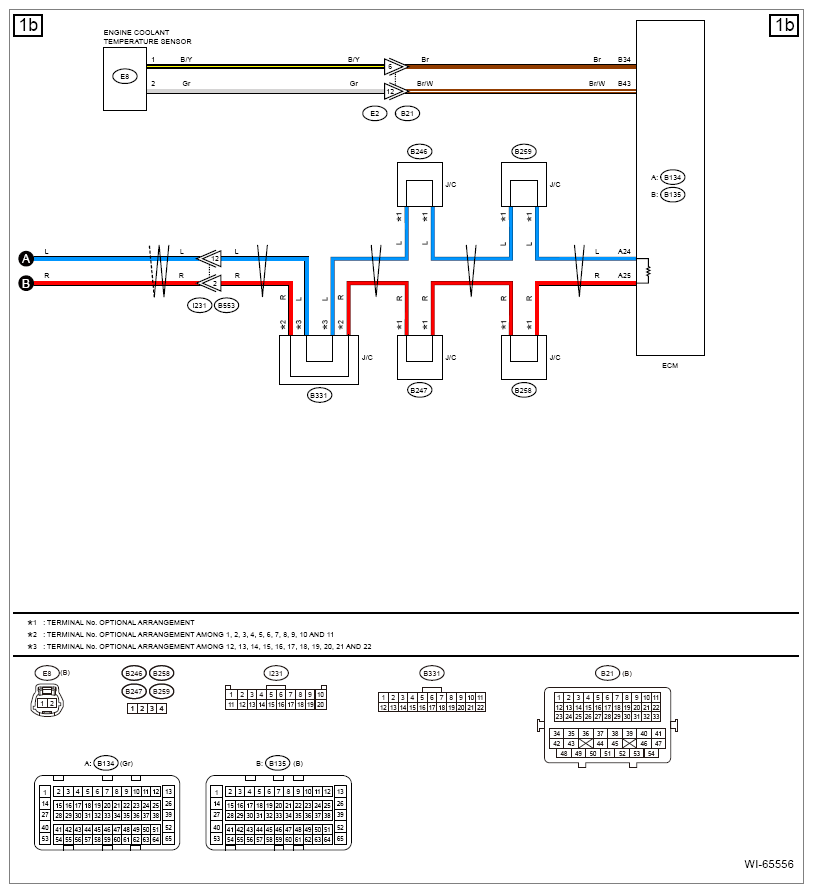

Fig 2: Non-Turbo Model Coolant Temperature System Wiring Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
