Model With Normal Meter

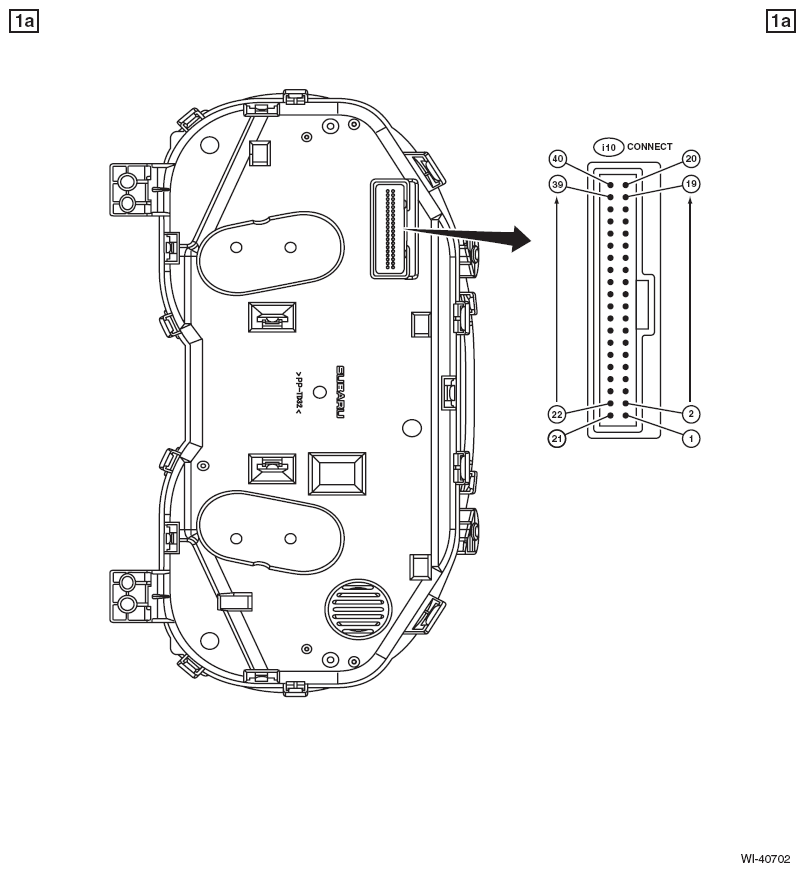

Fig 1: Normal Combination Meter System Wiring Diagram (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

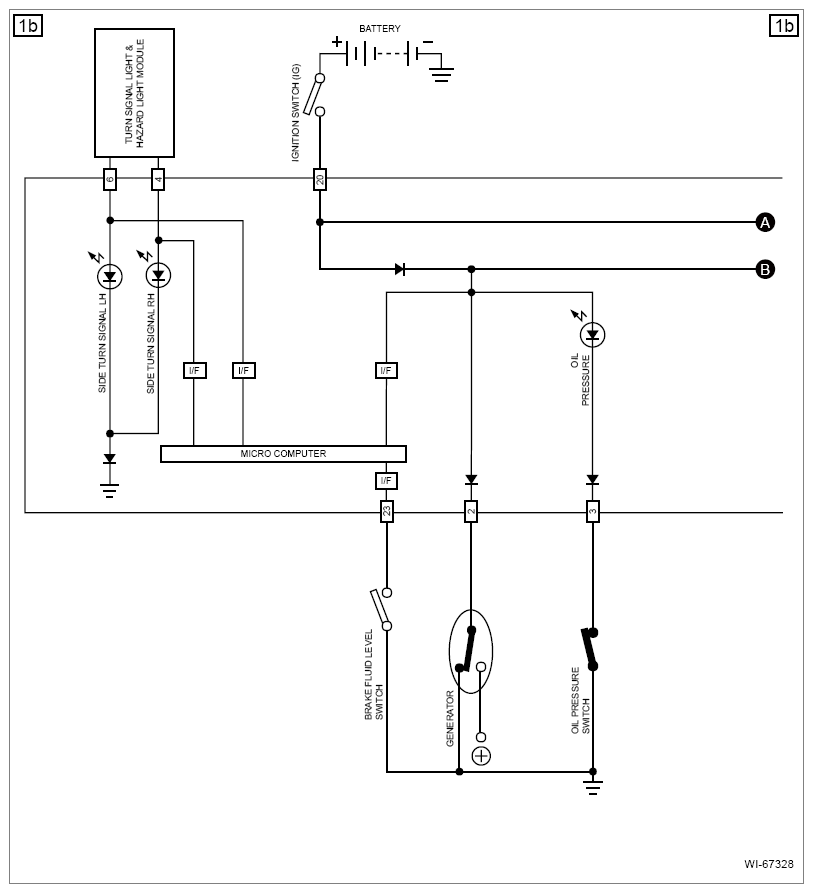

Fig 2: Normal Combination Meter System Wiring Diagram (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

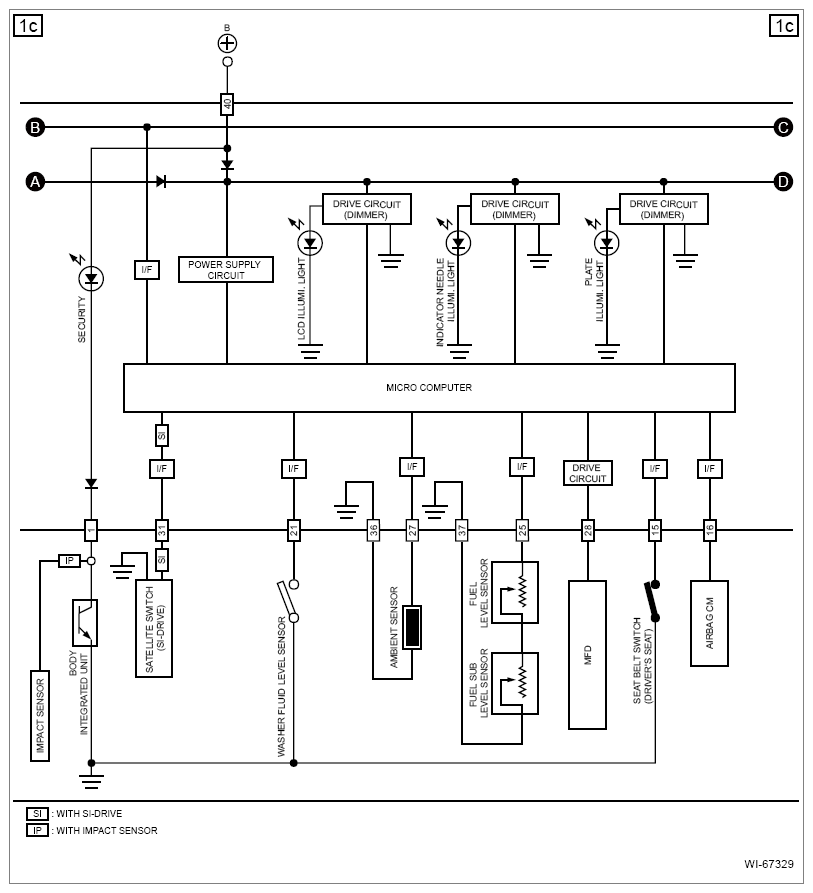

Fig 3: Normal Combination Meter System Wiring Diagram (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

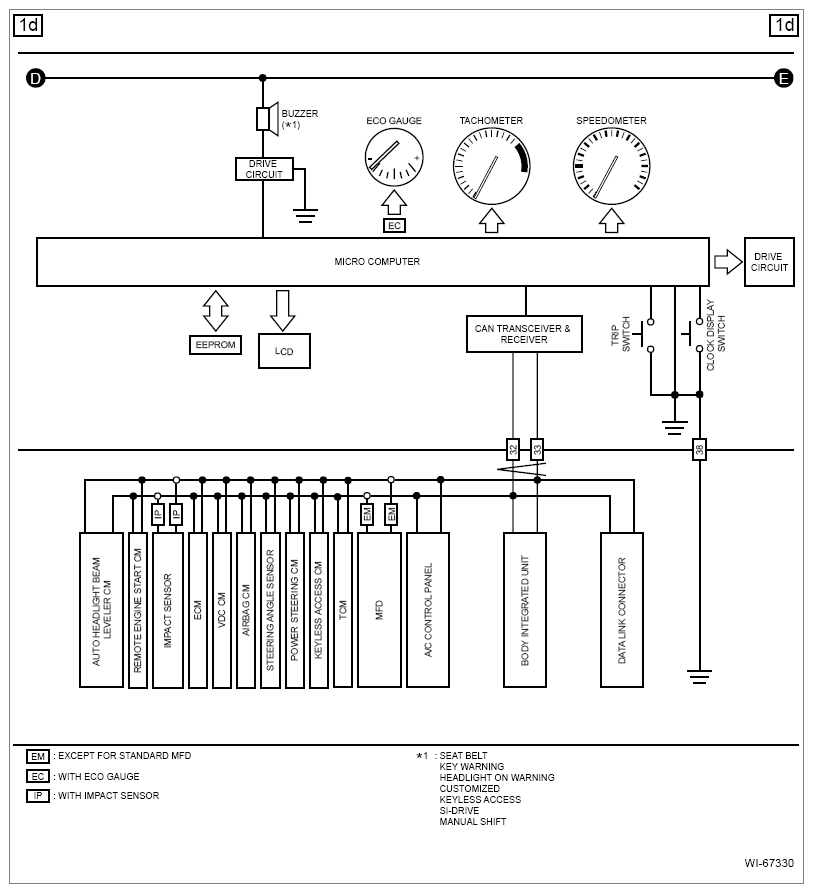

Fig 4: Normal Combination Meter System Wiring Diagram (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

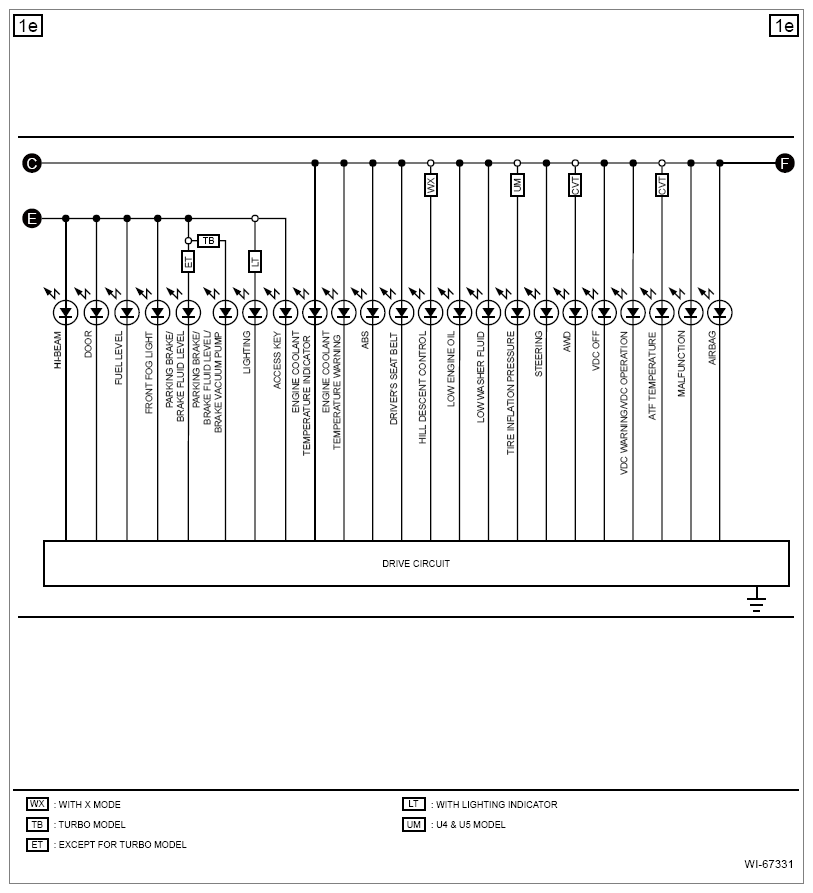

Fig 5: Normal Combination Meter System Wiring Diagram (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

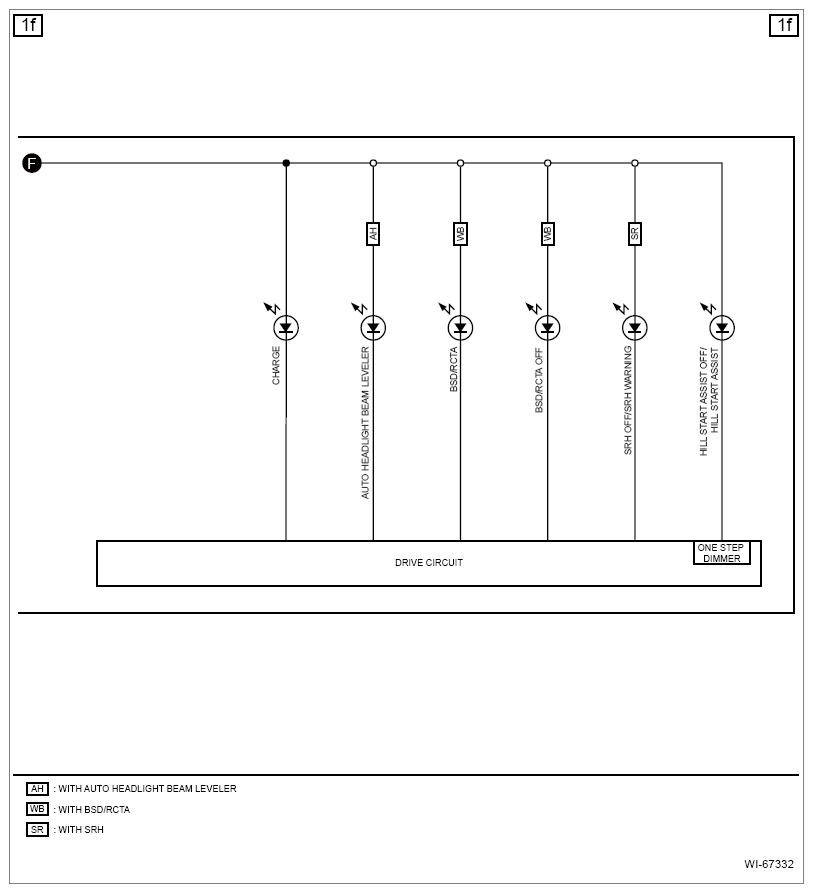

Fig 6: Normal Combination Meter System Wiring Diagram (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
