OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Combination Meter System
>>
Wiring Diagram
>>
Model With Luminescent Meter
Model With Luminescent Meter

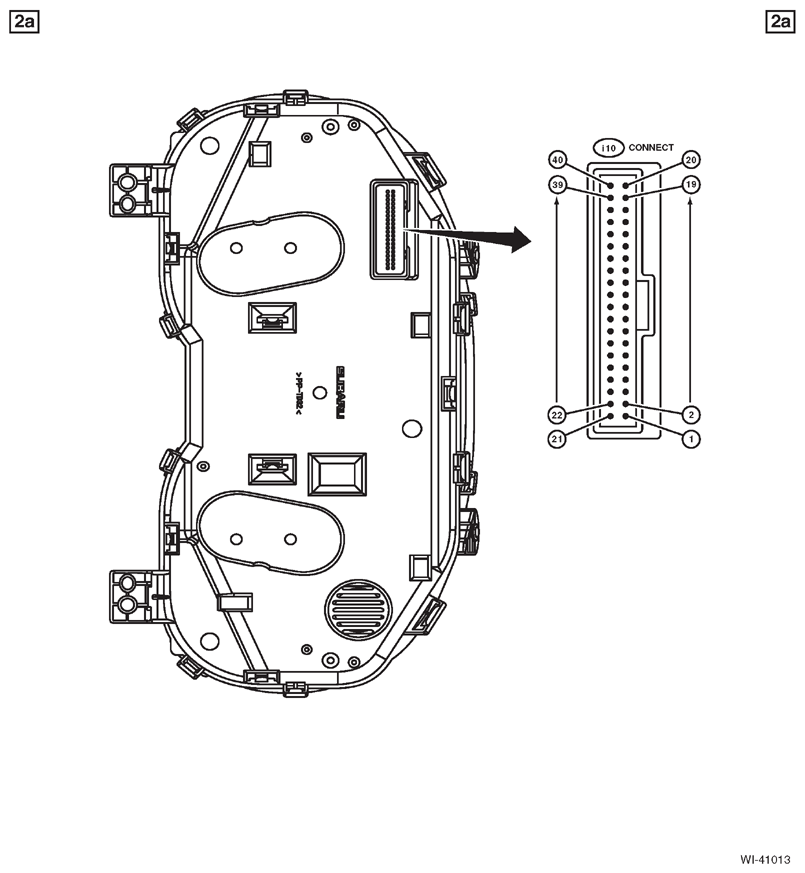

Fig 1: Luminescent Combination Meter System Wiring Diagram (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

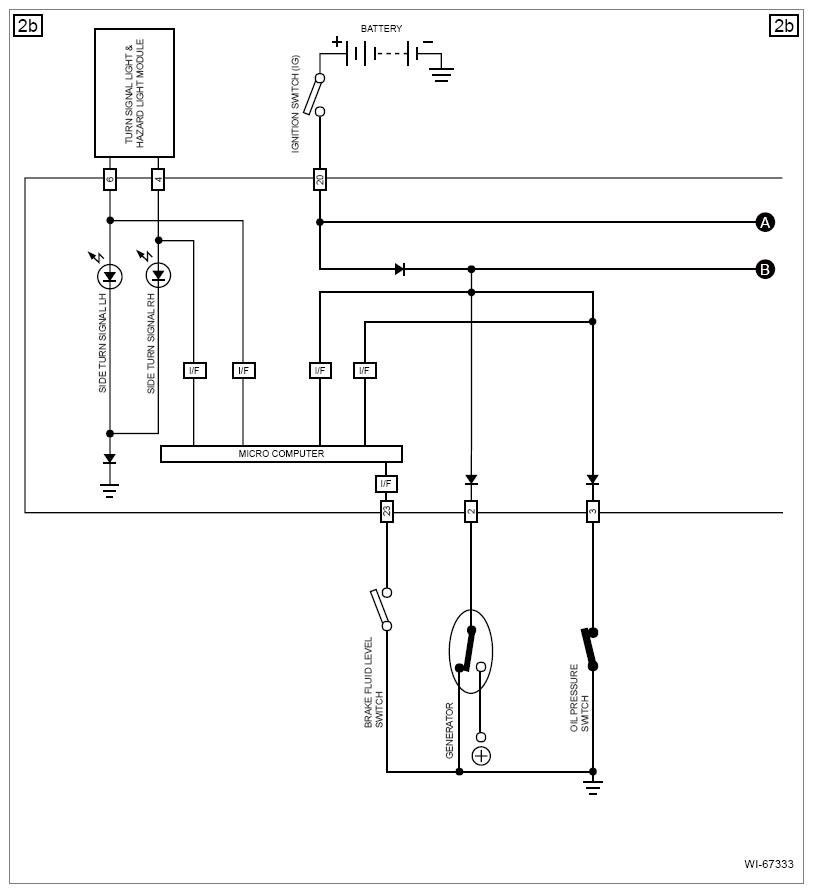

Fig 2: Luminescent Combination Meter System Wiring Diagram (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

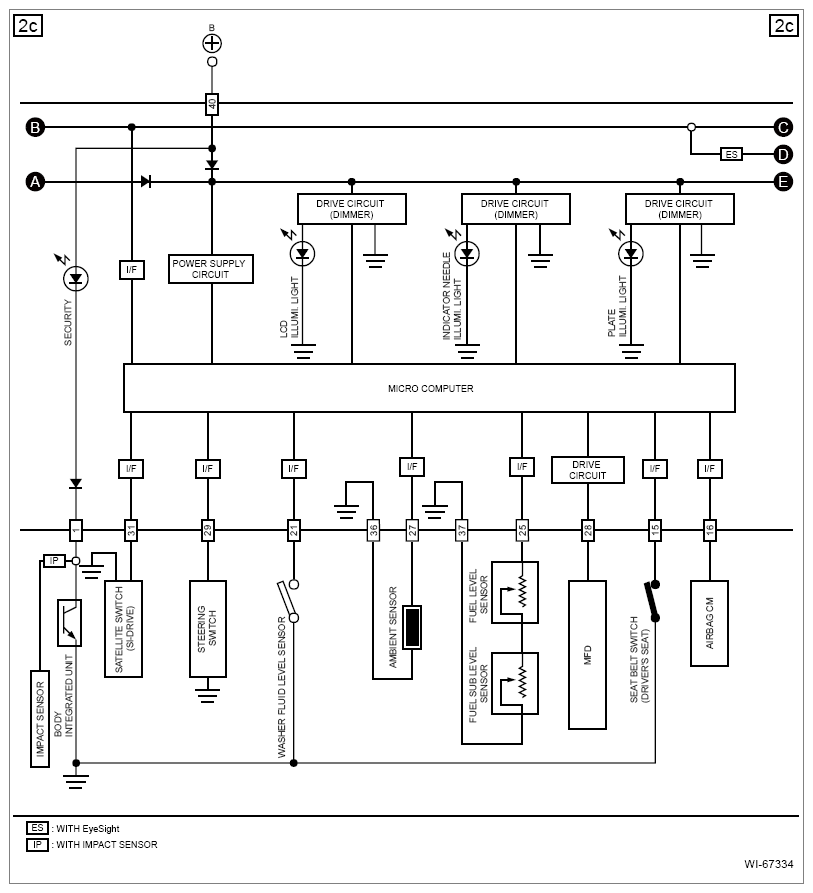

Fig 3: Luminescent Combination Meter System Wiring Diagram (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

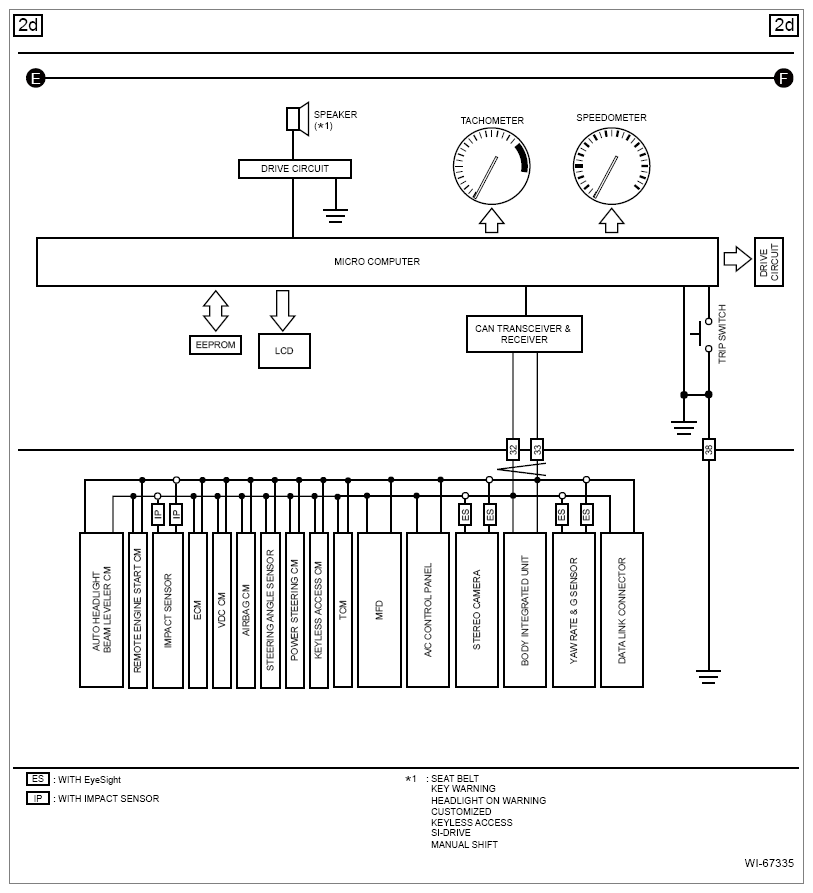

Fig 4: Luminescent Combination Meter System Wiring Diagram (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

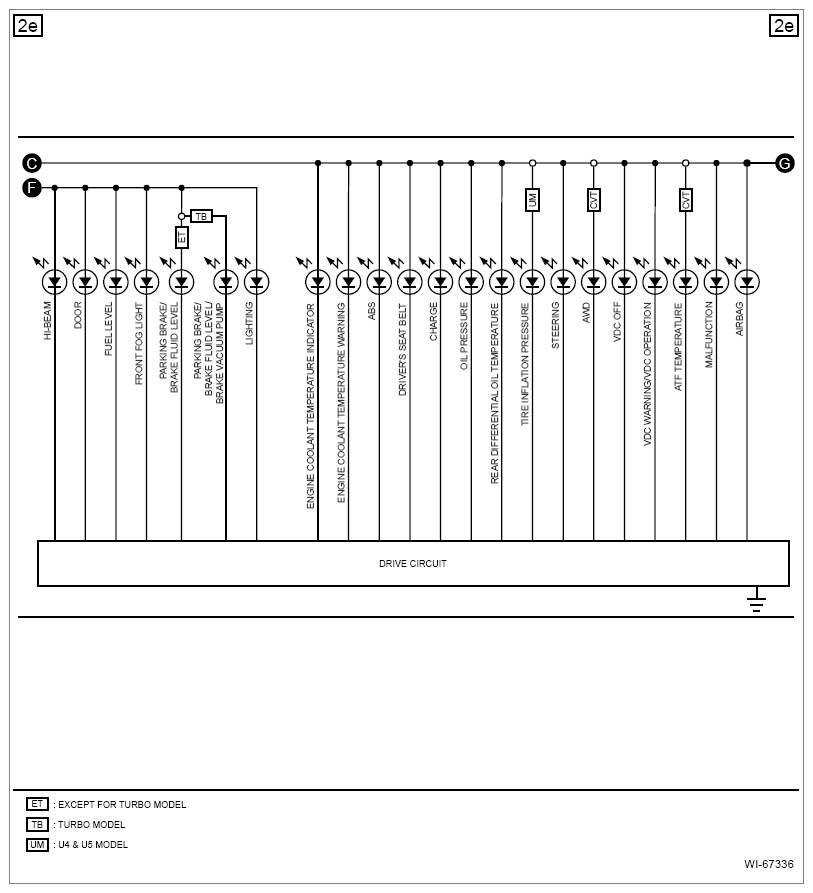

Fig 5: Luminescent Combination Meter System Wiring Diagram (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

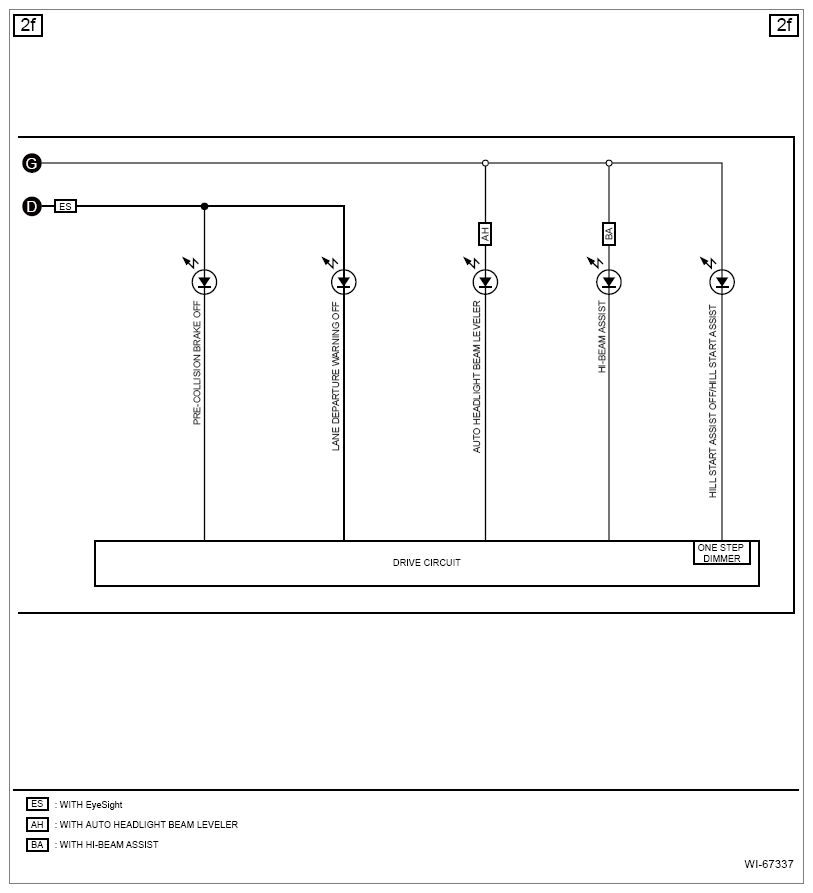

Fig 6: Luminescent Combination Meter System Wiring Diagram (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
