Front Combination Light Halogen Model

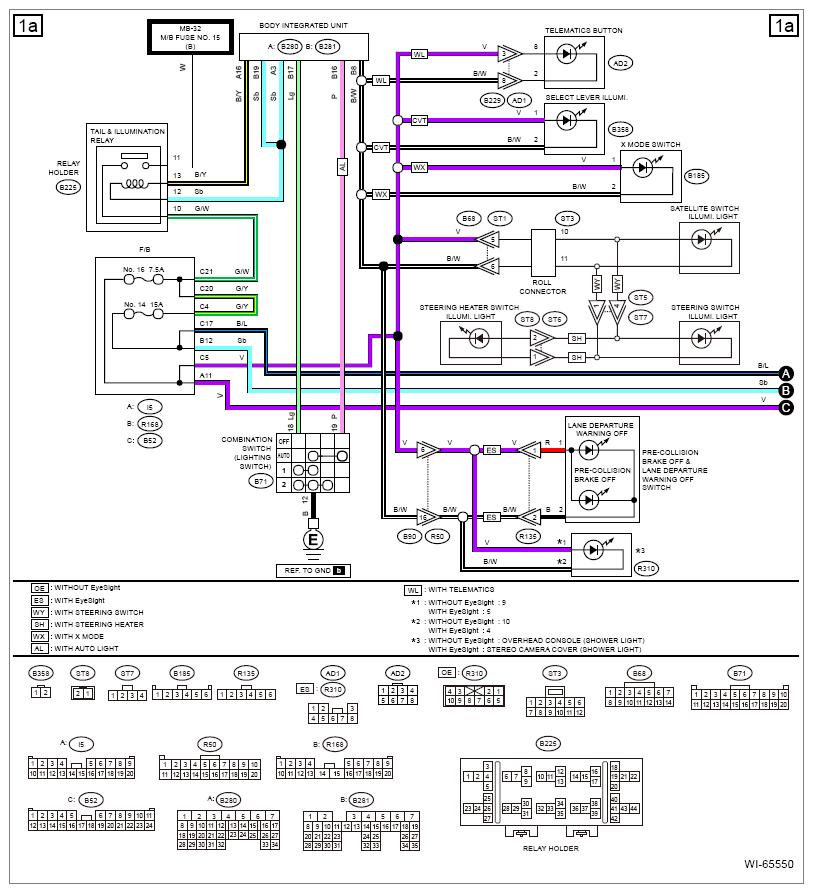

Fig 1: Front Combination Light Halogen Model Clearance And Illumination Light System Wiring Diagram (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

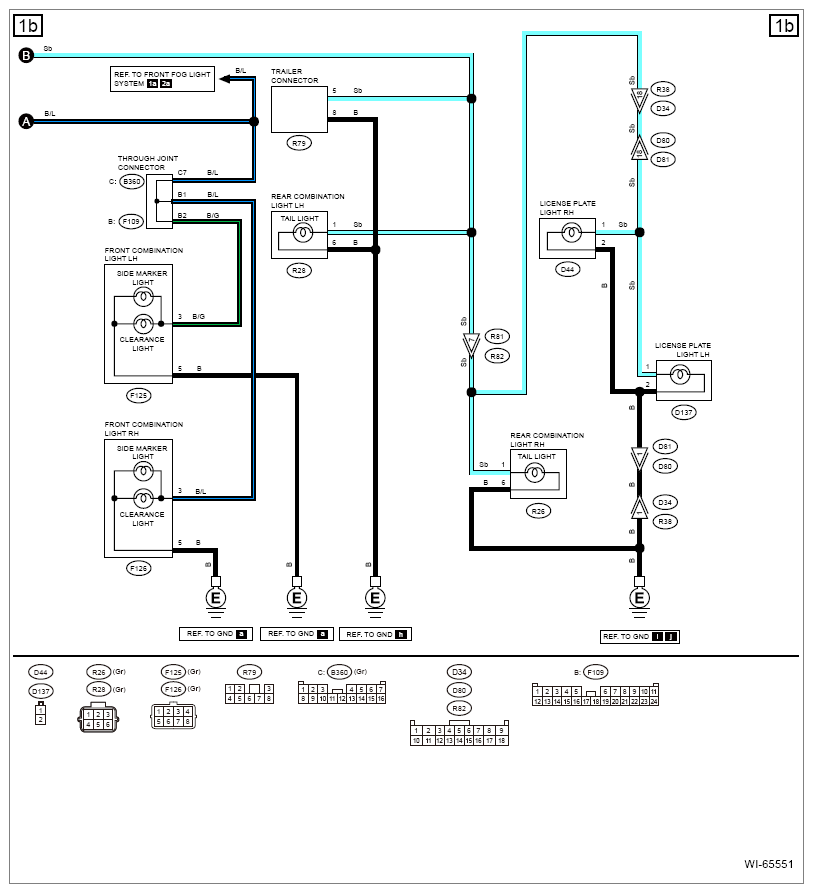

Fig 2: Front Combination Light Halogen Model Clearance And Illumination Light System Wiring Diagram (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

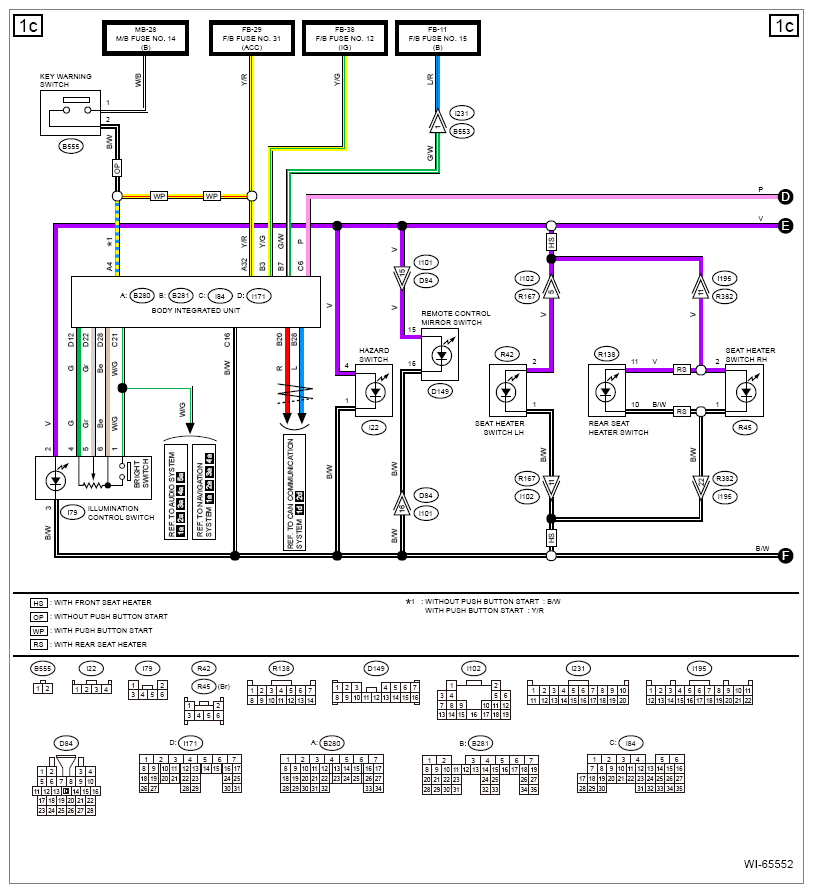

Fig 3: Front Combination Light Halogen Model Clearance And Illumination Light System Wiring Diagram (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

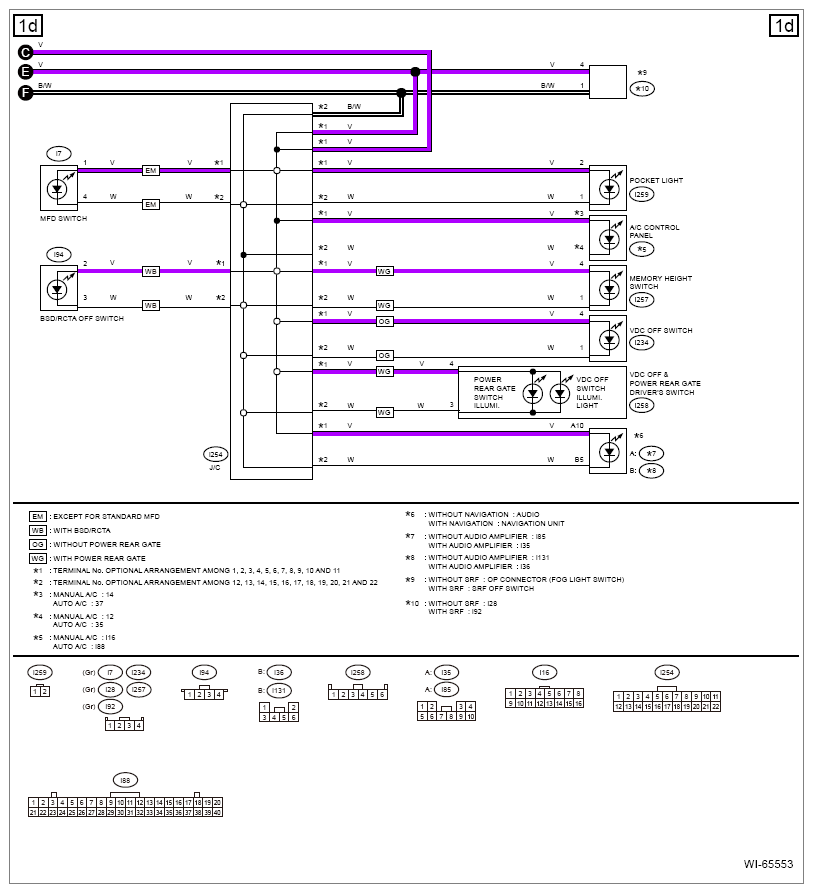

Fig 4: Front Combination Light Halogen Model Clearance And Illumination Light System Wiring Diagram (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

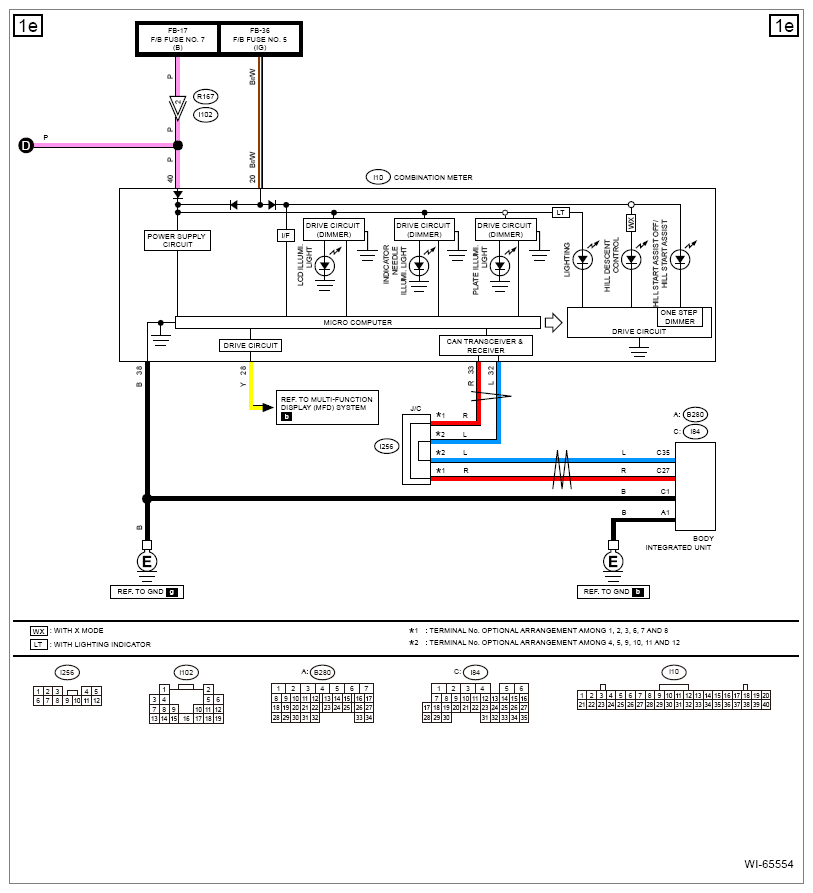

Fig 5: Front Combination Light Halogen Model Clearance And Illumination Light System Wiring Diagram (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
