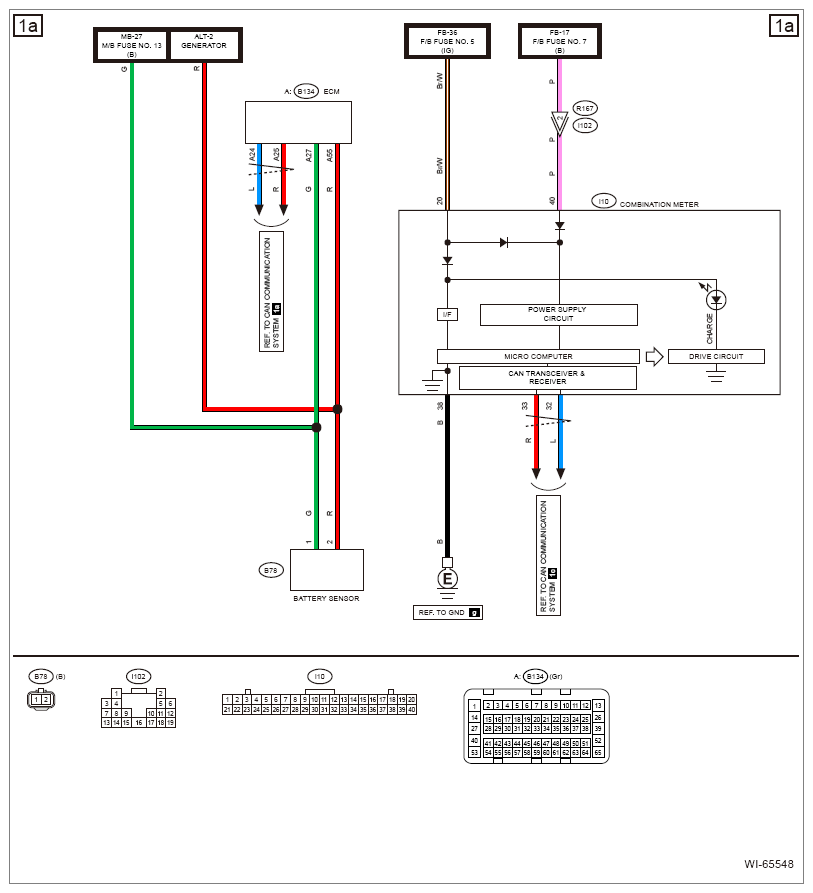

Home >> Subaru >> 2017 >> Forester 2.0XT Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations >> Charging System >> Wiring Diagram >> Non-Turbo Model
