Turbo Model

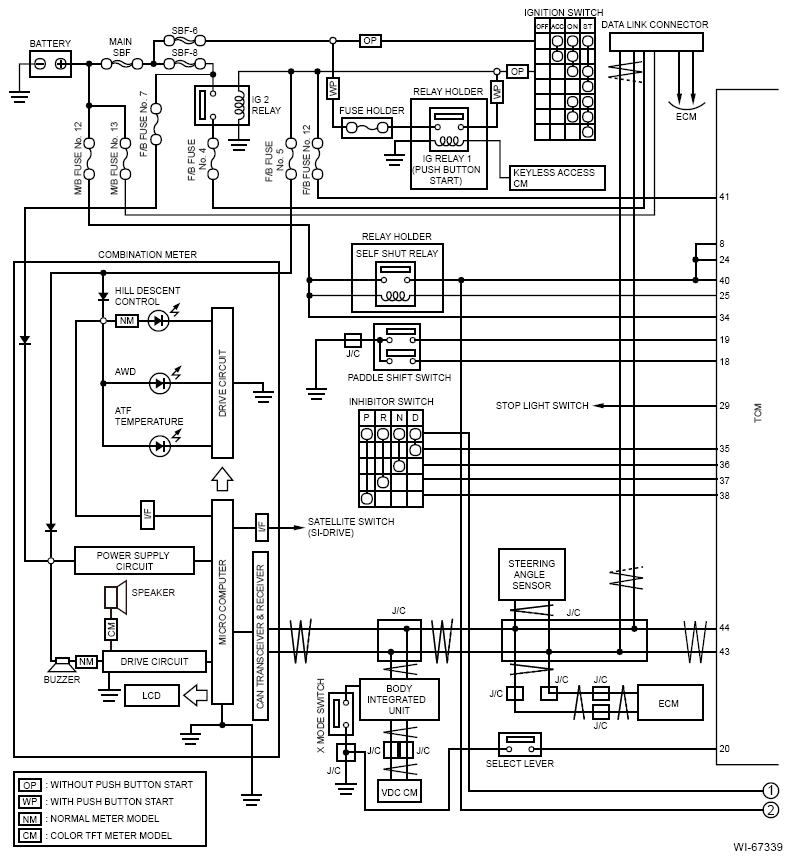

Fig 1: Turbo Model CVT Control System Wiring Diagram (1 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

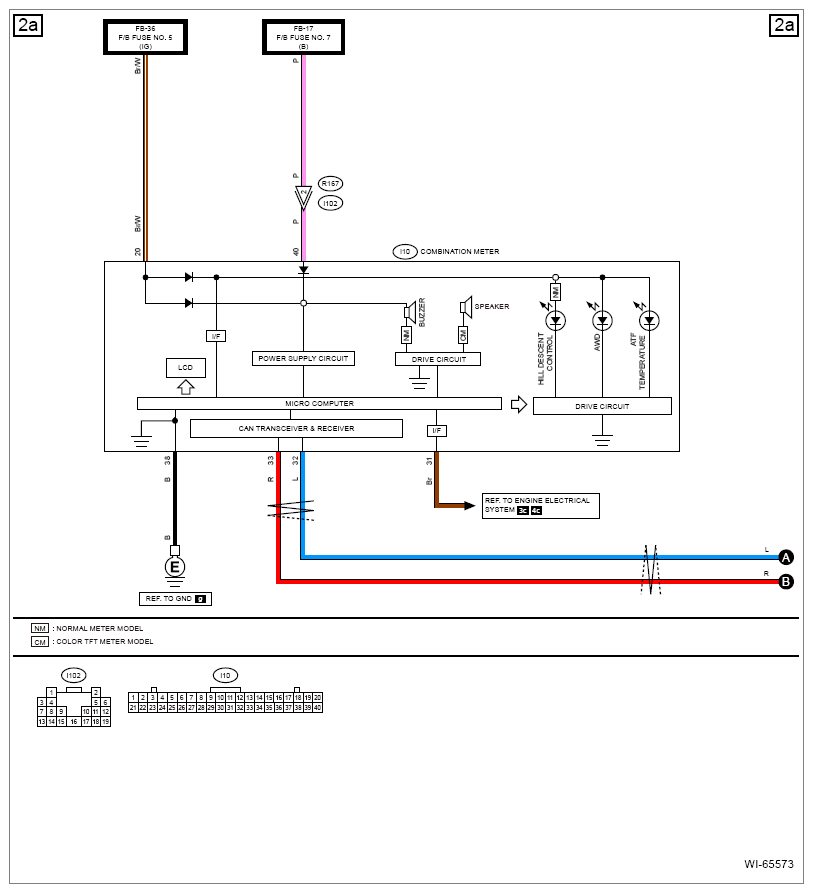

Fig 2: Turbo Model CVT Control System Wiring Diagram (2 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

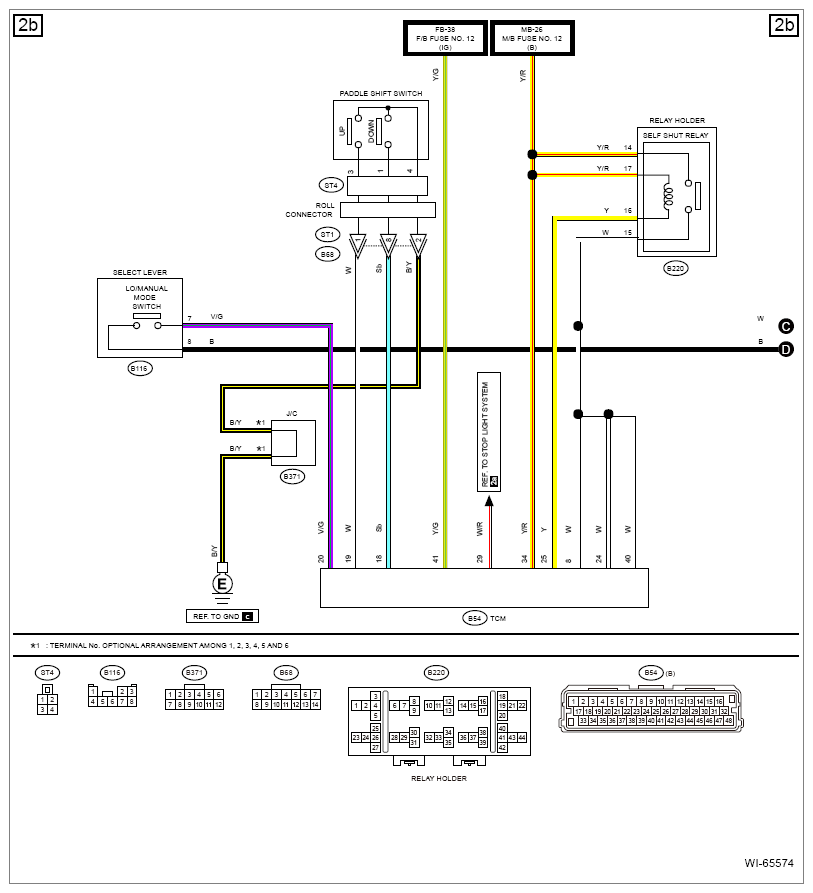

Fig 3: Turbo Model CVT Control System Wiring Diagram (3 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

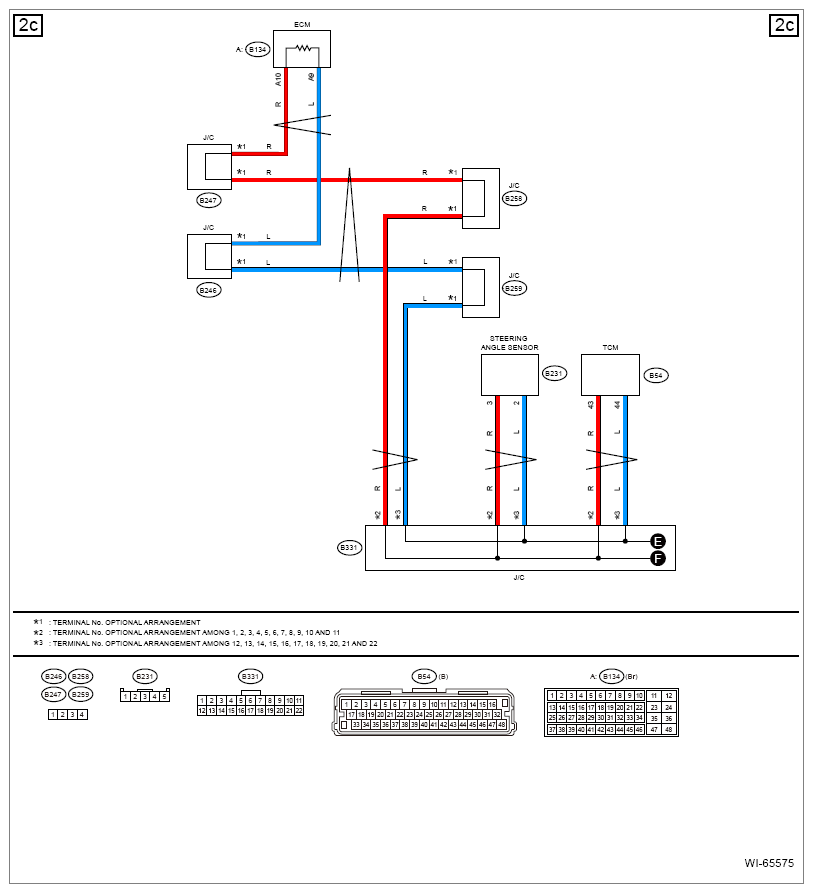

Fig 4: Turbo Model CVT Control System Wiring Diagram (4 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

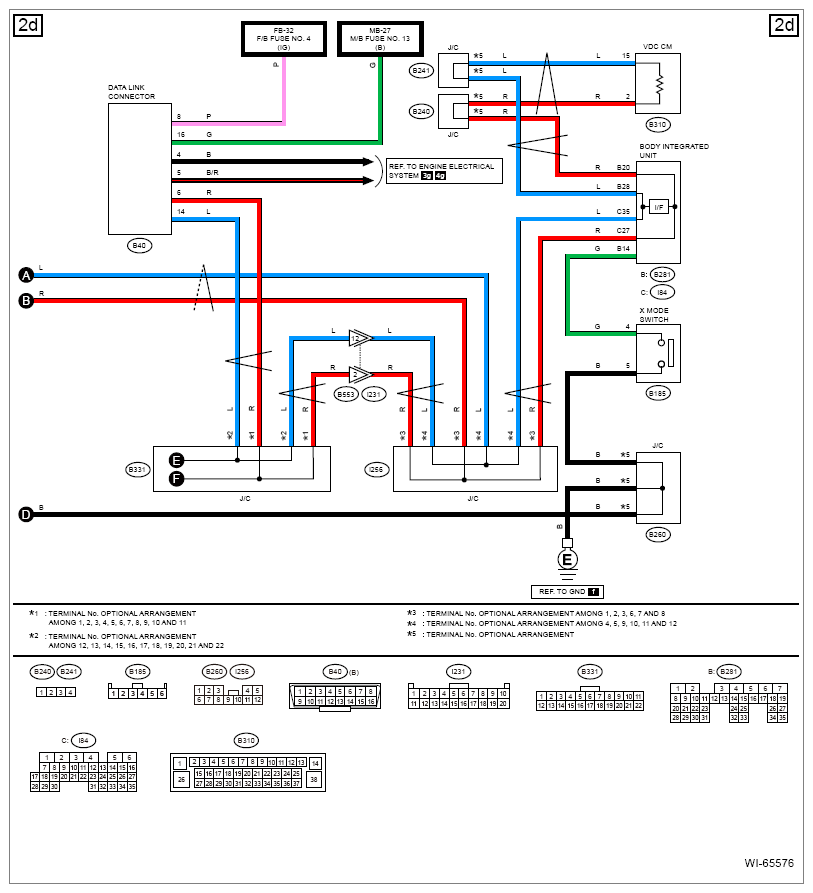

Fig 5: Turbo Model CVT Control System Wiring Diagram (5 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

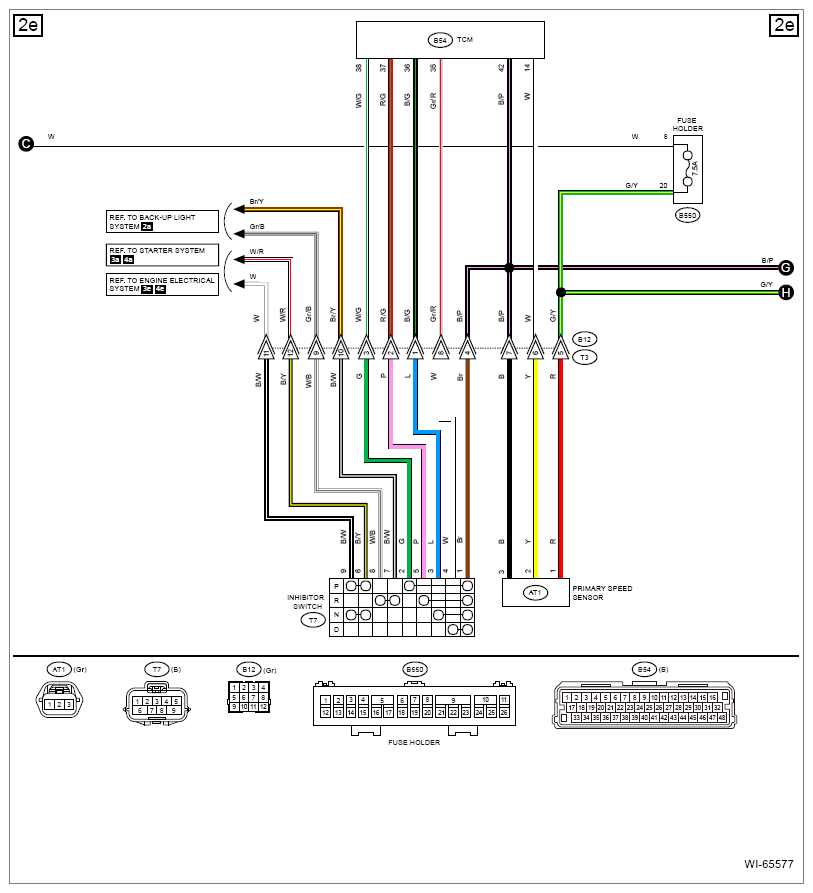

Fig 6: Turbo Model CVT Control System Wiring Diagram (6 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

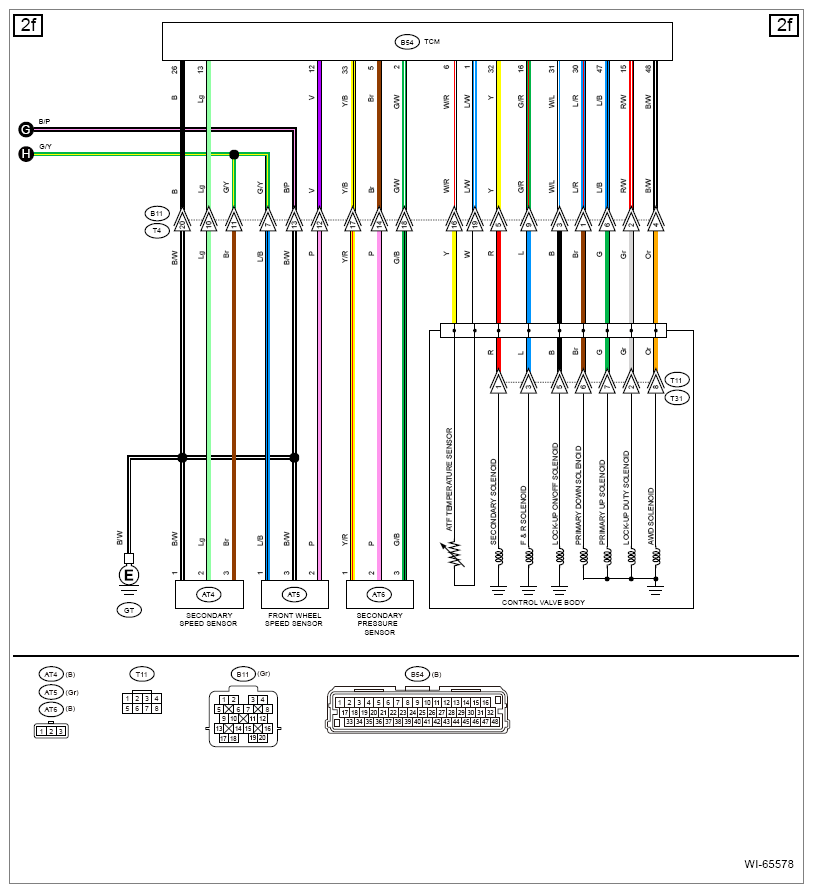

Fig 7: Turbo Model CVT Control System Wiring Diagram (7 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

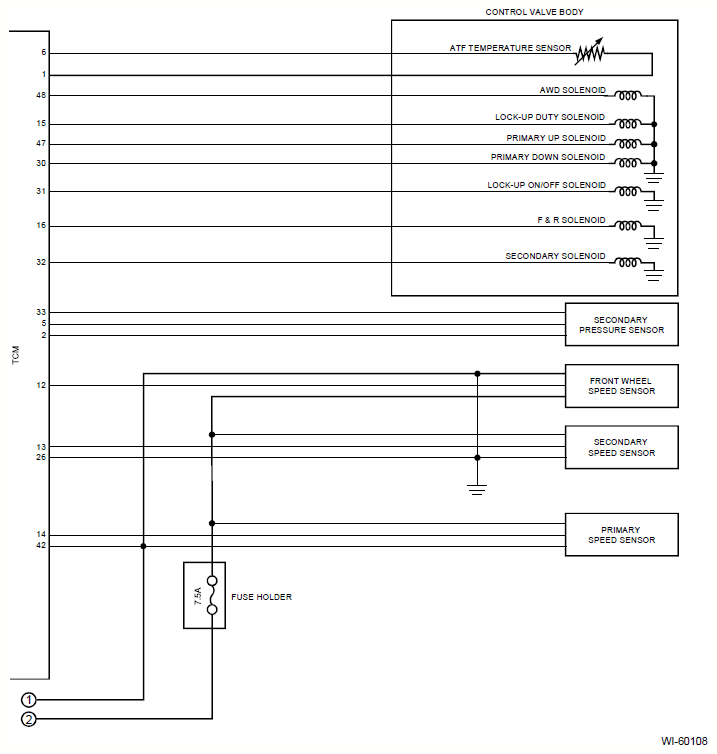

Fig 8: Turbo Model CVT Control System Wiring Diagram (8 Of 8)

Courtesy of SUBARU OF AMERICA, INC.
