Non-Turbo Model

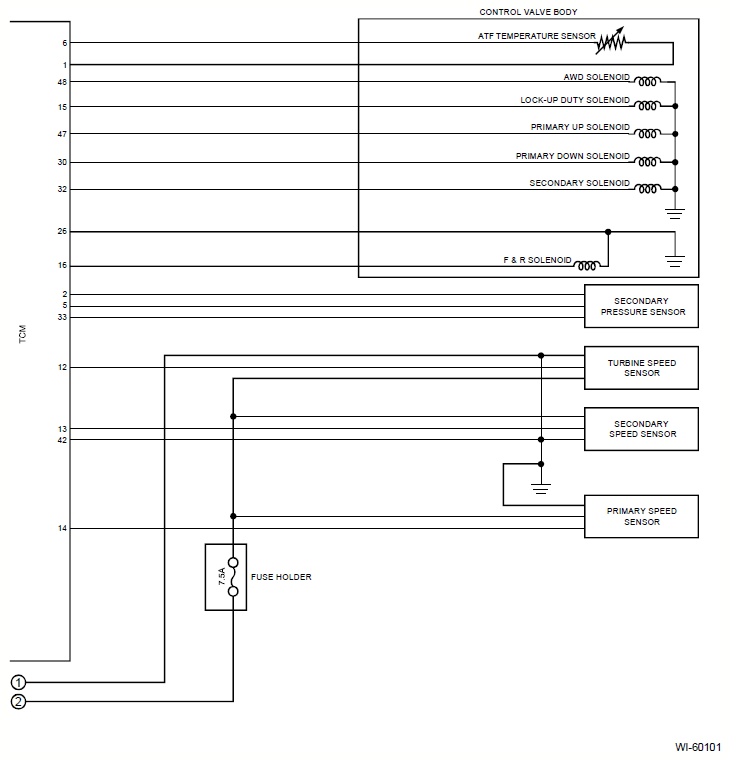

Fig 1: Non-Turbo Model CVT Control System Wiring Diagram (1 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

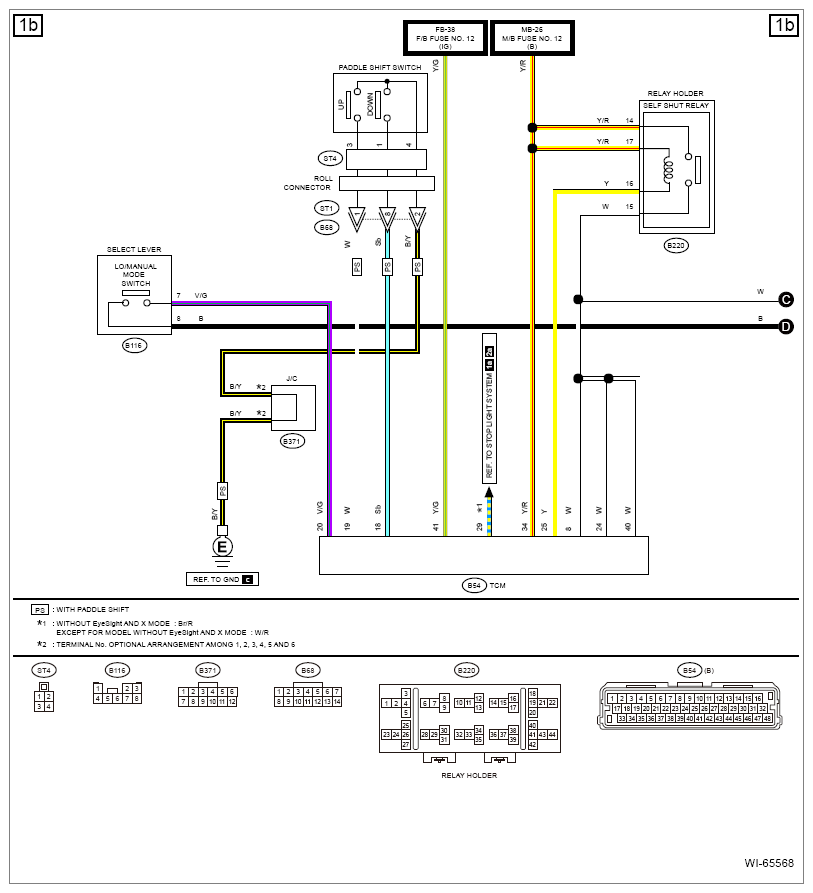

Fig 2: Non-Turbo Model CVT Control System Wiring Diagram (2 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

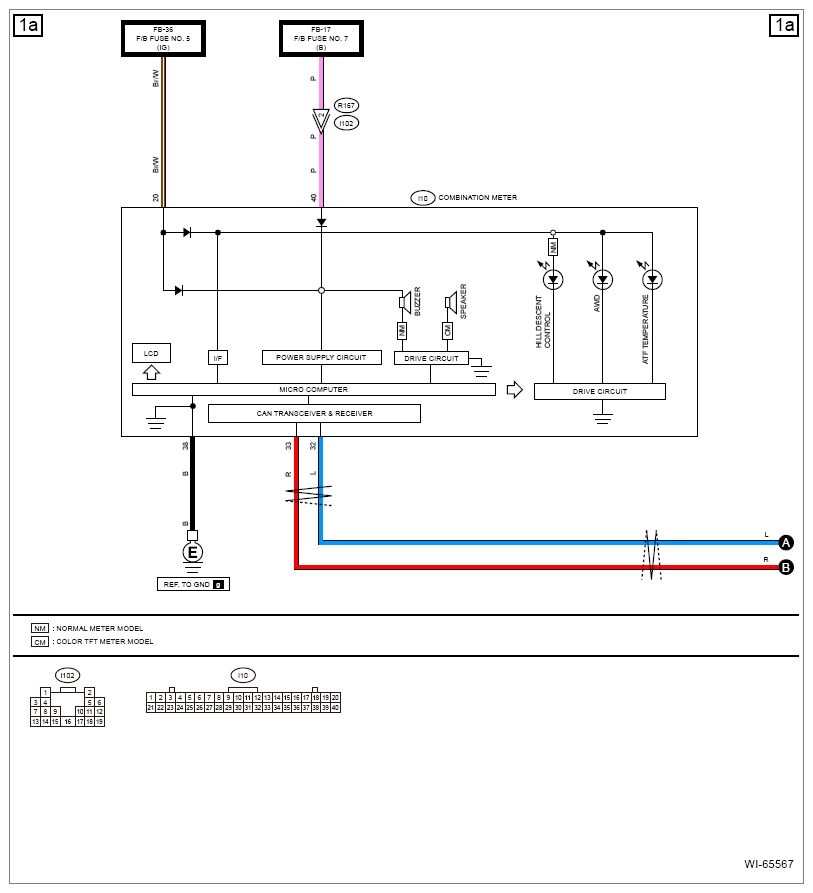

Fig 3: Non-Turbo Model CVT Control System Wiring Diagram (3 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

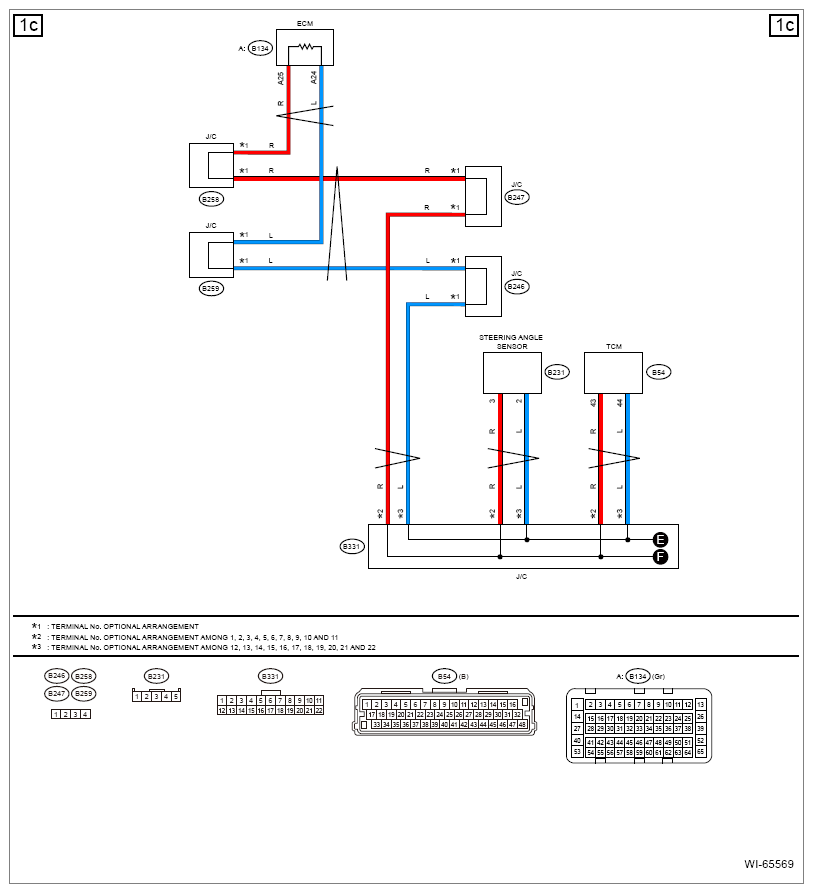

Fig 4: Non-Turbo Model CVT Control System Wiring Diagram (4 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

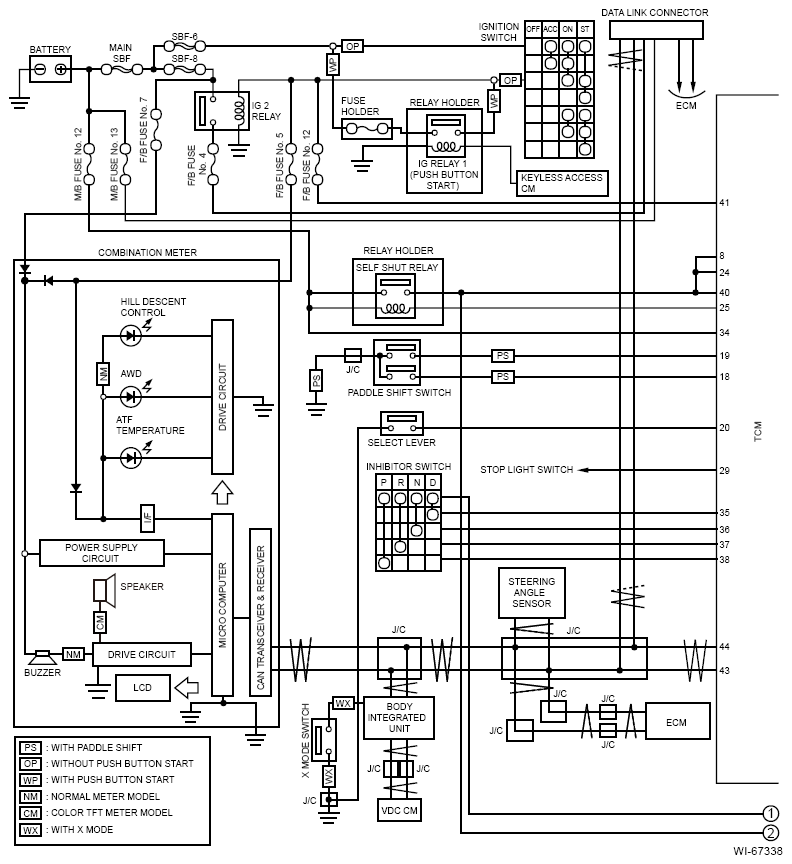

Fig 5: Non-Turbo Model CVT Control System Wiring Diagram (5 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

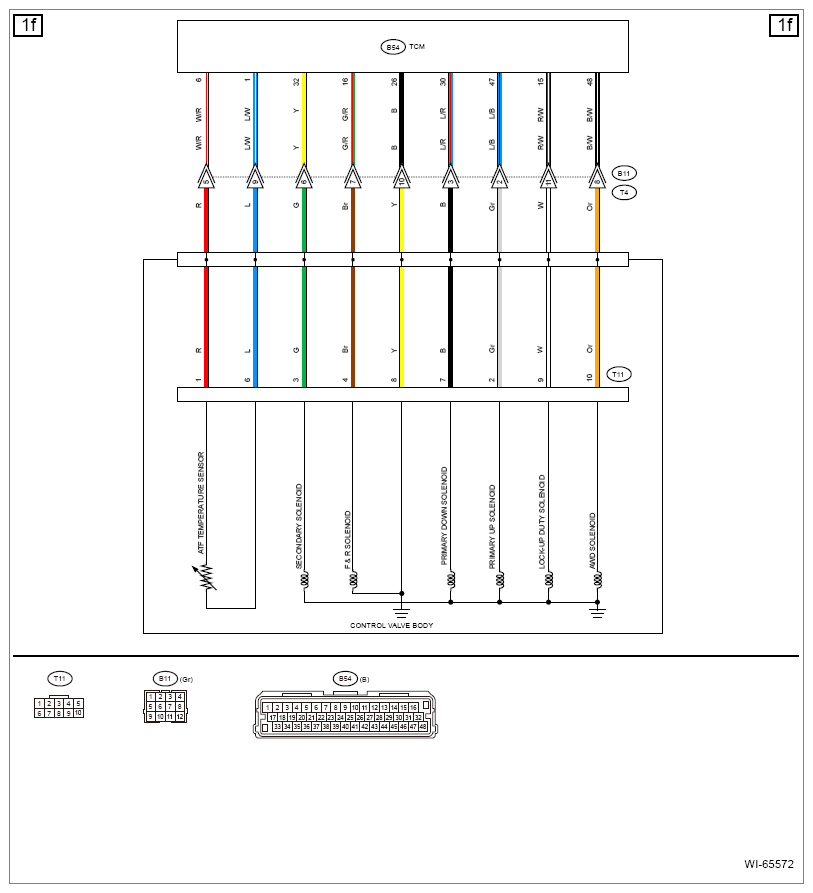

Fig 6: Non-Turbo Model CVT Control System Wiring Diagram (6 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

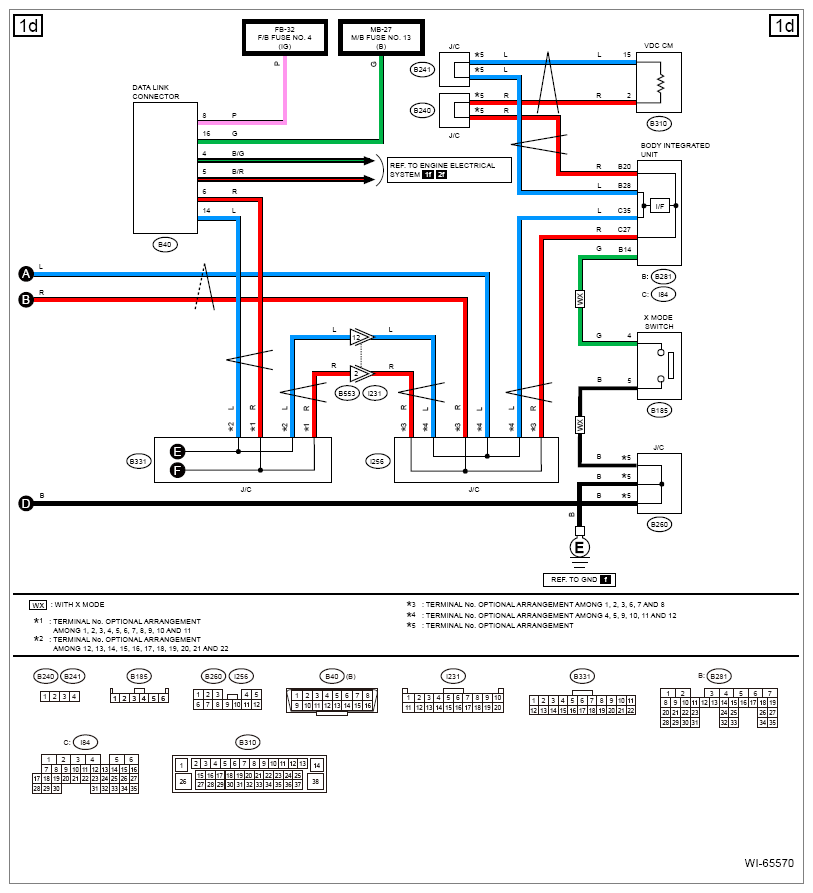

Fig 7: Non-Turbo Model CVT Control System Wiring Diagram (7 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

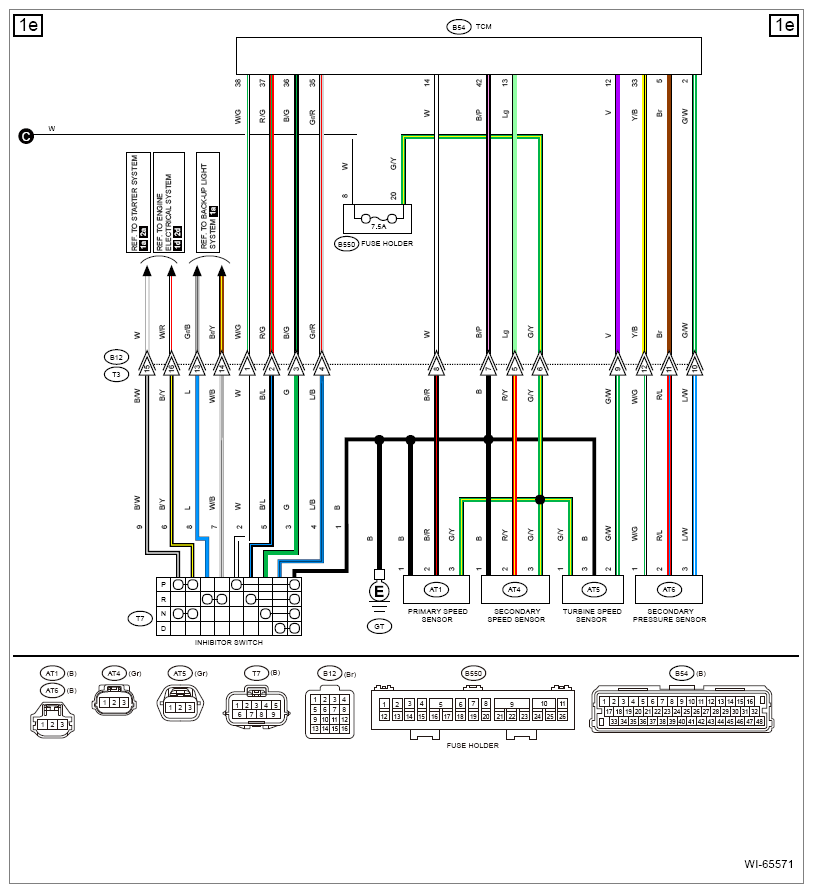

Fig 8: Non-Turbo Model CVT Control System Wiring Diagram (8 Of 8)

Courtesy of SUBARU OF AMERICA, INC.
