Non-Turbo Model

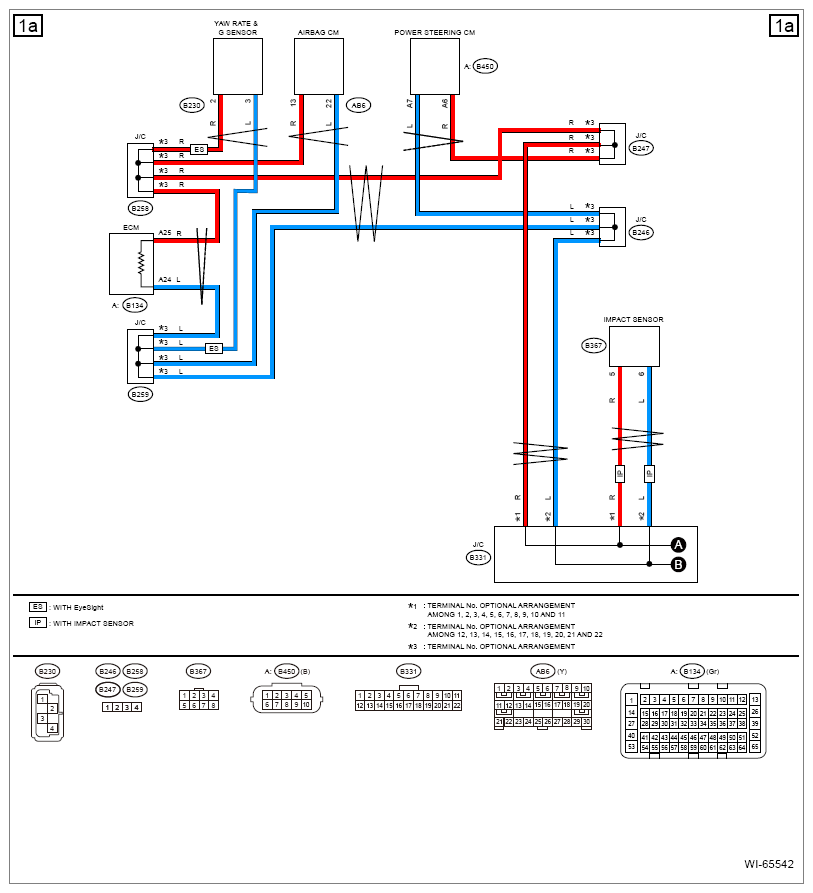

Fig 1: Non-Turbo Model CAN Communication System Wiring Diagram (1 Of 4)
G11272278Courtesy of SUBARU OF AMERICA, INC.

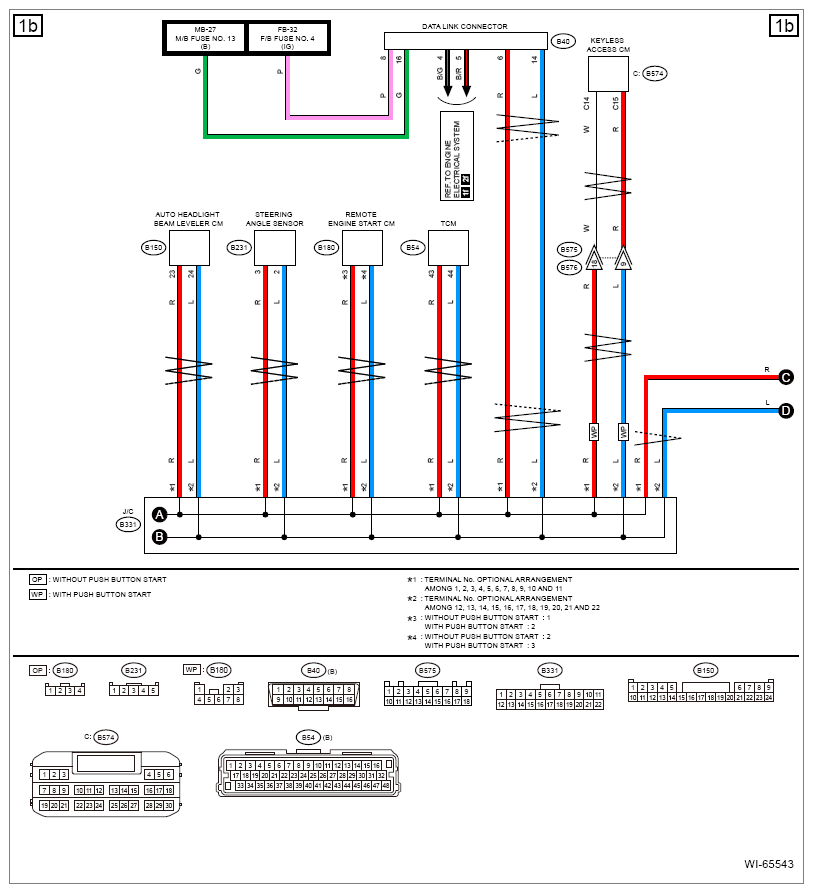

Fig 2: Non-Turbo Model CAN Communication System Wiring Diagram (2 Of 4)
G11272279Courtesy of SUBARU OF AMERICA, INC.

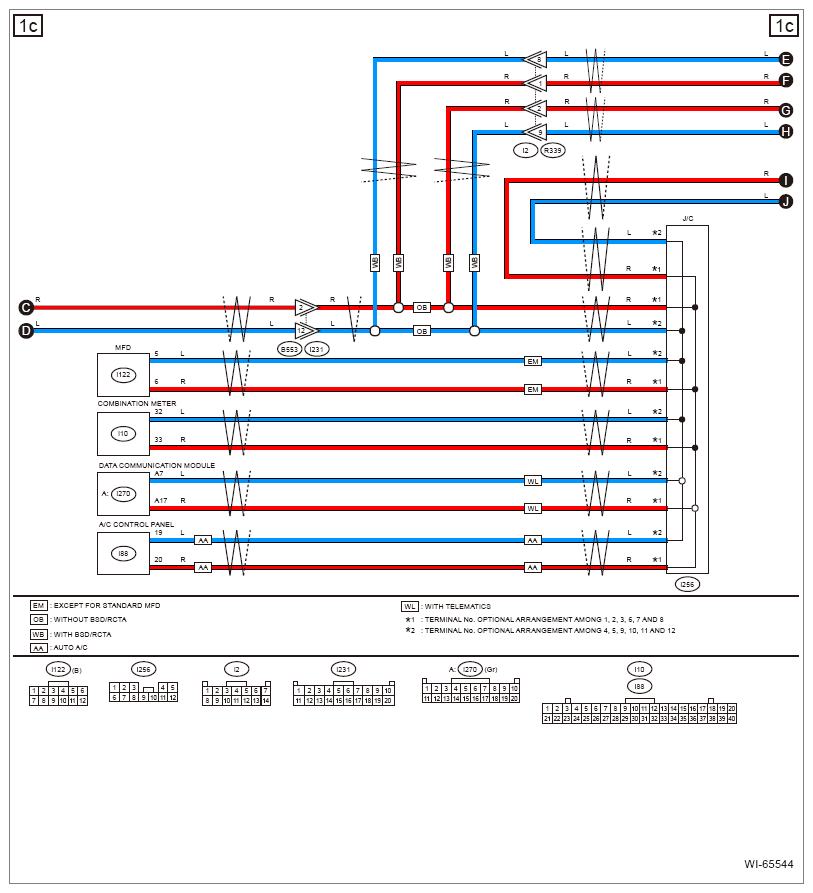

Fig 3: Non-Turbo Model CAN Communication System Wiring Diagram (3 Of 4)
G11272280Courtesy of SUBARU OF AMERICA, INC.

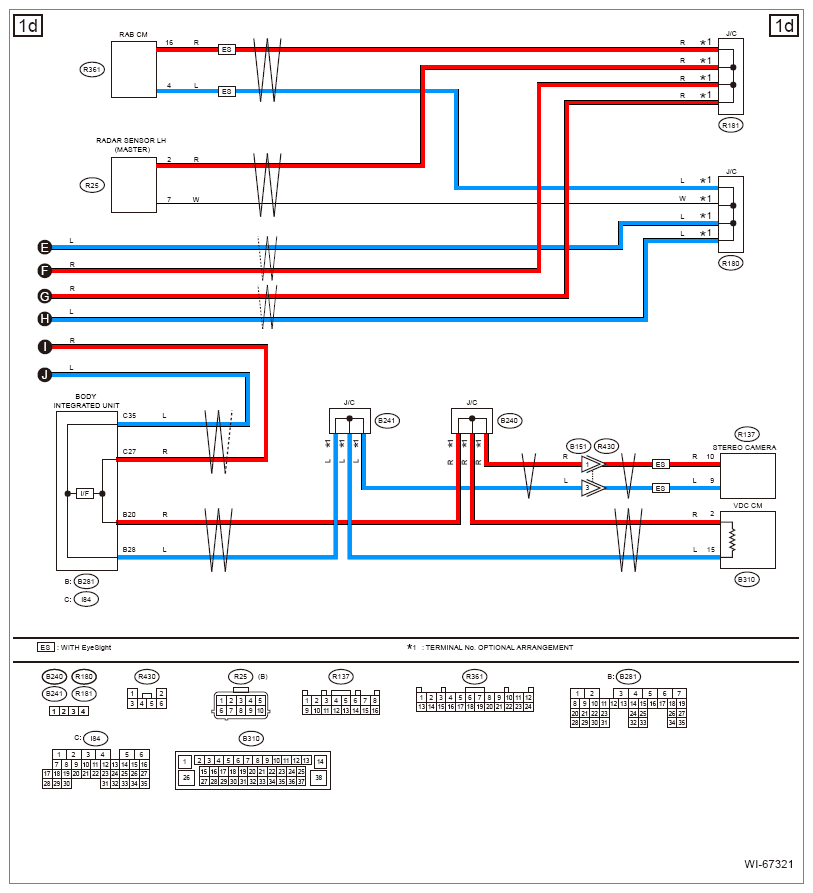

Fig 4: Non-Turbo Model CAN Communication System Wiring Diagram (4 Of 4)
G11272281Courtesy of SUBARU OF AMERICA, INC.
