How To Read Wiring Diagrams: Location

In this information, the location is classified in each harness, and the connector location is indicated using coordinates.

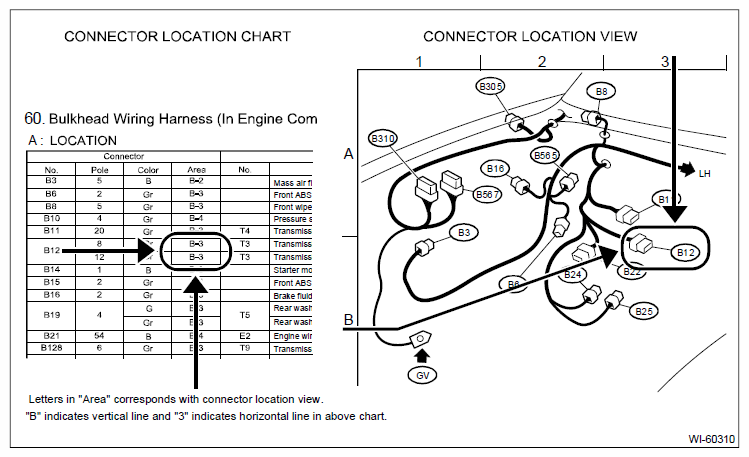

Fig 1: Locating Connector And Harness Locations

Courtesy of SUBARU OF AMERICA, INC.

• The following connector symbols are used to easily identify the connectors.
  Fig 2: Identifying Connector Identification Symbols

  Courtesy of SUBARU OF AMERICA, INC.
• The ground point is indicated as follows.
  Fig 3: Locating Ground Point

  Courtesy of SUBARU OF AMERICA, INC.
