7 Inch Display (Without Audio Amplifier, With Telematics)

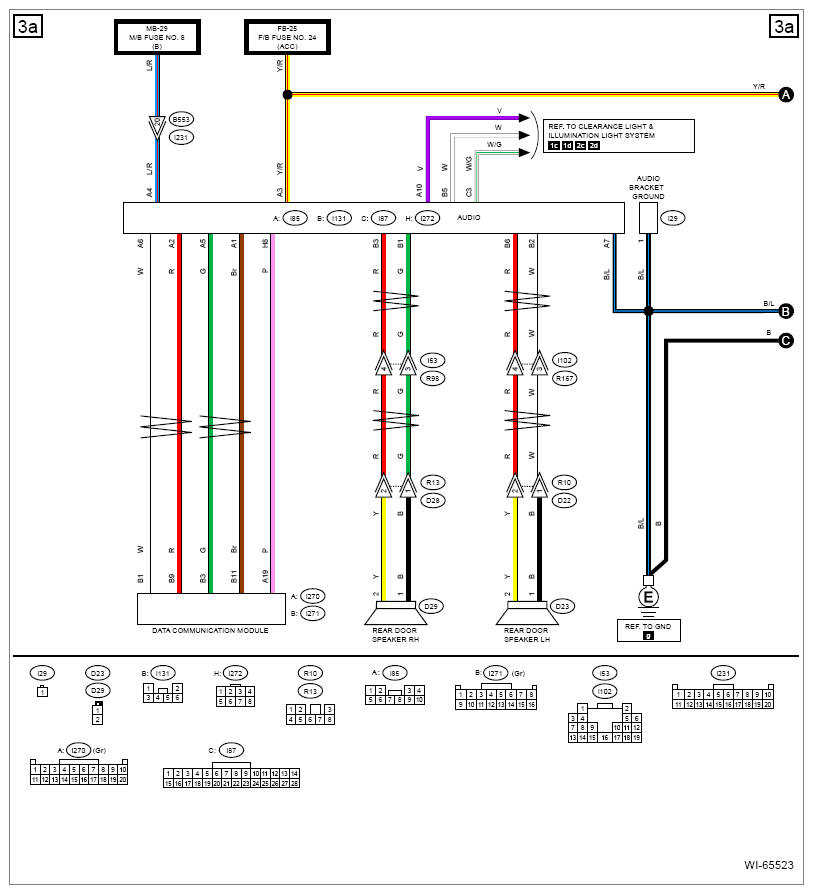

Fig 1: 7 Inch Display Without Audio Amplifier/With Telematics Audio System Wiring Diagram (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: 7 Inch Display Without Audio Amplifier/With Telematics Audio System Wiring Diagram (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: 7 Inch Display Without Audio Amplifier/With Telematics Audio System Wiring Diagram (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: 7 Inch Display Without Audio Amplifier/With Telematics Audio System Wiring Diagram (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: 7 Inch Display Without Audio Amplifier/With Telematics Audio System Wiring Diagram (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
