7 Inch Display (With Audio Amplifier, With Telematics)

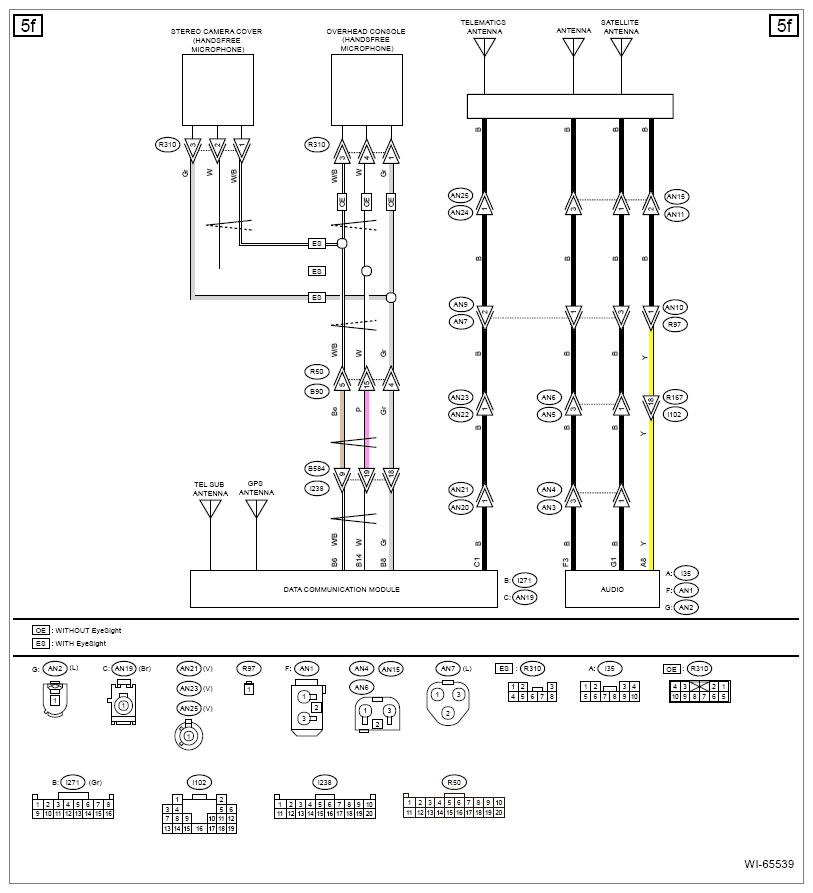

Fig 1: 7 Inch Display With Audio Amplifier/Telematics Audio System Wiring Diagram (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

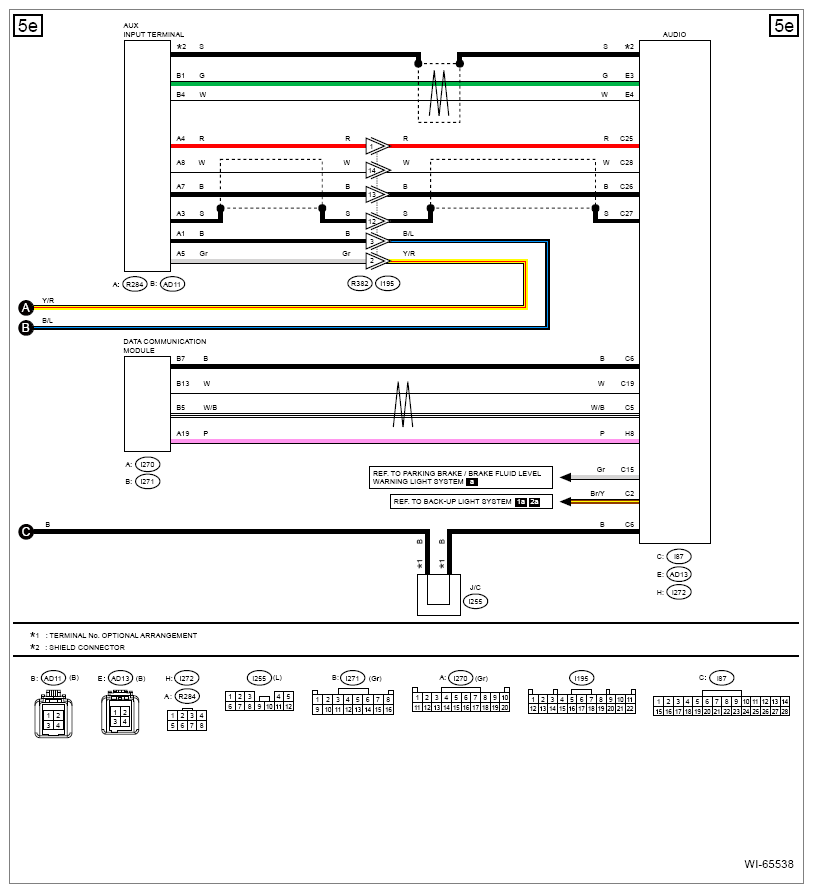

Fig 2: 7 Inch Display With Audio Amplifier/Telematics Audio System Wiring Diagram (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

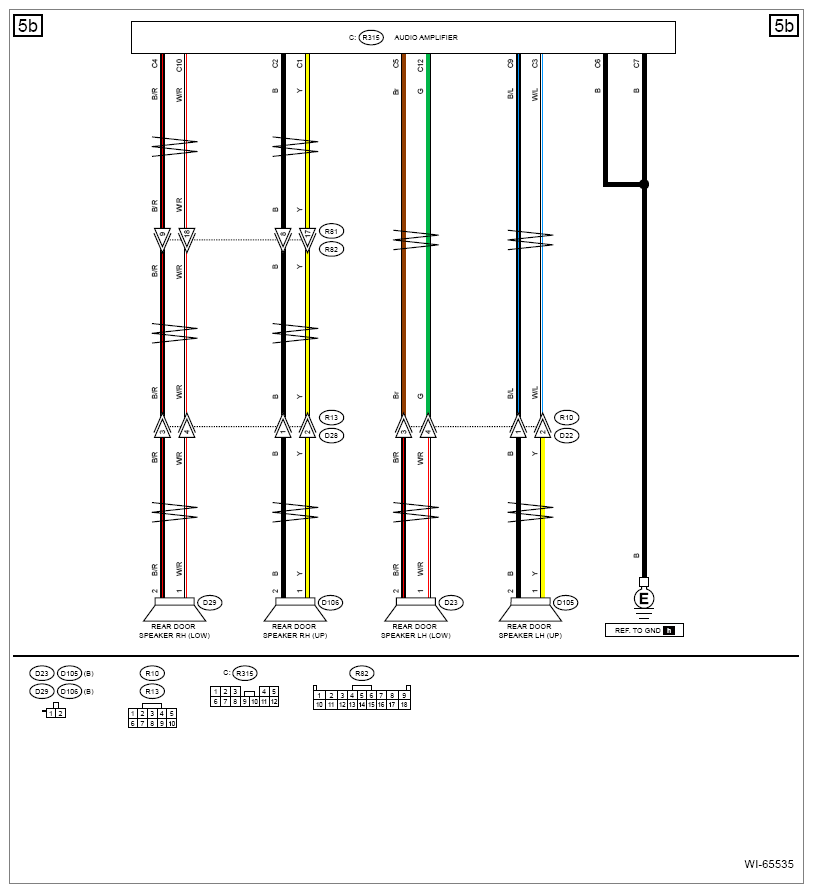

Fig 3: 7 Inch Display With Audio Amplifier/Telematics Audio System Wiring Diagram (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

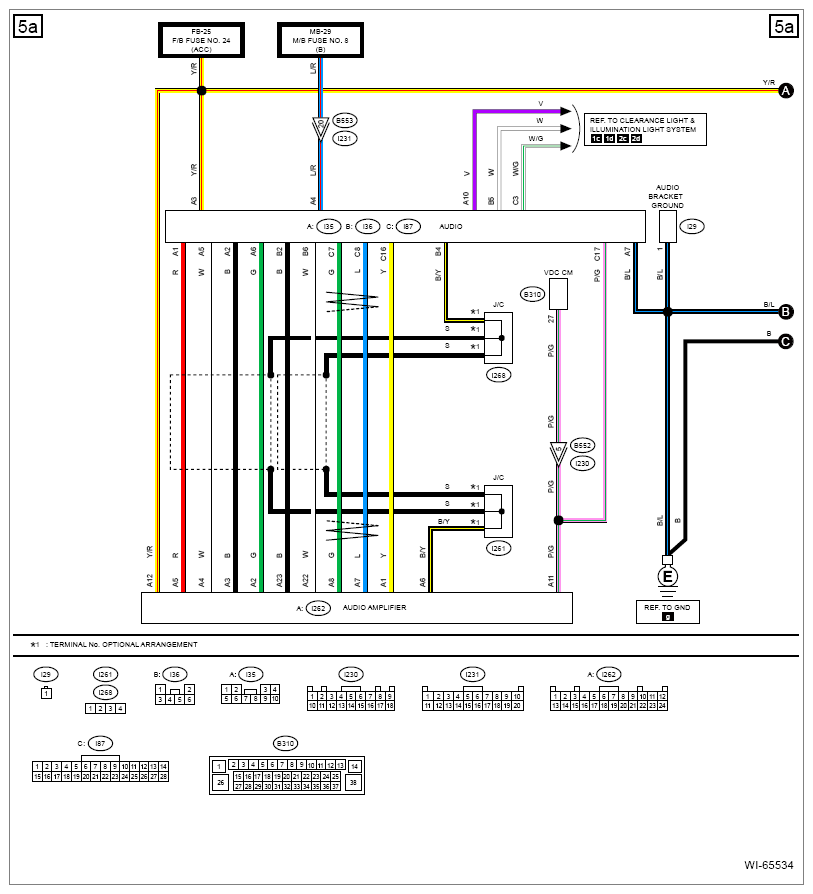

Fig 4: 7 Inch Display With Audio Amplifier/Telematics Audio System Wiring Diagram (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

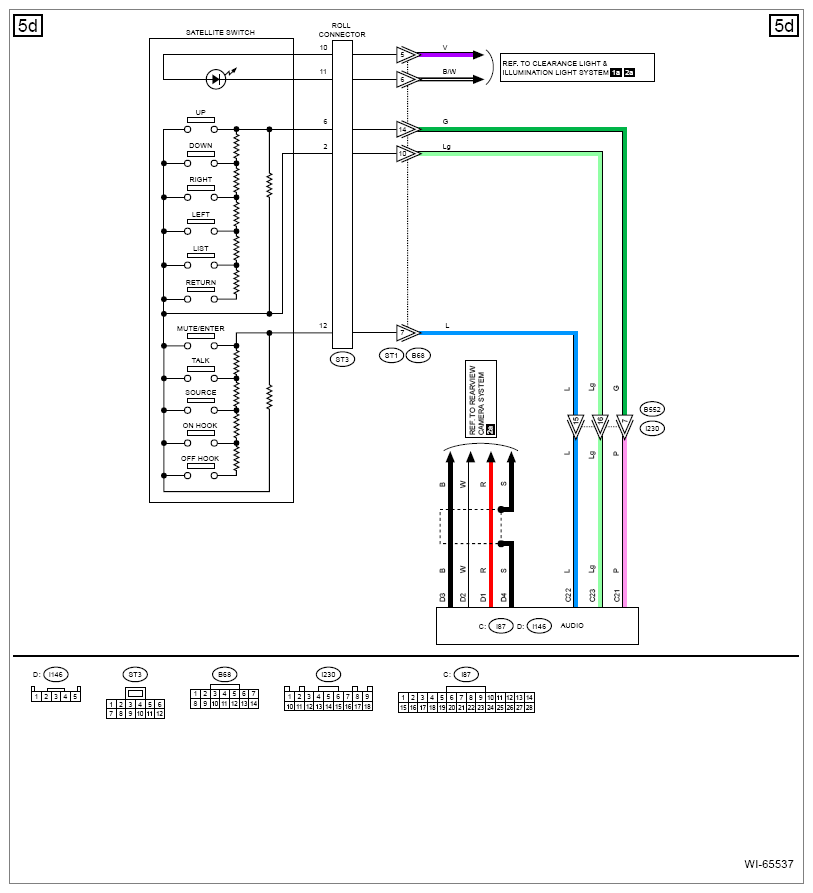

Fig 5: 7 Inch Display With Audio Amplifier/Telematics Audio System Wiring Diagram (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

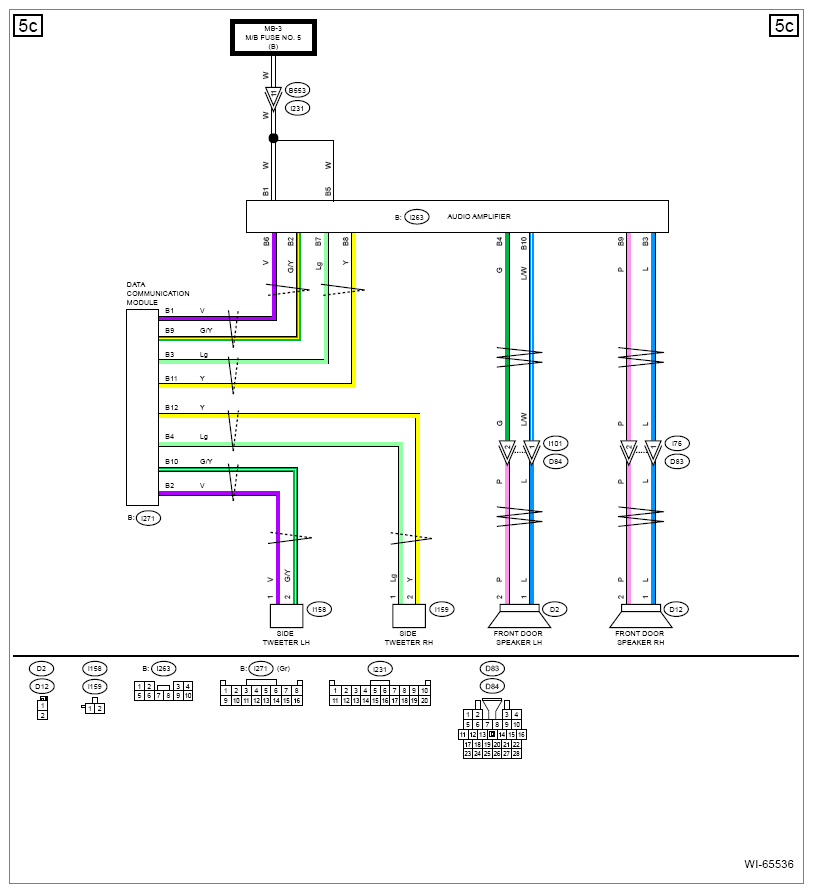

Fig 6: 7 Inch Display With Audio Amplifier/Telematics Audio System Wiring Diagram (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
