6.2 Inch Display
6.2 Inch Display

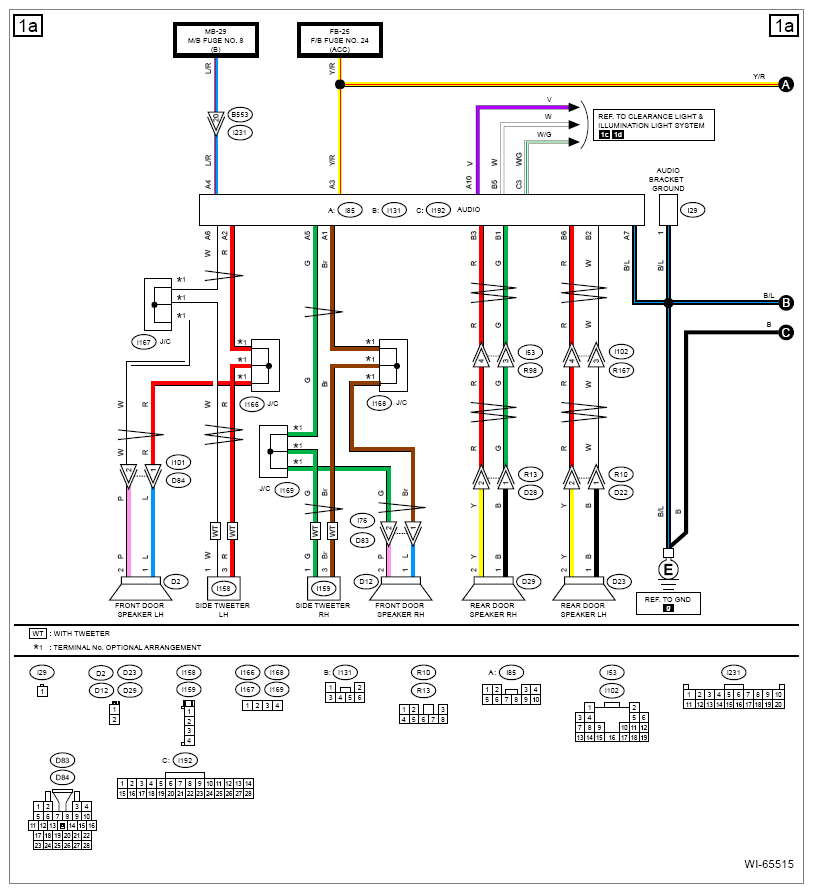

Fig 1: 6.2 Inch Display Audio System Wiring Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

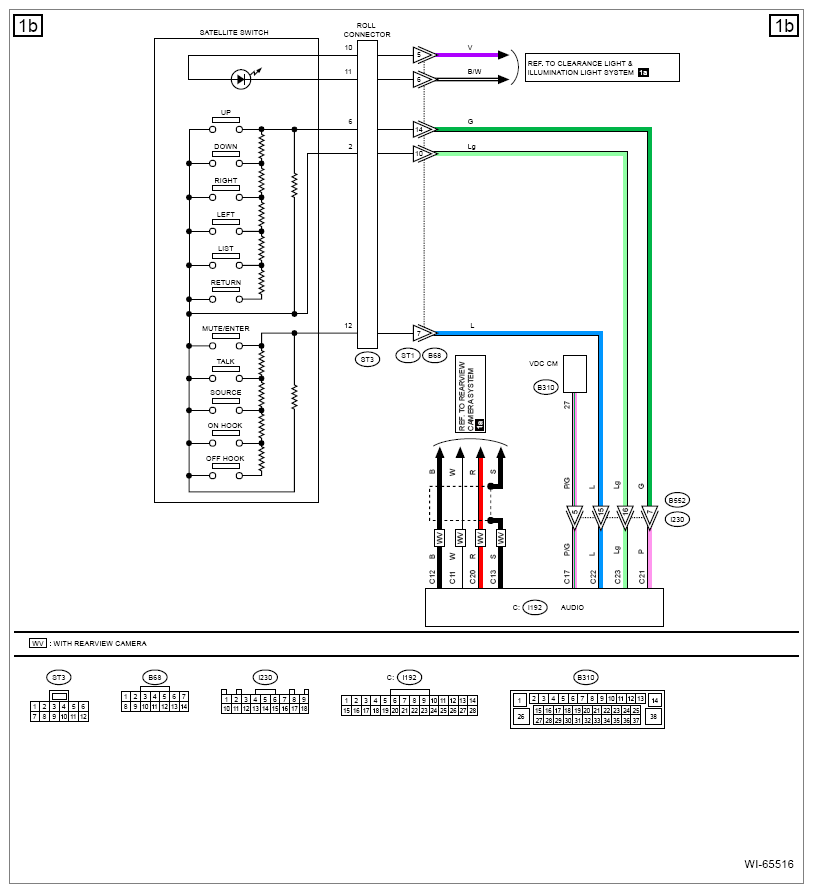

Fig 2: 6.2 Inch Display Audio System Wiring Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

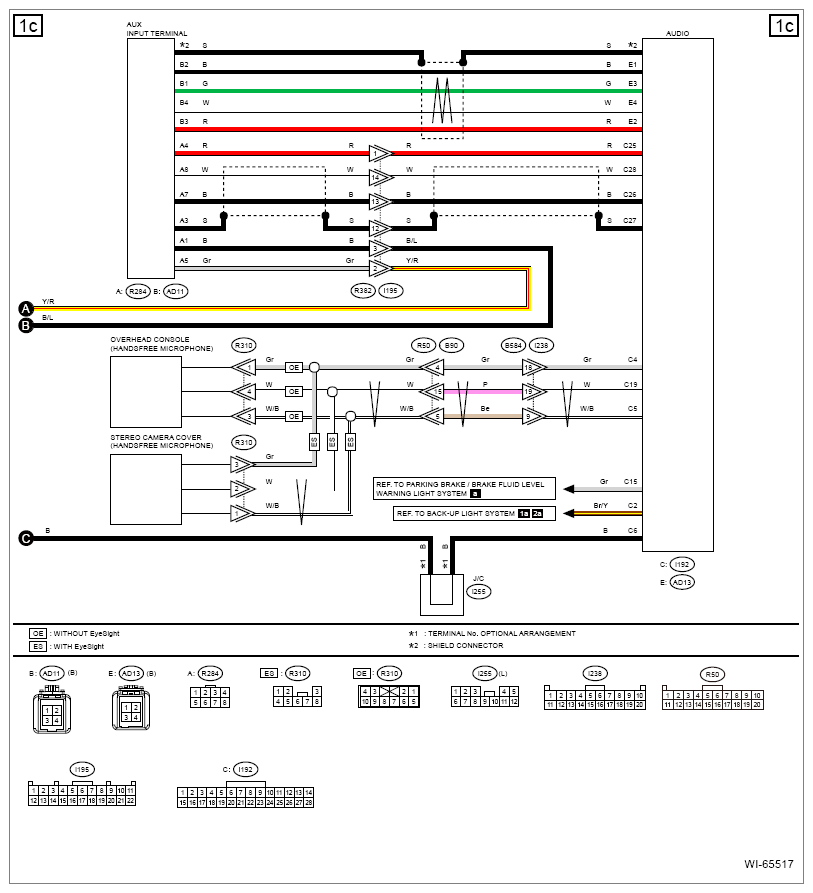

Fig 3: 6.2 Inch Display Audio System Wiring Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

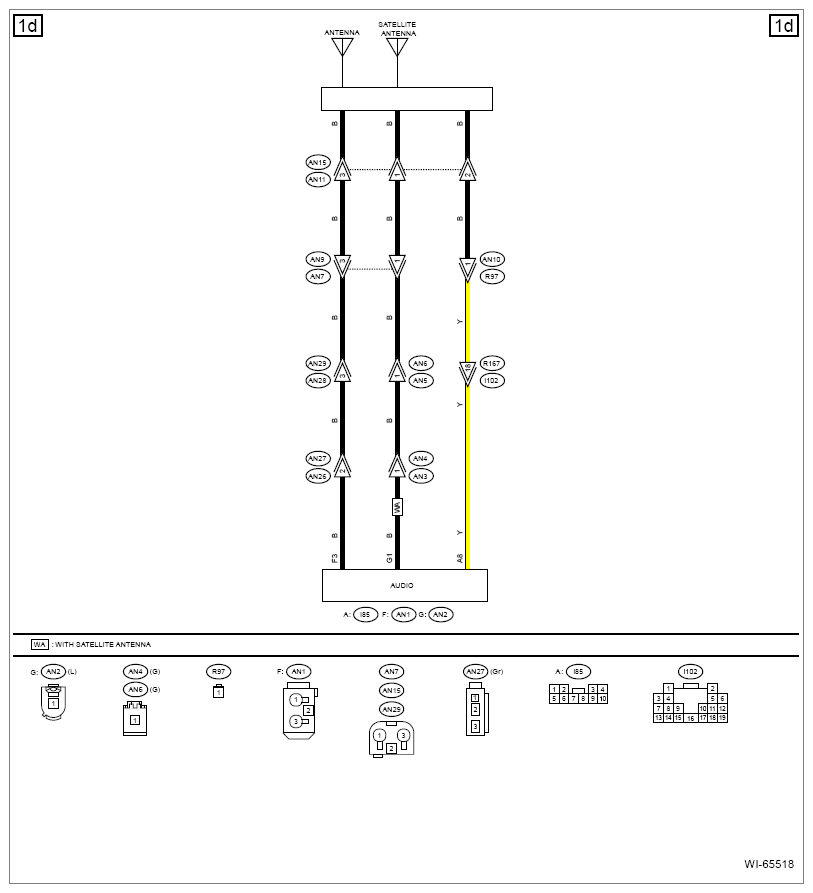

Fig 4: 6.2 Inch Display Audio System Wiring Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
