Turbo Model

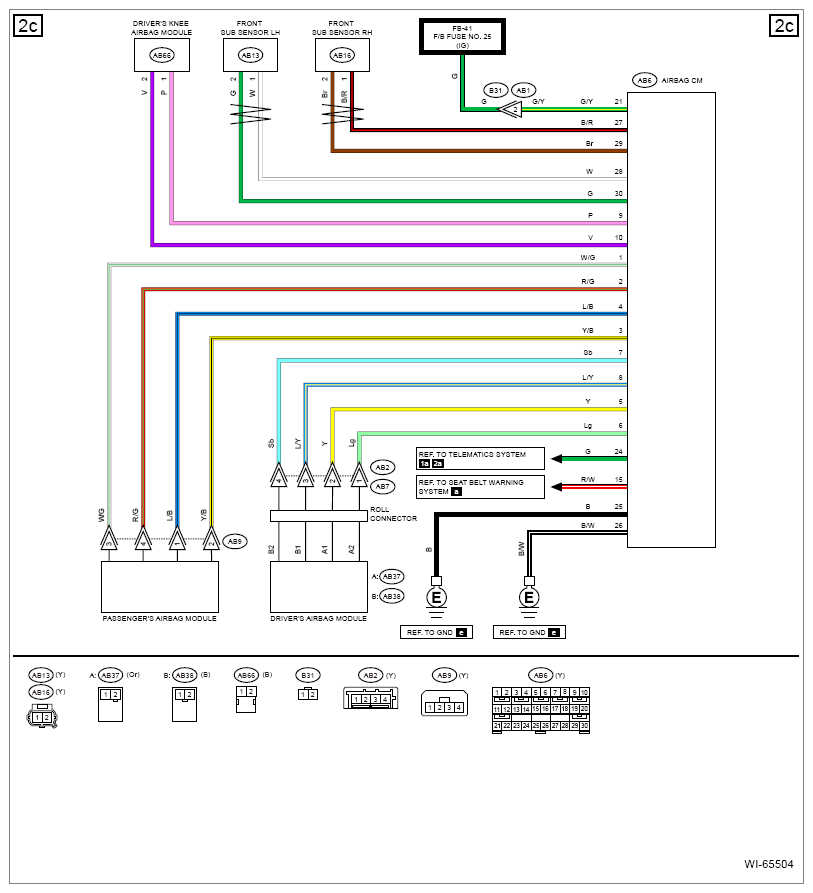

Fig 1: Turbo Model Airbag System Wiring Diagram (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

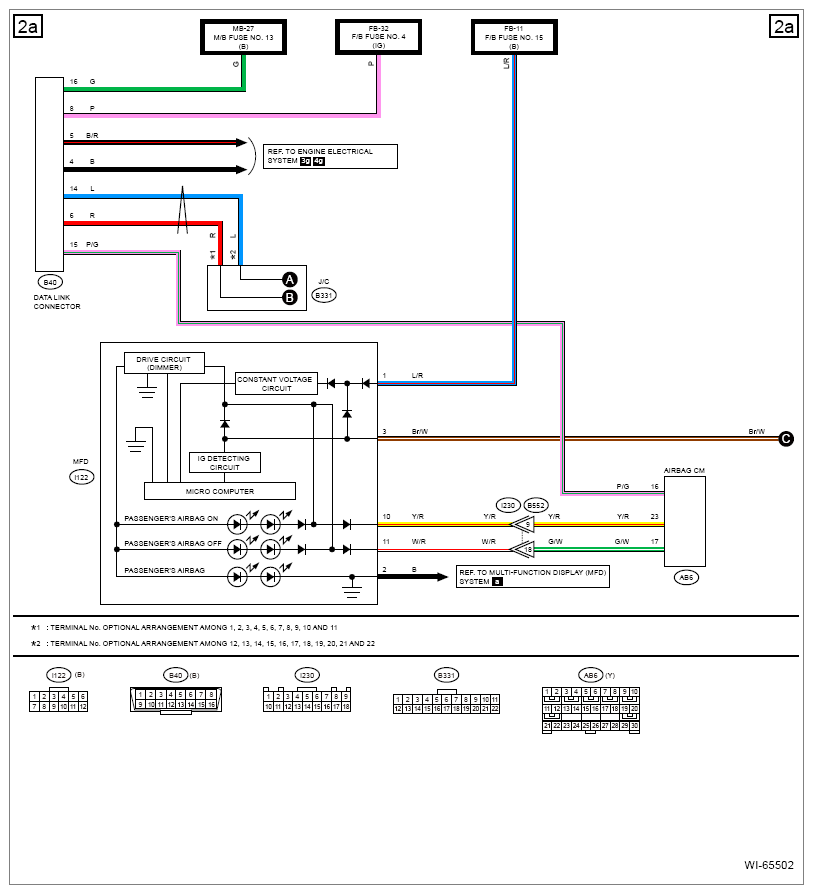

Fig 2: Turbo Model Airbag System Wiring Diagram (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

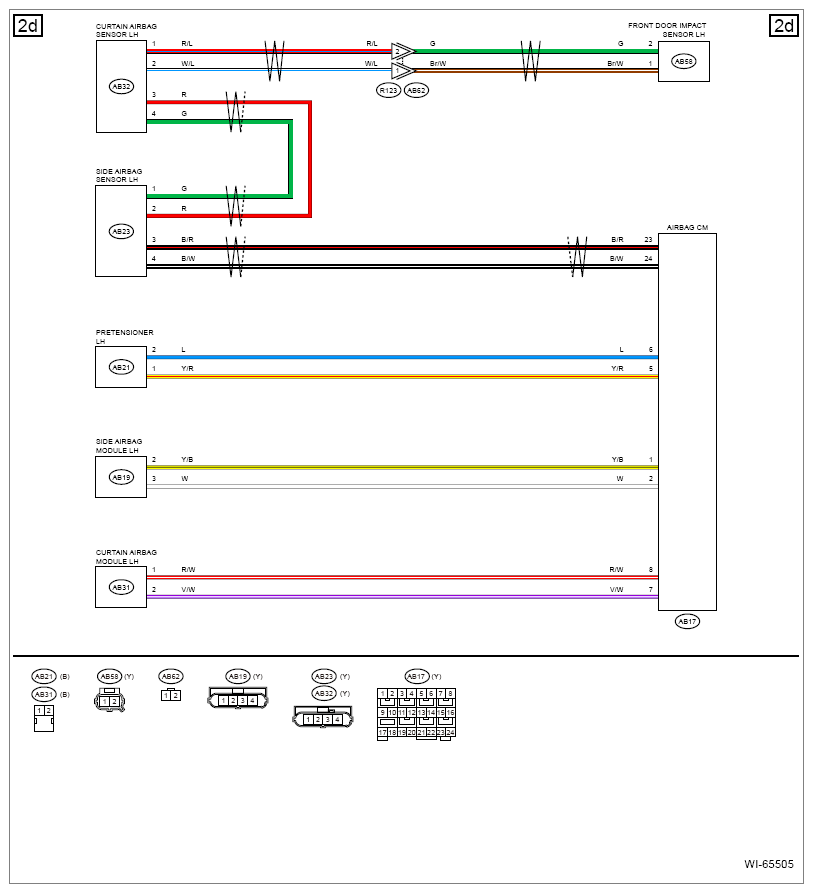

Fig 3: Turbo Model Airbag System Wiring Diagram (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Turbo Model Airbag System Wiring Diagram (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Turbo Model Airbag System Wiring Diagram (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
