OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Airbag System
>>
Wiring Diagram
>>
Non-Turbo Model
Non-Turbo Model

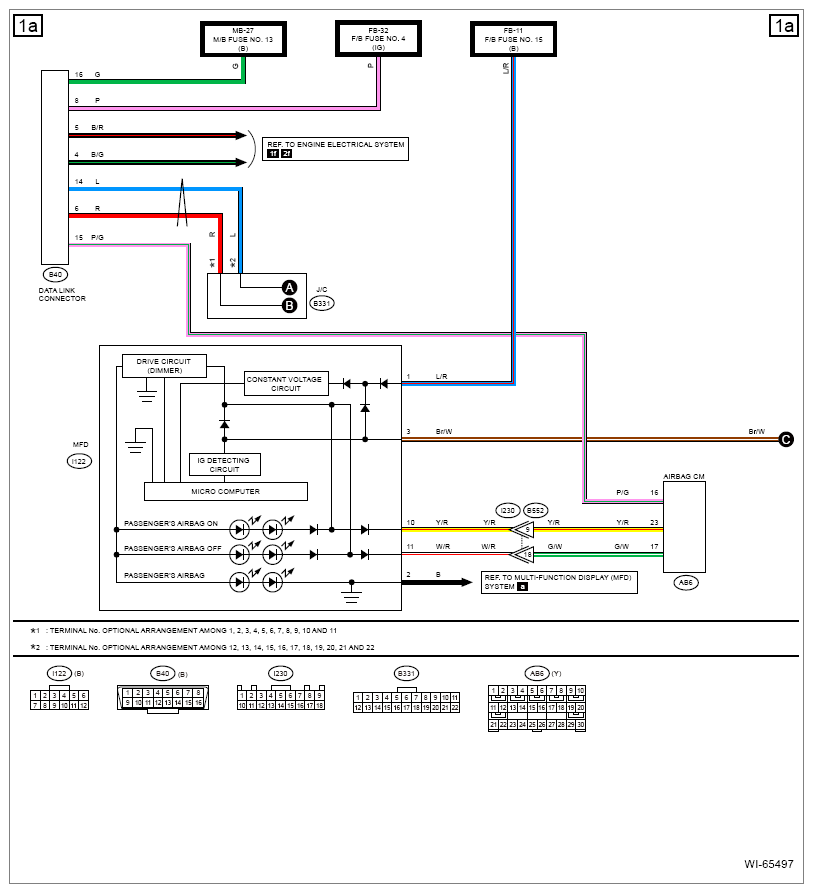

Fig 1: Non Turbo Model Airbag System Wiring Diagram (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

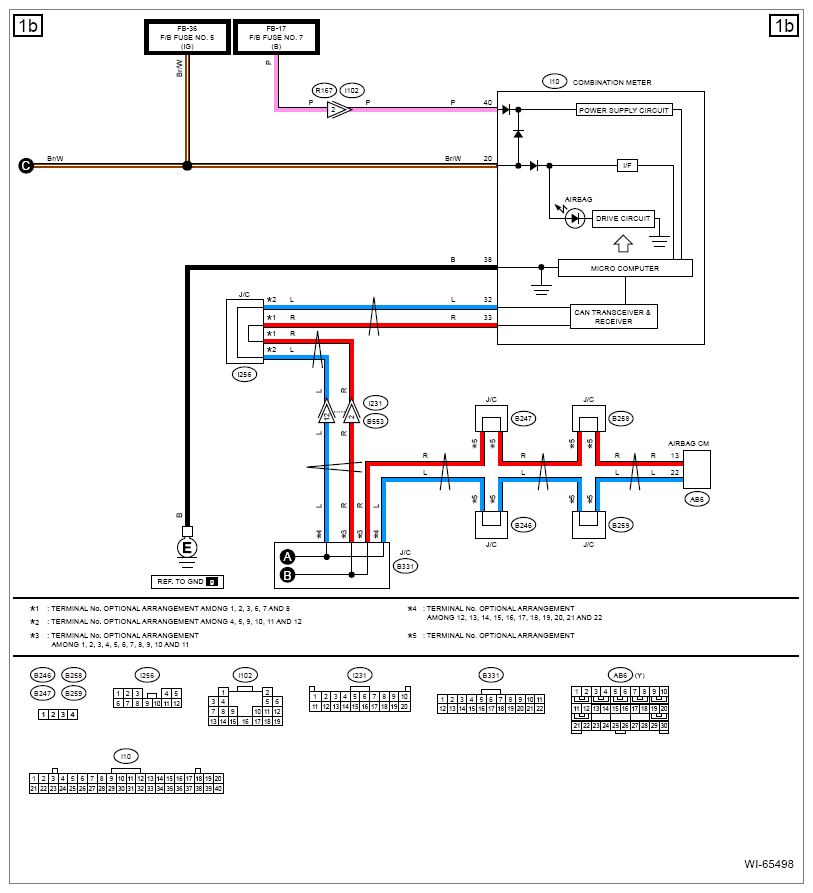

Fig 2: Non Turbo Model Airbag System Wiring Diagram (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

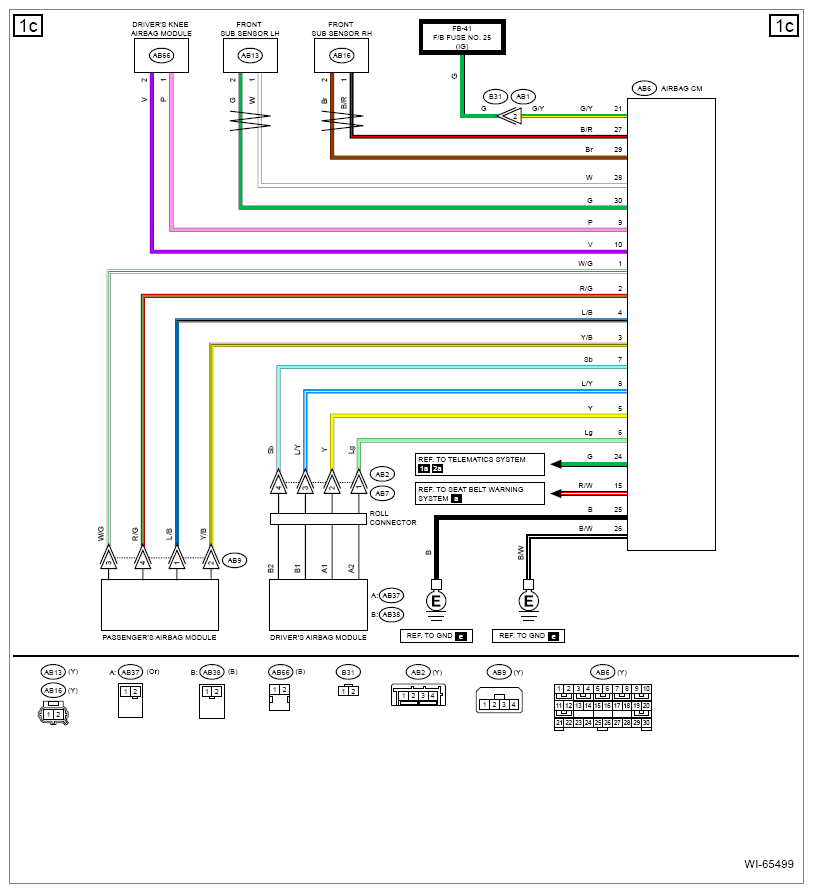

Fig 3: Non Turbo Model Airbag System Wiring Diagram (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

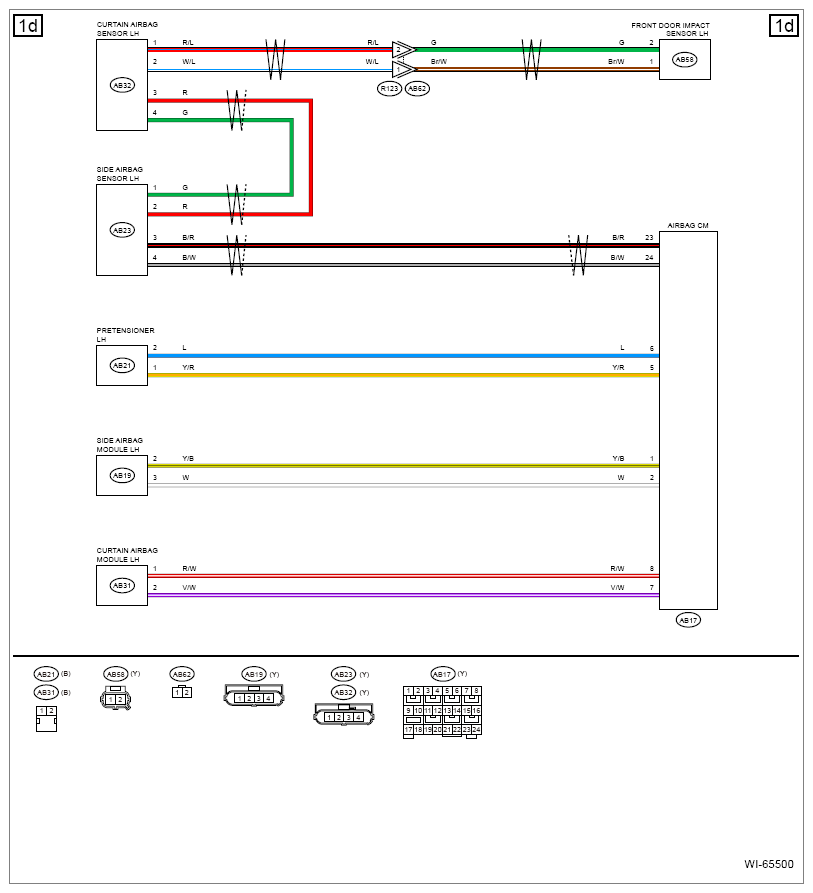

Fig 4: Non Turbo Model Airbag System Wiring Diagram (4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

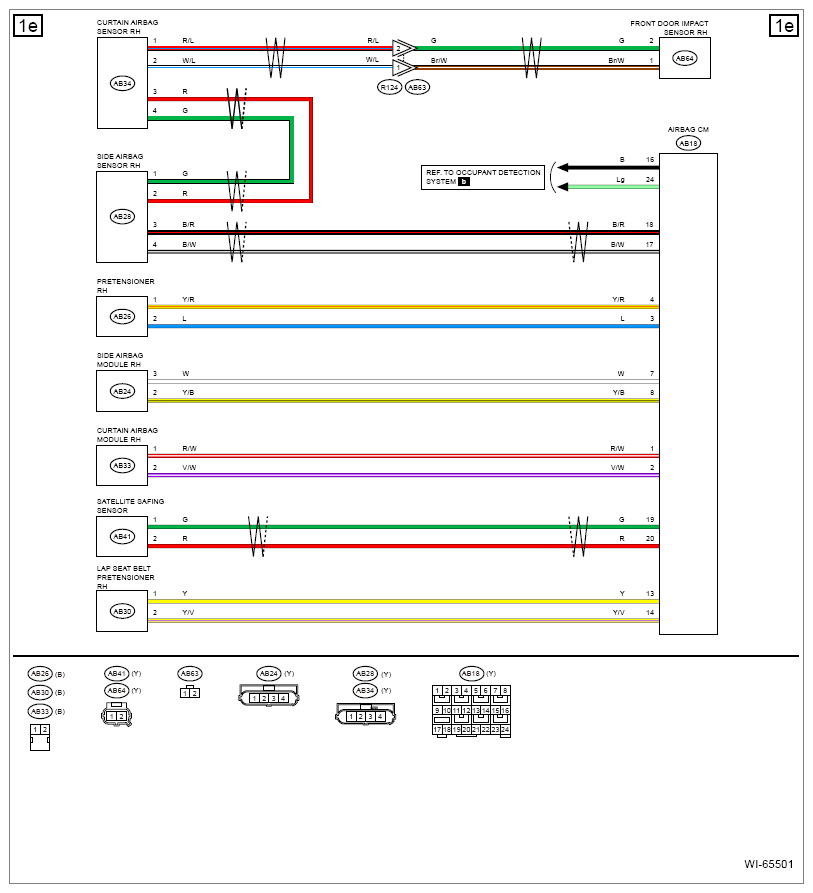

Fig 5: Non Turbo Model Airbag System Wiring Diagram (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
