Forester 2.0XT Touring
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Air Conditioning System
>>
Wiring Diagram
>>
Manual A/C
Manual A/C

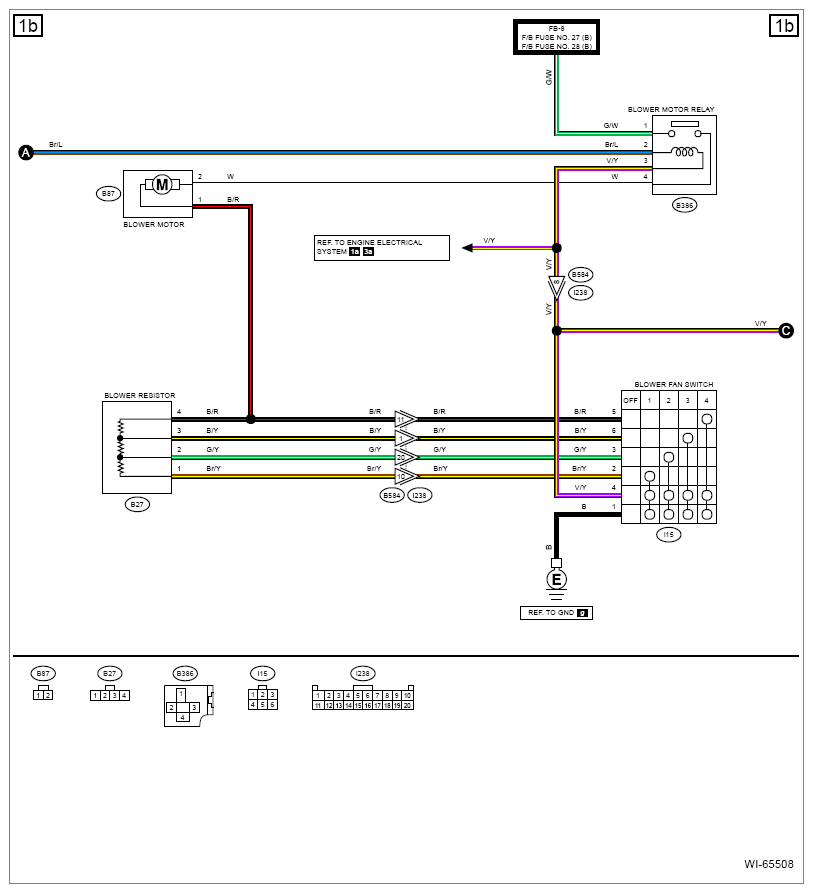

Fig 1: Manual Air Conditioning System Wiring Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

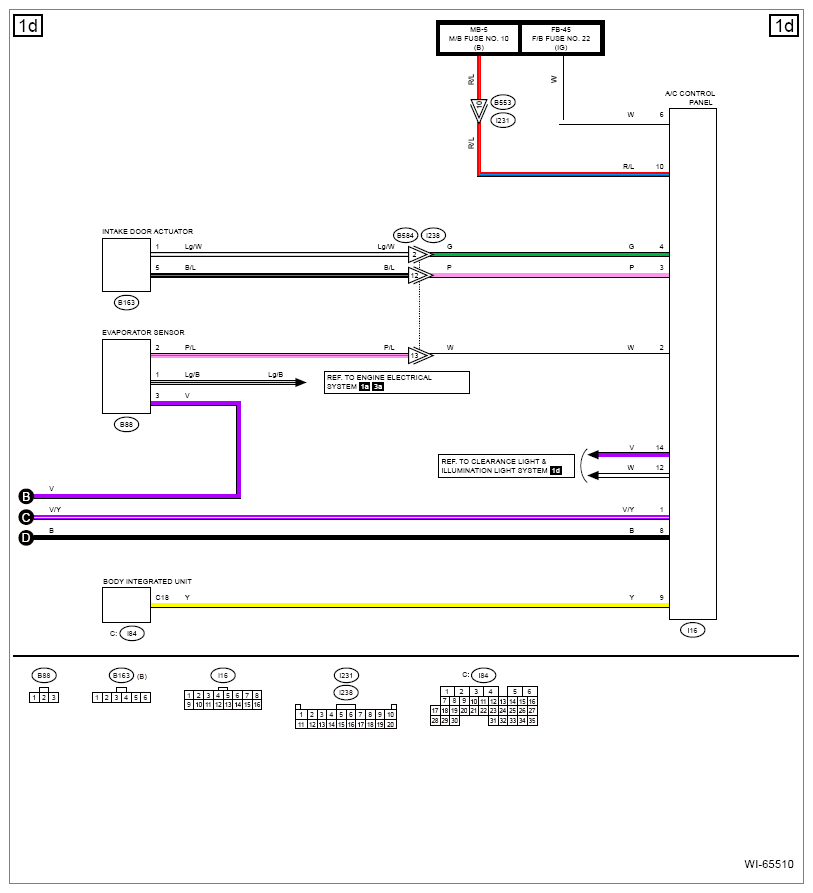

Fig 2: Manual Air Conditioning System Wiring Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Manual Air Conditioning System Wiring Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

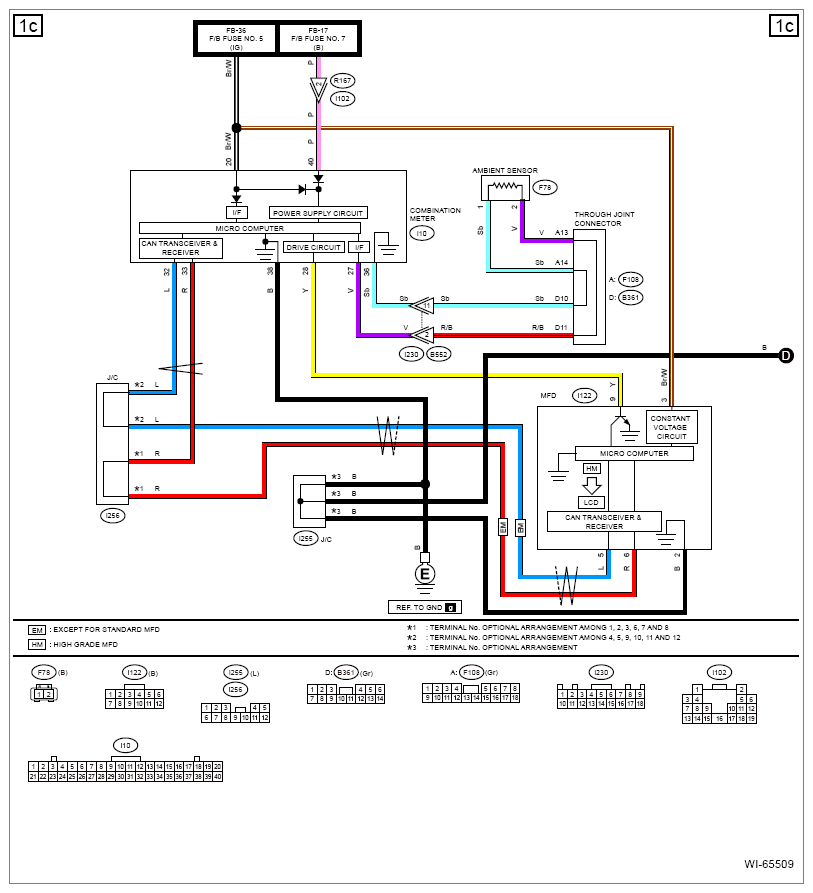

Fig 4: Manual Air Conditioning System Wiring Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
