OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Air Conditioning System
>>
Wiring Diagram
>>
Auto A/C
Auto A/C

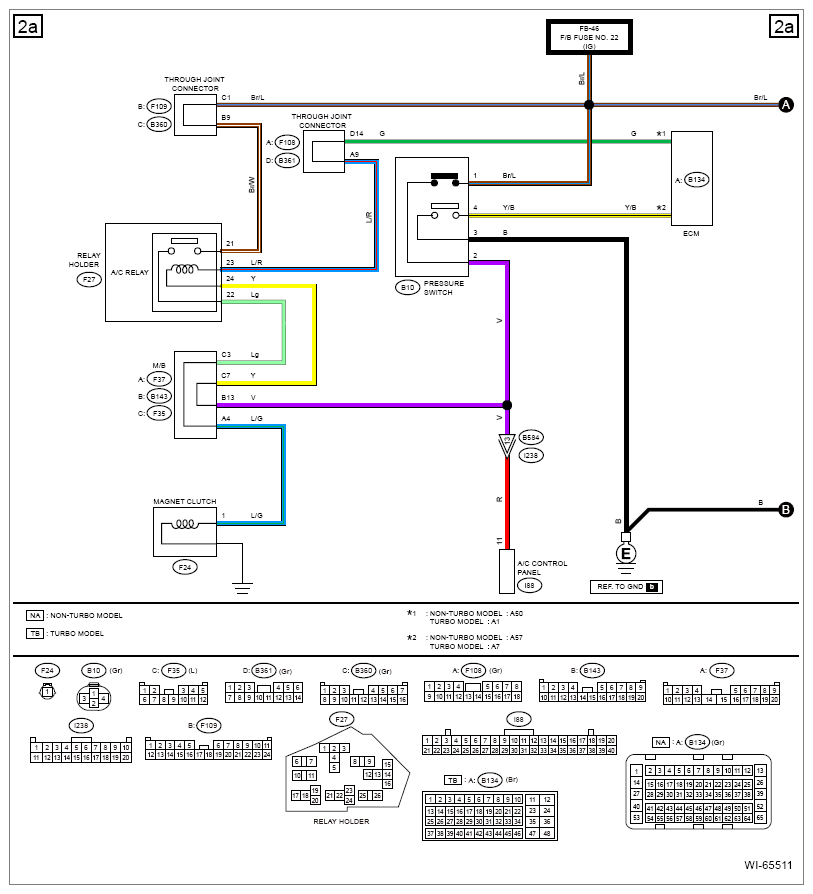

Fig 1: Auto Air Conditioning System Wiring Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

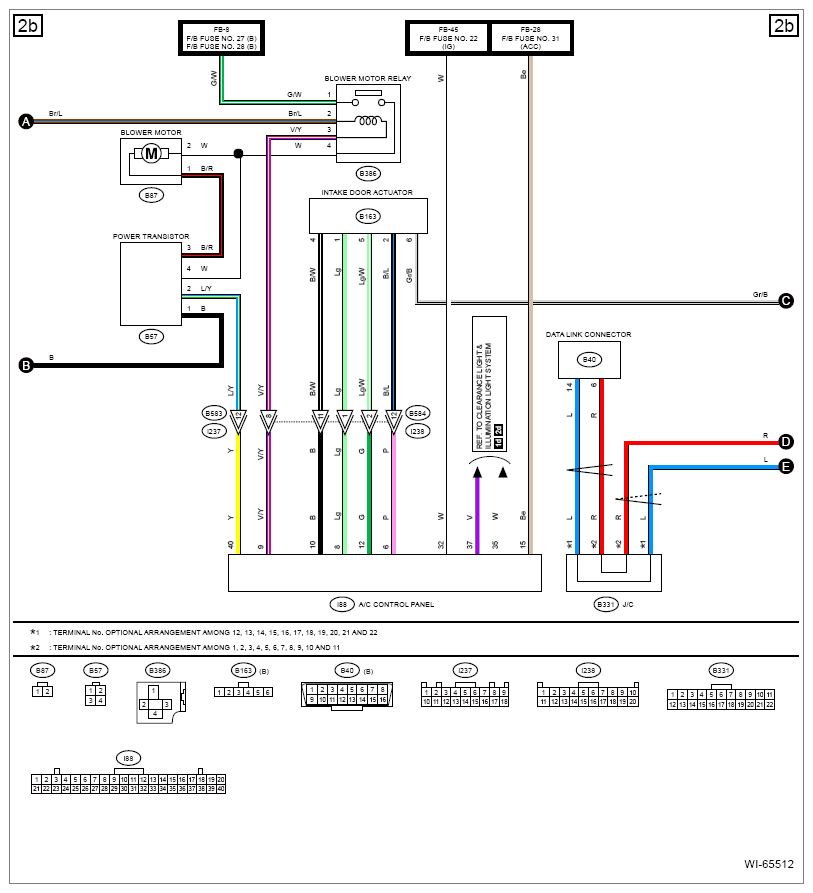

Fig 2: Auto Air Conditioning System Wiring Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

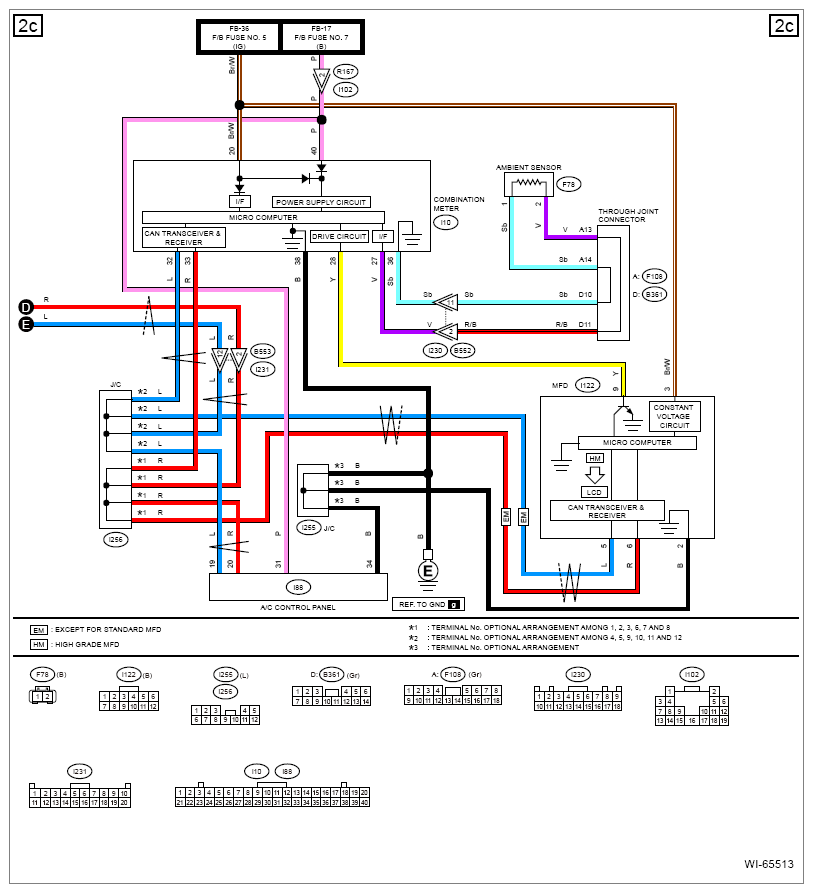

Fig 3: Auto Air Conditioning System Wiring Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

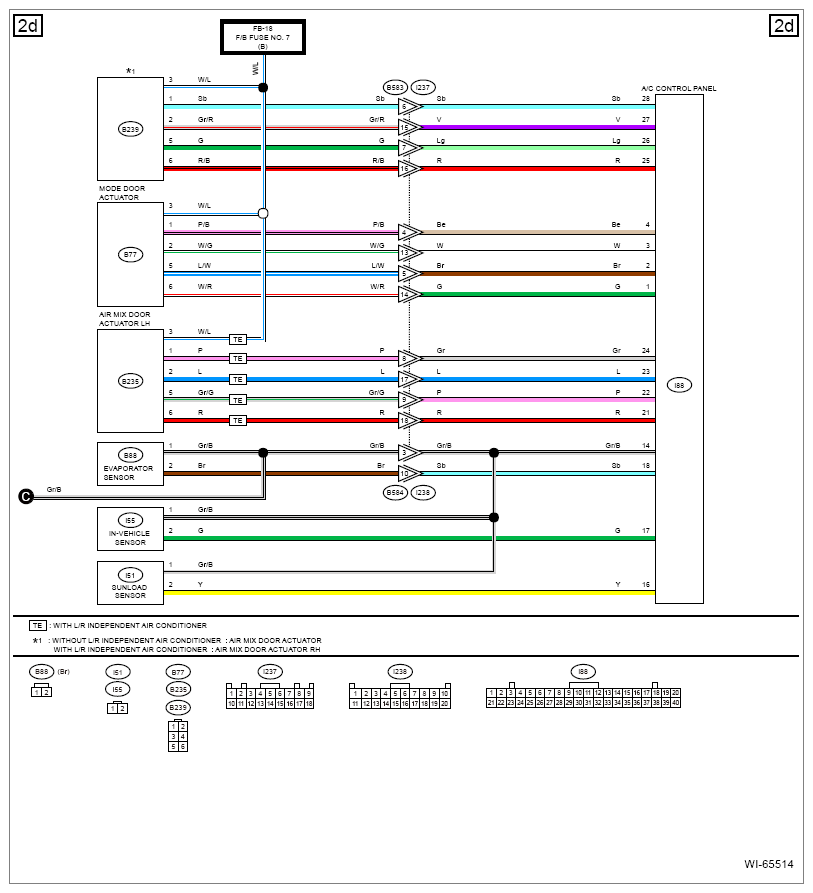

Fig 4: Auto Air Conditioning System Wiring Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
