Subaru Select Monitor: Inspection: Wiring diagram

• Combination meter system Ref. to WIRING SYSTEM>Combination Meter System>WIRING DIAGRAM .
• CAN communication system Ref. to WIRING SYSTEM>CAN Communication System>WIRING DIAGRAM .

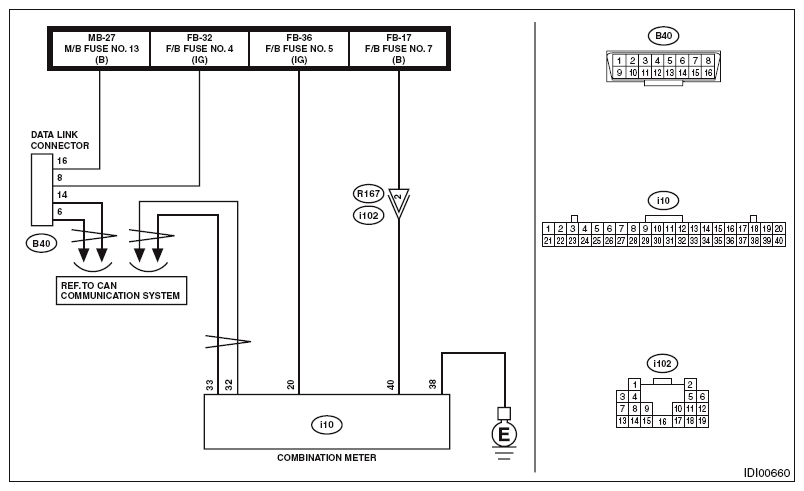

Fig 1: Combination Meter System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

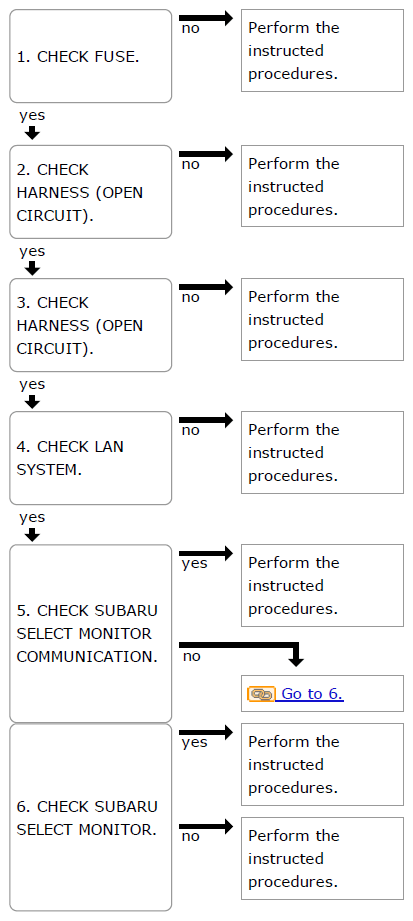

Fig 2: Combination Meter System Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
