Bushing - Trailing Link
- Before assembly, inspect the following items and replace any faulty part with a new one.
- Perform visual check for damage or bend on the trailing link.
- Visually check the bushing for abnormal cracks, fatigue or damage.

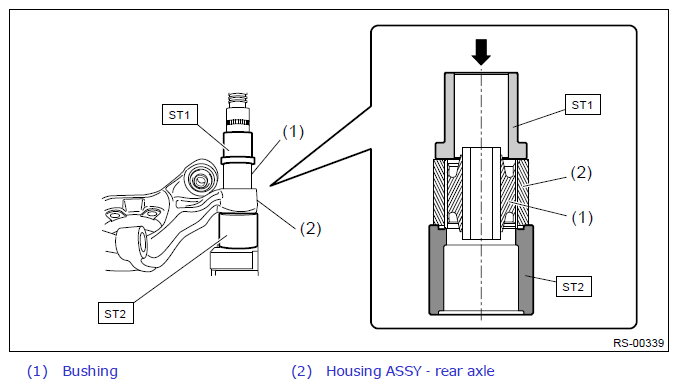

- Press-fit the bushing using ST and the hydraulic press.CAUTION: Make sure to press the bushing straight in.
Preparation tool:
ST1: BUSHING REMOVER (20099FG000)
ST2: INSTALLER & REMOVER (20099PA010)
