Front Drive Shaft Assembly

Model Type of drive shaft Axle diameter ø mm (in) Axle length mm (in)
MT EBJ + PTJ 22 (0.87) 369.4 (14.54)
CVT EBJ + PTJ 22 (0.87) 356 (14.02)

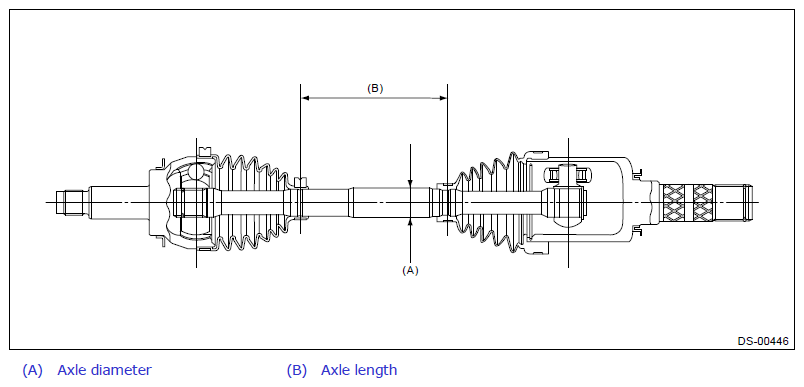

Fig 1: Measuring Front Drive Shaft Assembly Axle Diameter And Length
G11270121Courtesy of SUBARU OF AMERICA, INC.
