Propeller Shaft

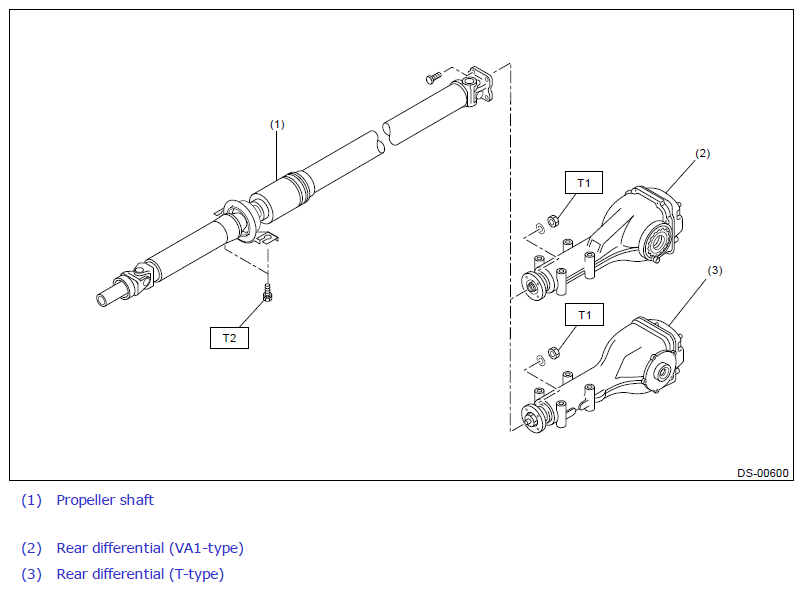

Fig 1: Exploded View Of Propeller Shaft With Torque Specification
G11270123Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 31 (3.16, 22.9)

T2: 52 (5.30, 38.4)
