Front Axle

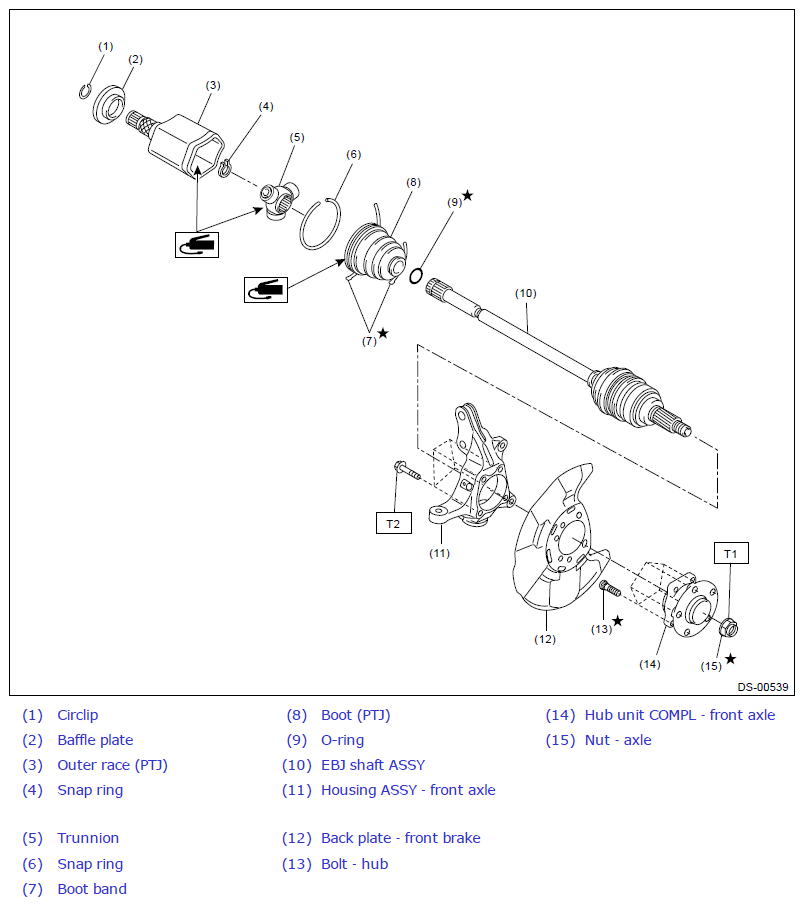

Fig 1: Exploded View Of Front Axle With Torque Specification

G11270124

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 220 (22.43, 162.3)

T2: 65 (6.63, 47.9)
