Rear Differential Mount Bushing: Replacement

CAUTION:
  • Apply the molybdenum grease on the square thread of the ST (shaft and nut) before use.
  • If there was so much rust in the rear differential mount bushing, remove the rust before starting work.
  1. Remove the rear differential. Ref. to DIFFERENTIALS>Rear Differential (T-type)>REMOVAL . Ref. to DIFFERENTIALS>Rear Differential (VA-type)>REMOVAL .
  2. Fit the ST to the periphery of the sub frame cylinder, and make sure that the ST does not contact with welded spots or spatters.

    ST 41399FG010 SPECIAL TOOL A

    Fig 1: Installing Special Tool Onto Sub Frame Assembly Periphery
    G11270108Courtesy of SUBARU OF AMERICA, INC.
  3. If the ST contacts with welded spots or spatters, remove the excessive welds or spatters with sander or the equivalent so that the ST contacts the cylinder peripheral part.
    CAUTION: Performing the operation with the ST contacting with welded spots or spatters may break the ST. Be sure to remove excessive welds or spatters before the operation.
  4. Set ST1, ST2, ST3, ST4 and ST5 as shown in the figure.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    ST3 41399FG050 SPECIAL TOOL SLEEVE

    ST4 41399FG080 SPECIAL TOOL BEARING

    ST5 41399FG010 SPECIAL TOOL A

    Fig 2: Installing Special Tools Onto Rear Differential Mount Bushing
    G11270109Courtesy of SUBARU OF AMERICA, INC.
  5. Fit and hold the ST1 and ST2 to the rear differential mount bushing from the rear side of vehicle.

    ST1 41399FG031 SPECIAL TOOL C

    ST2 41399FG061 SPECIAL TOOL RING

    Fig 3: Installing Special Tools Onto Rear Differential Mount Bushing
    G11270110Courtesy of SUBARU OF AMERICA, INC.
  6. Insert the ST set in the step 4) through the rear differential mount bushing hole from the front side of vehicle, and screw in the ST1 by hand till the front end of ST1 comes out slightly from the rear end of ST2.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG061 SPECIAL TOOL RING

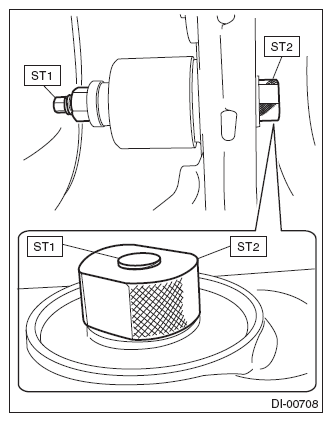

    Fig 4: Installing Special Tool Through Rear Differential Mount Bushing Hole
    G08318624Courtesy of SUBARU OF AMERICA, INC.
  7. Hold the ST1 to prevent it from rotating, and screw in the ST3 by hand till there is no loose fit on the ST2.
    CAUTION: When setting the ST to the vehicle, always make sure that the ST2 fits the periphery of the sub frame cylinder and is not tilted.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG010 SPECIAL TOOL A

    ST3 41399FG070 SPECIAL TOOL NUT

    Fig 5: Installing Special Tools
    G07666269Courtesy of SUBARU OF AMERICA, INC.
  8. Hold the ST1 with a tool to prevent it from rotating, and screw in the ST2 to remove the rear differential mount bushing.
    CAUTION:
    • Rotation of ST1 will damage the screw at the rear end of rear differential mount bushing. Never rotate the ST1.
    • If the ST starts to tilt while removing the rear differential mount bushing, stop the work and set the ST.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    Fig 6: Removing Rear Differential Mount Bushing Using Special Tool
    G07666270Courtesy of SUBARU OF AMERICA, INC.
  9. Set ST1, ST2, ST3, ST4, ST5 and rear differential mount bushing as shown in the figure.
    NOTE:
    • Set the ST2 nut near to the end of ST1 screw.
    • Hold the rear differential mount bushing with the arrow marked side facing toward the rear of the vehicle, and set the rear differential mount bushing to the ST so that the arrow mark faces upward.
    • Mark the bottom end of rear differential mount bushing to identify the installing direction.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    ST3 41399FG050 SPECIAL TOOL SLEEVE

    ST4 41399FG080 SPECIAL TOOL BEARING

    ST5 41399FG020 SPECIAL TOOL B

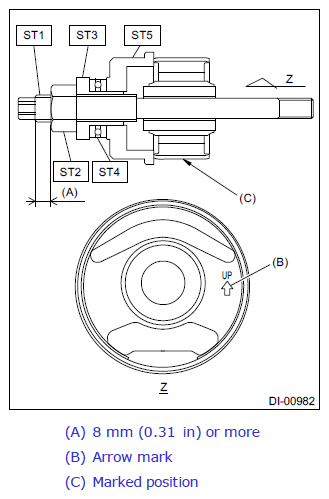

    Fig 7: Identifying Rear Differential Mount Bushing Installation Direction Mark
    G11270114Courtesy of SUBARU OF AMERICA, INC.
  10. Attach ST1 to the ST2, and fit and hold the STs as a unit to the sub frame from the rear side of vehicle.

    ST1 41399FG061 SPECIAL TOOL RING

    ST2 41399FG041 SPECIAL TOOL D

    Fig 8: Holding Special Tools With Sub Frame From Vehicle Rear
    G07666272Courtesy of SUBARU OF AMERICA, INC.
  11. Insert the ST and rear differential mount bushing set in the step 9) through the sub frame from the front side of vehicle, and screw in the ST1 by hand till the front end of ST1 comes out slightly from the rear end of ST2.
    CAUTION: Set the rear differential mount bushing with its mark facing the bottom end direction.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG061 SPECIAL TOOL RING

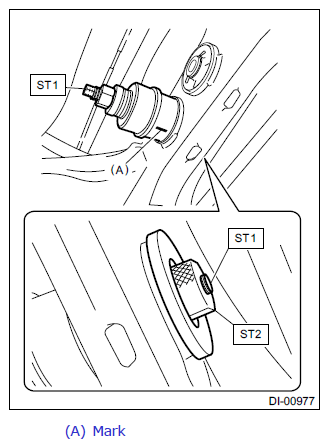

    Fig 9: Inserting Special Tool And Rear Differential Mount Bushing Set Through Sub Frame Assembly
    G11270116Courtesy of SUBARU OF AMERICA, INC.
  12. Hold the ST1 to prevent it from rotating, and screw in the ST2 by hand till there is no loose fit on the ST and the rear differential mount bushing.
    CAUTION: Make sure that the ST and rear differential mount bushing are not tilted.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    Fig 10: Installing Special Tool
    G07666274Courtesy of SUBARU OF AMERICA, INC.
  13. Screw in the ST2 while holding the ST1 with a tool to prevent it from rotating, and press-fit the rear differential mount bushing to the front end of sub frame cylinder.

    ST1 41399FG091 SPECIAL TOOL SHAFT

    ST2 41399FG070 SPECIAL TOOL NUT

    Fig 11: Installing Rear Differential Mount Bushing With Sub Frame Cylinder Front End Using Special Tools
    G07666275Courtesy of SUBARU OF AMERICA, INC.
  14. Make sure that the rear differential mount bushing is inserted to the front end of sub frame cylinder.
    Fig 12: Identifying Sub Frame Cylinder Front End
    G11270119Courtesy of SUBARU OF AMERICA, INC.
  15. Install the rear differential. Ref. to DIFFERENTIALS>Rear Differential (T-type)>INSTALLATION . Ref. to DIFFERENTIALS>Rear Differential (VA-type)>INSTALLATION .
