Rear Differential Mounting System

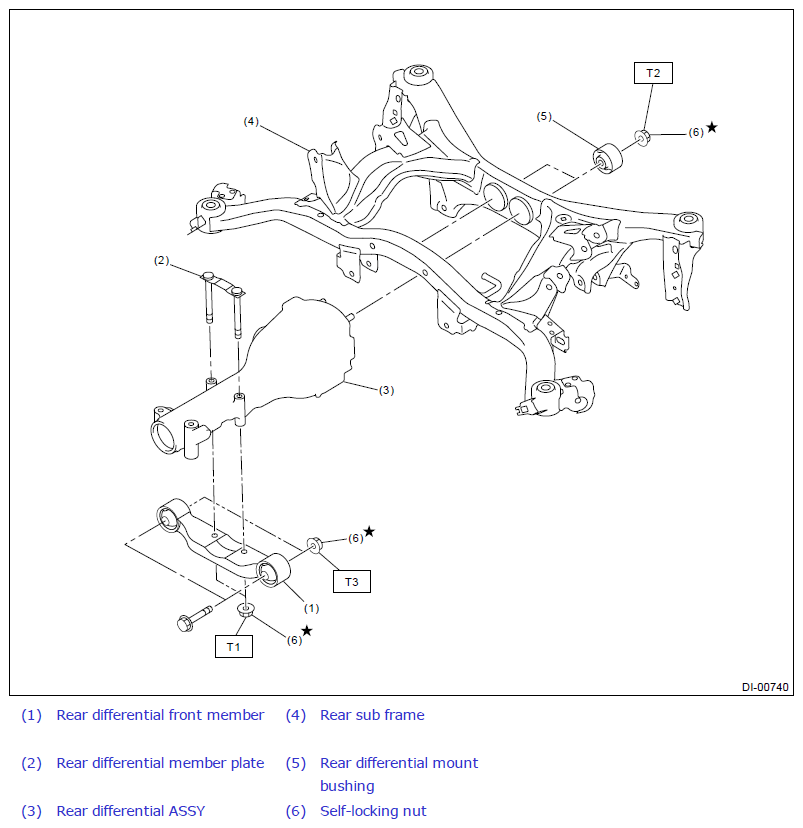

Fig 1: Identifying Rear Differential Mounting System Components With Torque Specifications
G11269882Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 50 (5.1, 36.9)

T2: 70 (7.1, 51.6)

T3: 110 (11.2, 81.1)
