Yaw Rate and G Sensor: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the console box. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  3. Disconnect the connector from yaw rate & G sensor.
  4. Remove the nut and remove the yaw rate & G sensor.
    CAUTION: Do not drop or hit the yaw rate & G sensor.

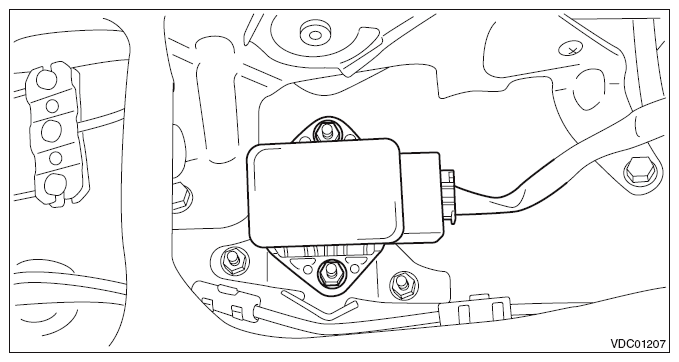

Fig 1: Identifying Yaw Rate And G Sensor
G09483429Courtesy of SUBARU OF AMERICA, INC.
