Parking Brake Lever & Cable

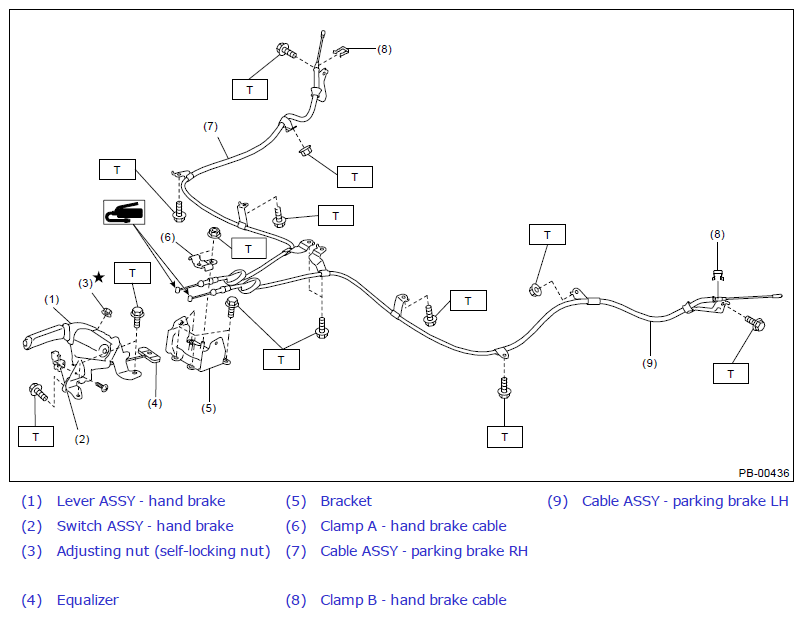

Fig 1: Exploded View Of Parking Brake Lever And Cable With Torque Specification

G11270391

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.84, 13.3)
