General Description
>>
Components With Torque Specifications
>>
Parking Brake (Rear Disc Brake)
Parking Brake (Rear Disc Brake)

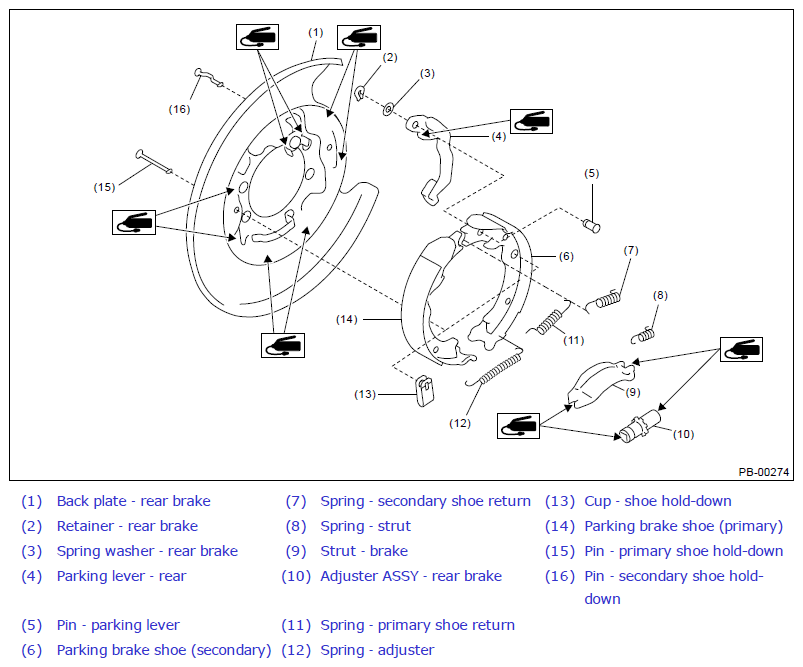

Fig 1: Exploded View Of Parking Brake With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
