Rear Brake Pad: Removal

Lift up the vehicle, and then remove the rear wheels.
Remove the rear brake pad.
1. Remove the bolts and remove the brake hose bracket.
2. Remove the caliper bolt, and raise and hold the caliper body assembly.

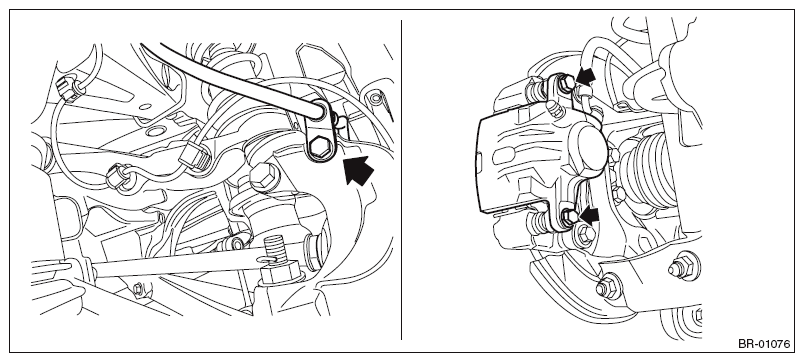

  Fig 1: Locating Brake Hose Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: Do not disconnect the brake hose from the caliper body assembly.
3. Remove the brake pad from support - rear disc brake.

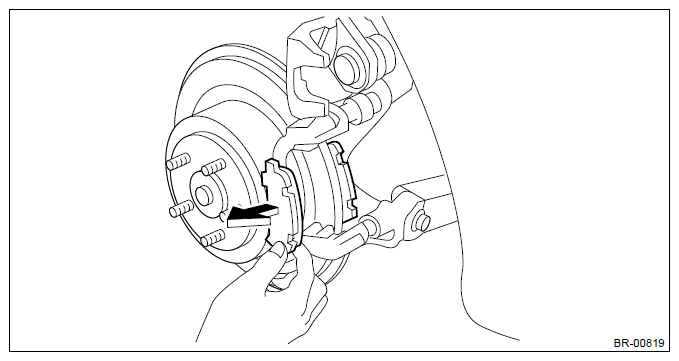

Fig 2: Removing Brake Pad From Support - Rear Disc Brake

G11270330

Courtesy of SUBARU OF AMERICA, INC.
