Master Cylinder: Disassembly

  1. Remove the reservoir tank.
    CAUTION: Be careful not to tighten a vise excessively.
    1. Place the master cylinder assembly between aluminum plates and fix it on a vise.
    2. Drive out the pin using a punch and a hammer to remove the reservoir tank.

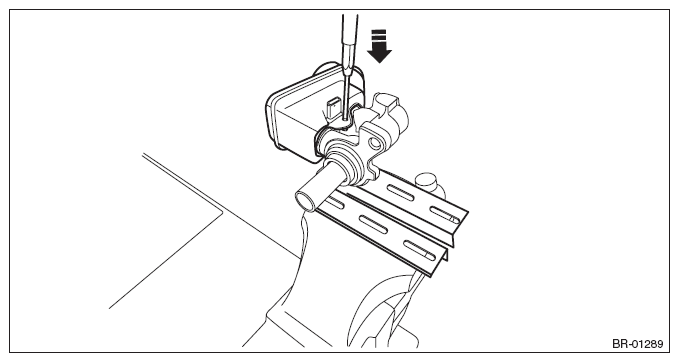

    Fig 1: Placing Master Cylinder Assembly Between Aluminum Plates And On Vise
    G10270001Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the seal from the cylinder body assembly.
