Master Cylinder

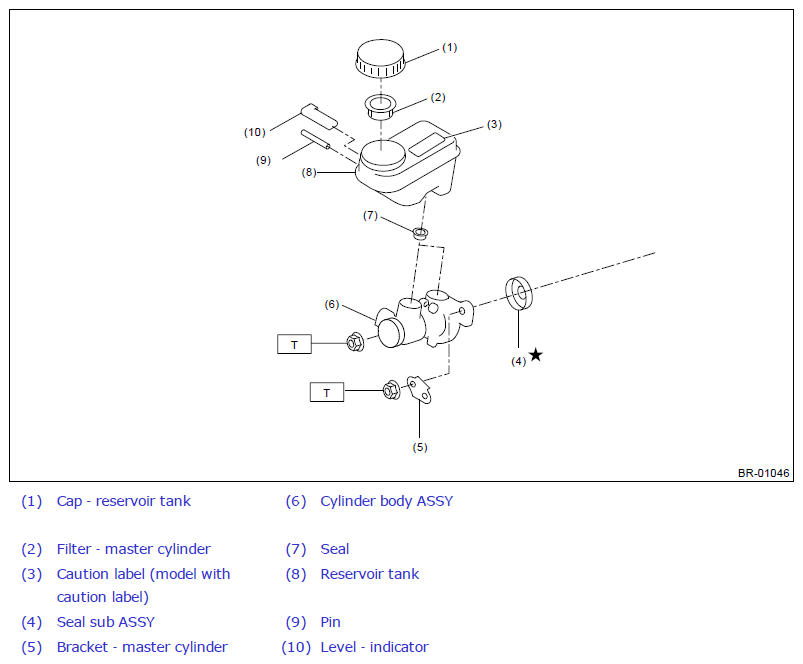

Fig 1: Exploded View Of Master Cylinder With Torque Specification
G11270297Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 13 (1.33, 9.6)
