Front Brake Pipes And Hoses

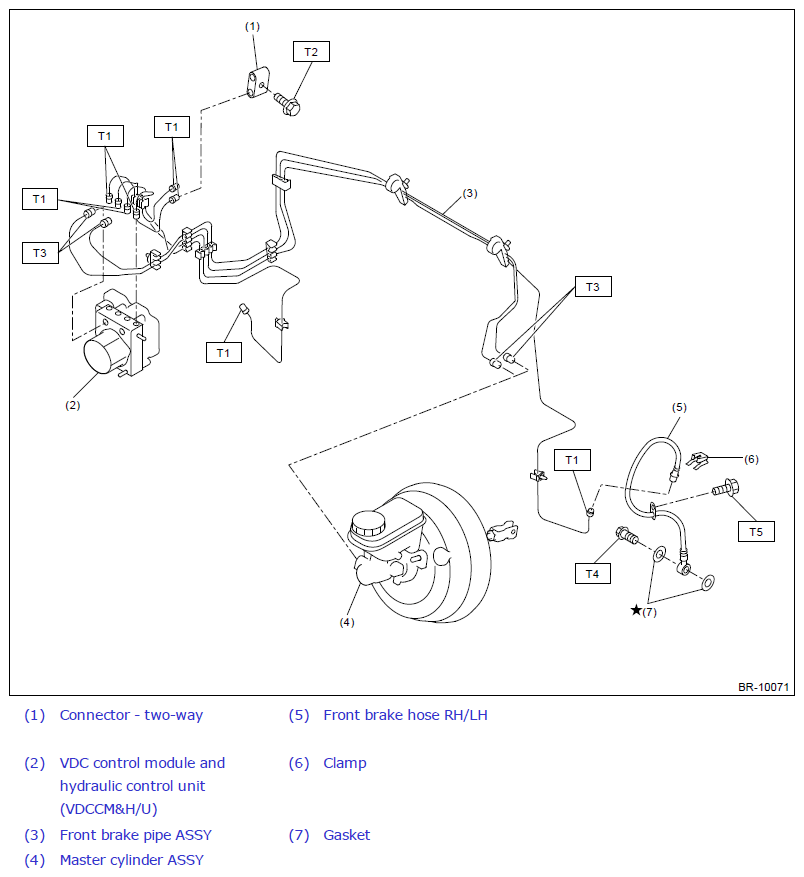

Fig 1: Exploded View Of Front Brake Pipes And Hoses With Torque Specification (Models Without Eyesight)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.53, 11.1)

T2: 18 (1.84, 13.3)

T3: 19 (1.94, 14)

T4: 26 (2.65, 19.2)

T5: 33 (3.36, 24.3)

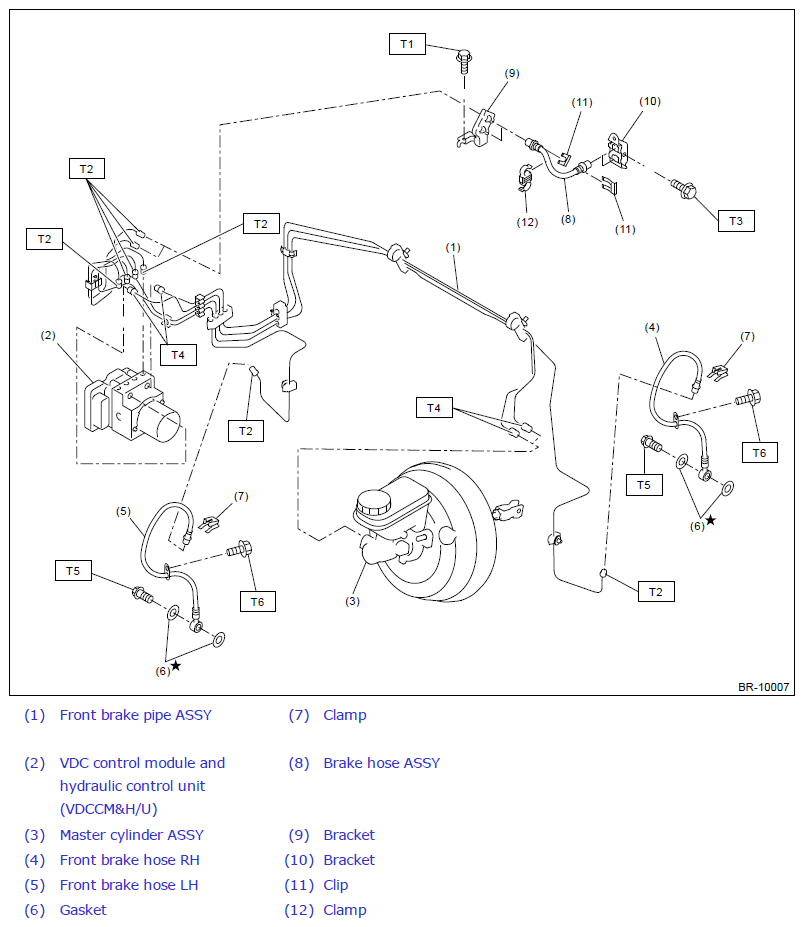

Fig 2: Exploded View Of Front Brake Pipes And Hoses With Torque Specification (Models With Eyesight)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 15 (1.53, 11.1)

T3: 18 (1.84, 13.3)

T4: 19 (1.94, 14)

T5: 26 (2.65, 19.2)

T6: 33 (3.36, 24.3)
