Brake Vacuum Pump

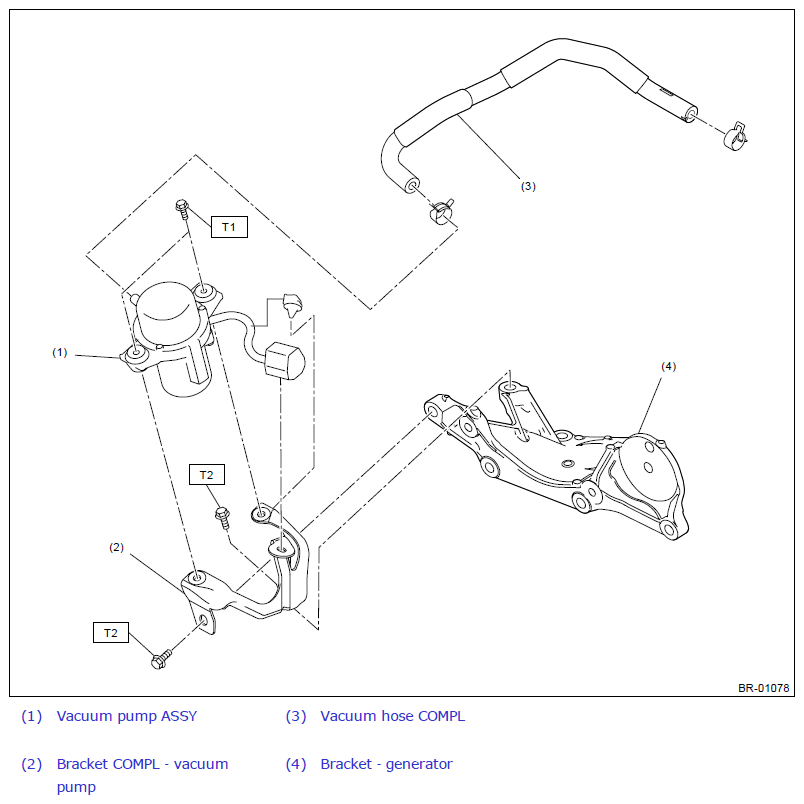

Fig 1: Exploded View Of Brake Vacuum Pump With Torque Specification

G11270304

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.65, 4.7)

T2: 19 (1.9, 14)
