General Description
>>
Components With Torque Specifications
>>
Brake Booster
Brake Booster

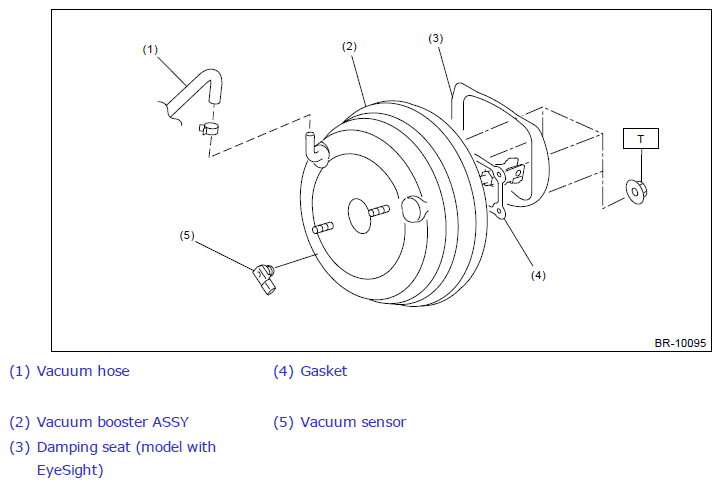

Fig 1: Exploded View Of Brake Booster With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 18 (1.84, 13.3)
Courtesy of SUBARU OF AMERICA, INC.
