Rear Brake Hose

  1. Remove the brake hose bracket bolt and union bolt.
    Fig 1: Locating Brake Hose Bracket Bolt
    G09483330Courtesy of SUBARU OF AMERICA, INC.
  2. Press and separate the brake pipe (a) using a flare nut wrench.
  3. Remove the brake hose clamp (b), and remove the rear brake hose (c).

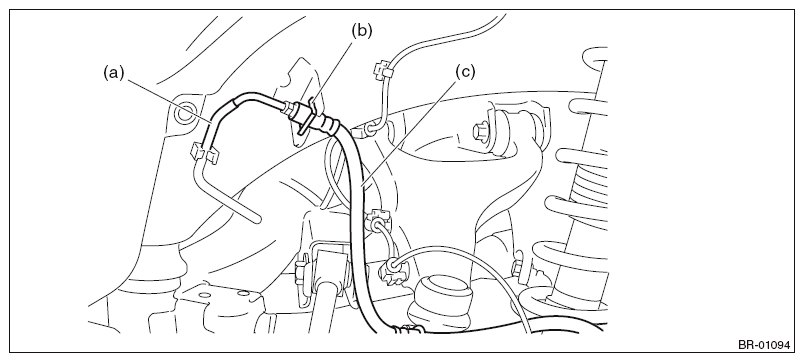

Fig 2: Identifying Brake Pipe, Hose Clamp And Rear Brake Hose
G09483566Courtesy of SUBARU OF AMERICA, INC.
