Brake Control System (Diagnostics): Electrical Component Location: Location

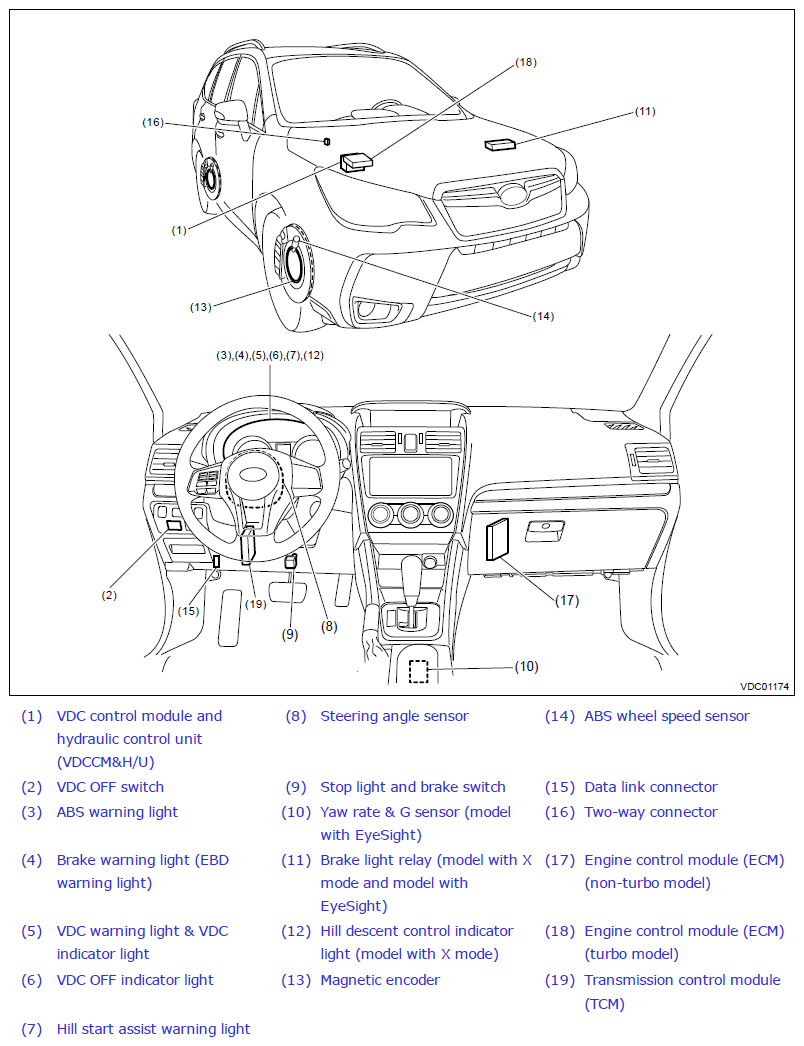

Fig 1: Brake Control Electrical Components Location

Courtesy of SUBARU OF AMERICA, INC.

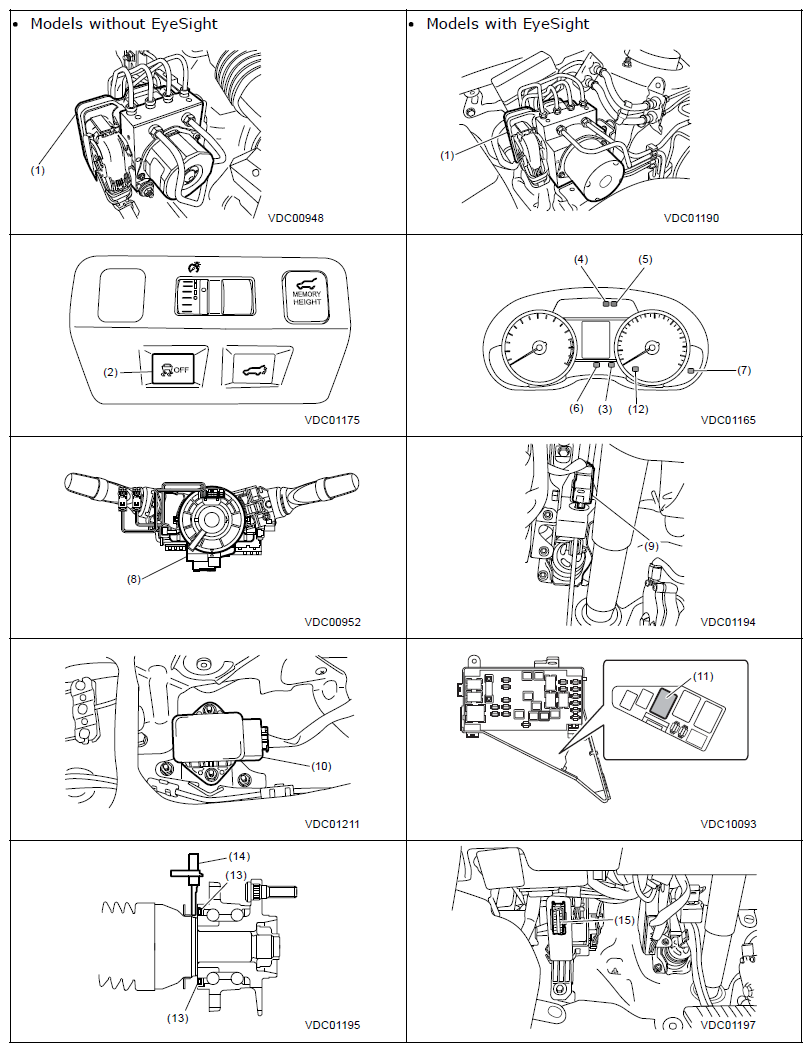

Fig 2: Brake Control Electrical Components Location (Models With And Without Eyesight)

Courtesy of SUBARU OF AMERICA, INC.
