Rearview Mirror: Removal

CAUTION:
  • Be careful not to damage the mirror surface and the glass - front window.
  • Do not remove the base - inner mirror from the glass - front window.
  1. Release the claws, and then remove the cover.
    Fig 1: Releasing Cover Claws
    G08315162Courtesy of SUBARU OF AMERICA, INC.

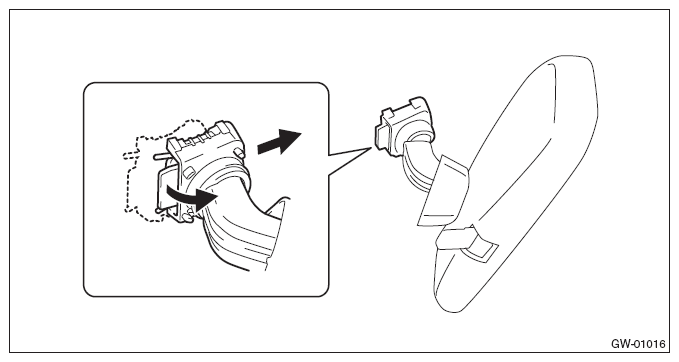

  2. Release the lock lever, and slide the mirror assembly - inner rearview to remove.
    Fig 2: Releasing Lock Lever
    G08315163Courtesy of SUBARU OF AMERICA, INC.
  3. Replace the glass - front window if the base - inner mirror is damaged.
